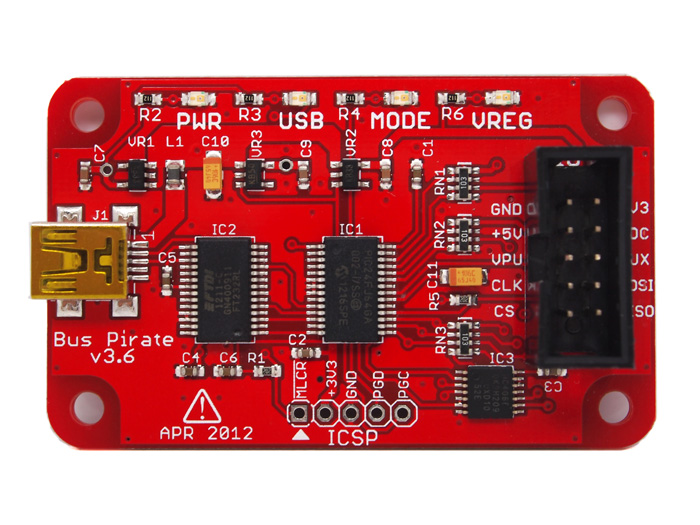

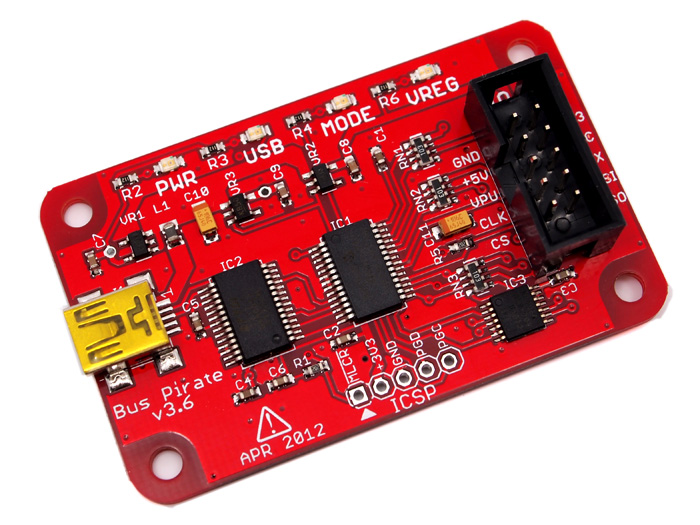

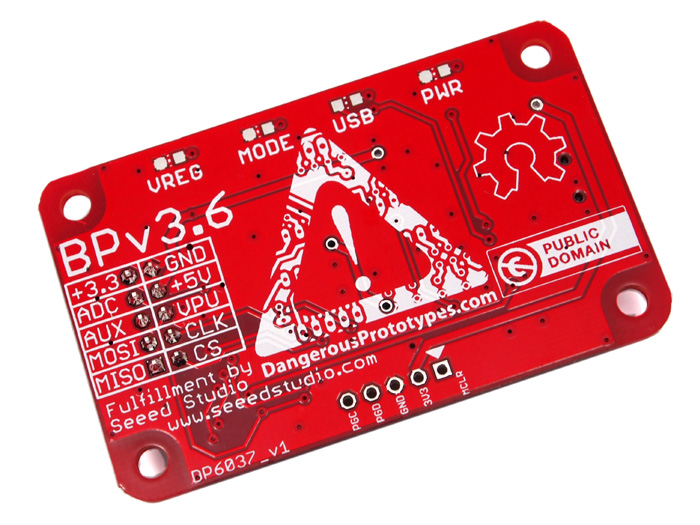

Bus Pirate v3.6 universal serial interface

SKU: 102990038
Ship to:
  • Out Of Stock
Bus Pirate v3 is a universal bus interface that talks to electronics from a PC serial terminal. Get to know a chip without writing code. Eliminates a ton of early prototyping effort with new or unknown chips. A laser cut acrylic case for Bus Pirate v3.6 is also available.
1-Wire, I2C, SPI, JTAG, asynchronous serial (UART), MIDI, PC keyboard, HD44780 LCDs, and generic 2- and 3-wire libraries for custom protocols.
  • USB interface, USB powered
  • 5volt tolerant pins
  • 0-6volt measurement probe
  • 1Hz-40MHz frequency measurement
  • 1kHz-4MHz pulse-width modulator, frequency generator
  • On-board multi-voltage pull-up resistors
  • On-board 3.3volt and 5volt power supplies with software reset
  • Macros for common operations
  • Bus traffic sniffers (SPI, I2C)
  • Transparent USB to serial bridge mode
  • 10Hz-1MHz low-speed logic analyzer
  • Custom support in AVRDUDE , Flashrom , OpenOCD
  • AVR STK500 v2 programmer clone
  • Scriptable from Perl, Python, etc.
  • A bootloader for easy USB firmware updates
  • Uses DP6037 standard PCB layout
  • Open source (CC 0/Public Domain)
If you encounter any problems when using this product, here is the forum from which you can get the technical support.
