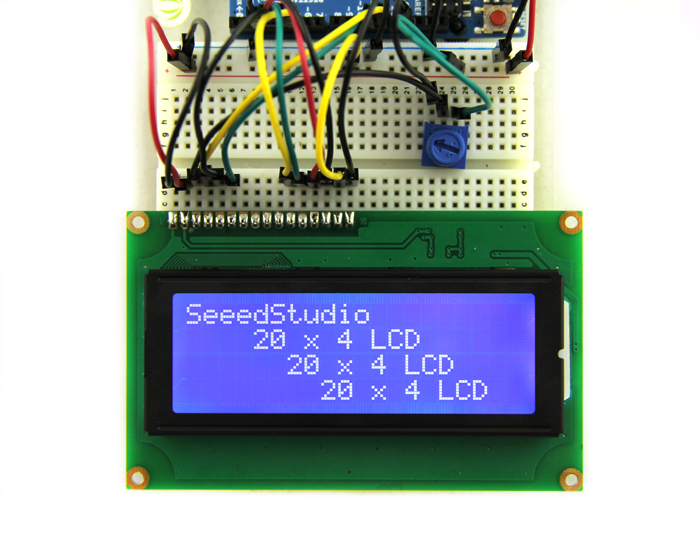

      LCD 20*4 Characters - White back light

      LCD 20*4 Characters - White back light

      SKU 104990002
      $16.50
      8 Available
      ADD TO CART

      Description

      A bigger LCD than 16x2 LCD, this LCD is a 20 character by 4 line display with white text on blue background. With the same 16-pin interface as HD44780 driver, it is also fully compatible with Arduino LiquidCrystal library.



      Specifications

      • Compatible with Arduino LiquidCrystal Library

      • LCD Display Mode: STN, Positive, Transflective

      • Viewing Angle: 6:00

      • Driving Method : 1/16 duty, 1/5 bias

      • Back Light : Blue LED Backlight

      • Text Color: White

      • Outline Dimension: 98 x 60 x 14 MAX

      • Character Res: 20 x 4

      • Driver Voltage: 5 VDC



      Documents



      Technical Details

      Dimensions110mm x 80mm x 11mm
      WeightG.W 64g
      BatteryExclude

      Reviews

      Questions and Answers

      SUBMIT
      0

      Many of the older LCDs were polarized horizontally.
      Those cannot be viewed by polarized sunglasses.
      Any idea how is the back light polarized in this particular LCD?

      on Oct 19,2016
      Replyupvote ()
      <p>Dear Zoltan Kocsis.It's a Externally-sourced product.You can refer to our docs,i'm sorry that we have no other info about that.</p>
      on Oct 20,2016 10:43 AM
      Replyupvote ()
