Grove - 3-Axis Digital Gyro

SKU
101020050

Grove - 3-axis Gyro module based on ITG 3200

$19.90
In stock
  • 10+: $17.91
  • 20+: $16.92
  • More
  • 50+: $15.92
  • Less
-
+

PRODUCT DETAILS

Grove - 3-axis Gyro module based on ITG 3200. It is the world’s first single-chip, digital-output, 3-axis MEMS motion processing gyro optimized for gaming, 3D mice, and motion-based remote control applications for Internet connected Digital TVs and Set Top Boxes.

Features

  • Grove compatible interface

  • Digital-output X-, Y-, and Z-Axis

  • Fast Mode I2C(400KHZ) serial interface

  • ±2000°/sec full scale range and 14.375 LSBs per °/sec sensitivity

  • Low 6.5mA operating current for long battery life

  • On-chip temperature sensor

  • Integrated amplifiers and low-pass filters

  • RoHS and Green compliant



Technical details

Dimensions 20mm x20mm x15mm
Weight G.W 8g
Battery Exclude

Part List

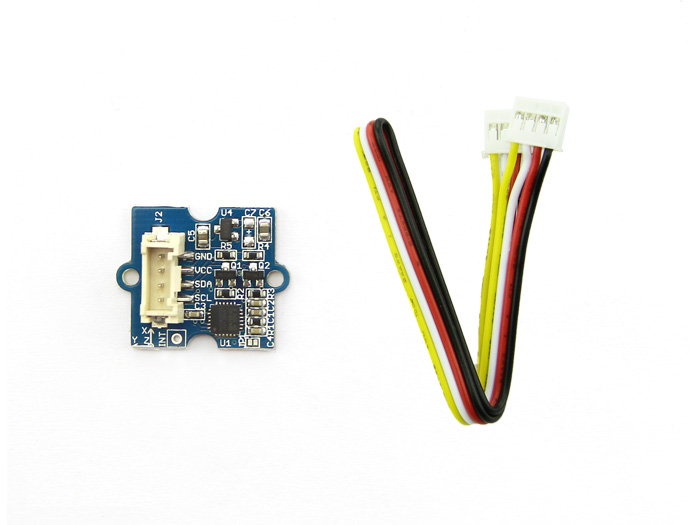

Grove - 3-Axis Digital Gyro 1
Grove Cable 1

ECCN/HTS

HSCODE 8538900000
USHSCODE 9015900090
UPC 841454108849
ROHS 1

LEARN AND DOCUMENTS

Learn

How to use a 3-axis digital accelerometer.
An Internet-connected device that controls servos and sends sensor (GPS/gyro/accel/compass) updates in real-time over a GSM cell link.
Use an Arduino to control the Wiimote 3-Axis Accelerometer module ADXL330 and the WS2812B Digital GRB LED Strip.
This article describes how to get the BeagleBone Green working as a device controlled from your mobile phone that can send back status updates (position and attitude) to the controller.
Wiki of Grove - 3-Axis Digital Gyro
