Summer is coming, want to make a UV detector to know the UV index when you are under the sun? Grove - Sunlight Sensor is recommend here.

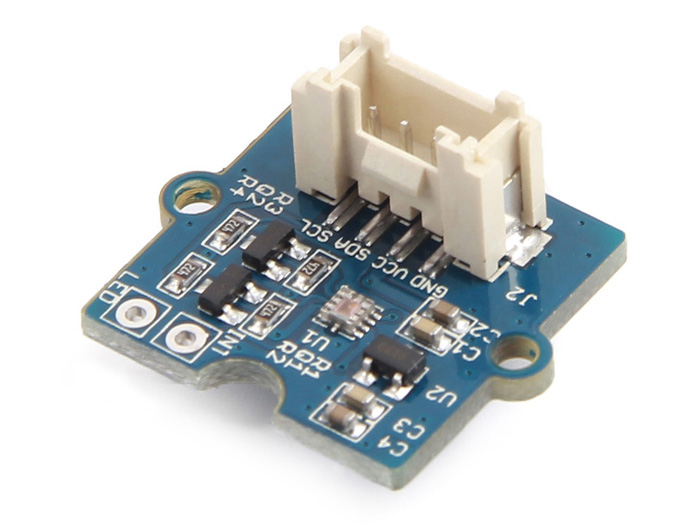

Grove - Sunlight Sensor is a multi-channel digital light sensor, which has the ability to detect UV-light, visible light and infrared light.
This device is based on SI1145, a new sensor from SiLabs. The Si1145 is a low-power, reflectance-based, infrared proximity, UV index and ambient light sensor with I2C digital interface and programmable-event interrupt output. This device offers excellent performance under a wide dynamic range and a variety of light sources including direct sunlight.
Grove - Sunlight Sensor include an on-bard Grove connector, which help you to connect it your Arduino easily. You can use this device for making some project which need to detect the light, such as a simple UV detector.
Digital light sensor
Wide spectrum detection range
Detect sunlight directly
|Dimensions||140mm x85mm x11mm|
|Grove - Sunlight Sensor||1|
The Environment Cube! Know the Land Beneath You!
A cube with all the necessary sensors, suitable for a wide range of applications like agriculture. Know the land beneath you!
Grove - Sunlight Sensor
Wiki of Grove - Sunlight Sensor
is this compatible with arduino uno? 2nd question what is the meaning of "operting temperature" does it work only on the said temperatures?Question by: admin on 2018-12-18 02:21:12
1.YES ! It is compatible with UNO 2.YES !Answer by: admin on 2018-12-18 02:21:12
Question by: admin on 2018-12-18 02:20:55
Hi there, We only have this version this moment. You can remove the connector and solder the cable directly to the 4 pads as temporary solution. thanks.Answer by: admin on 2018-12-18 02:20:55
Question by: admin on 2018-12-18 02:20:47
It can measures up to 128 klx (direct sunlight). Please refer the following datasheet https://github.com/SeeedDocument/Grove-Sunlight_Sensor/raw/master/res/Si1145-46-47.pdfAnswer by: admin on 2018-12-18 02:20:49
can I hookup, 2-3 together on the same seeedstudio V4.2 with expansion board and still get IR, Vis, UV reading out to the ide?Question by: admin on 2018-12-18 02:20:24
Hi,SD shield can helpAnswer by: admin on 2018-12-18 02:20:24
