Includes ARM7 EJ-S™, GSM, GPRS, Wi-Fi, Bluetooth BR/EDR/BLE, GPS, Audio codec, and SD card connector on a single development board
Pin-out similar to Arduino boards, including Digital I/O, Analog I/O, PWM, I2C, SPI, UART and power supply, compatible with Grove 4-pin interface
Provides various interfaces for connecting to most sensors, peripherals, Groves, and other widgets
You are what you wear. Using LinkIt ONE together with MediaTek LinkIt SDK (for Arduino) you will be able to easily turn your ideas into practical prototypes and make them a reality with the Seeed productization and agile manufacturing service.
What is LinkIt ONE

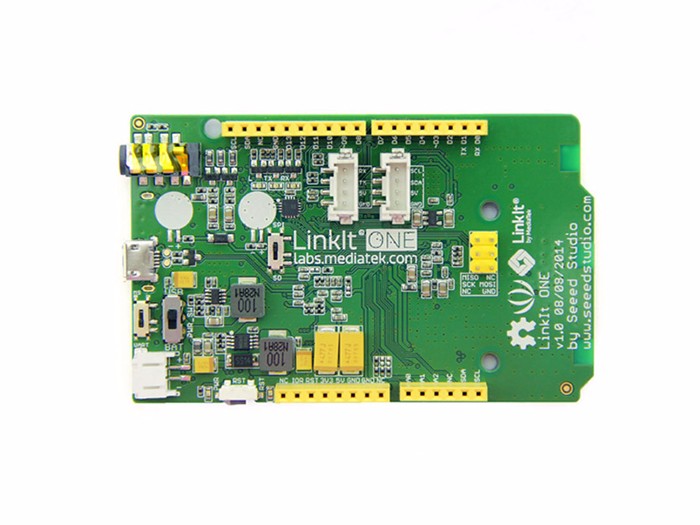

The LinkIt ONE development board is an open source, high-performance board for prototyping Wearables and IoT devices. It's based on the world's leading SoC for Wearables, MediaTek Aster (MT2502) combined with high-performance Wi-Fi (MT5931) and GPS (MT3332) chipsets to provide you with access to all the features of MediaTek LinkIt. It also provides similar pin-out features to Arduino boards, making it easy for you to connect to various sensors, peripherals, and Arduino shields.
LinkIt ONE is a co-design product by Seeed Studio and MediaTek. It brings together the parties' knowledge in open hardware and industry-leading reference designs for Wearables and IoT devices to create this powerful development board.
LinkIt ONE is built to offer similar pin-out to the popular Arduino boards ,4-pin grove interfaces and peripheral interfaces, making it easy to add sensors, peripherals, and Arduino Shields to LinkIt ONE and create fully featured wearable and IoT device prototypes. Here you can reach some widgets to have a comprehensive understanding of this platform, and we will develop more one after another.

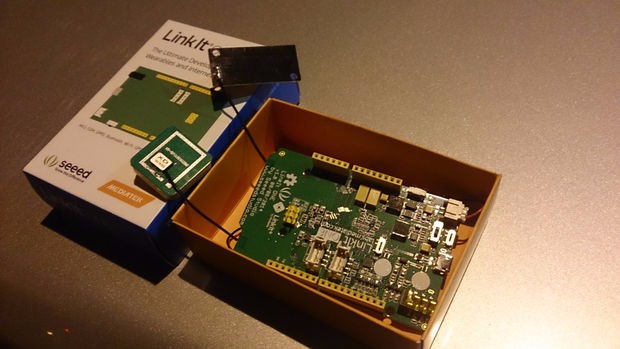

LinkIt ONE is paicked in the protective box, along with a quick start guide, pin-out diagram relevant user mannual and accessories. The box is designed to protect the LinkIt ONE from can prevent the shocks and impact. And for retailer which you may hang on the box in your a physical store, the box may include with a pendant from which it can be hung for display.
|Box||LinkIt ONE Board||Antenna||Polymer li-ion Battery|
|Dimensions||108mm x75mm x33mm|
|Battery||Lithium Cells/Batteries packed with equipment UN3481 -PI966|
|Dimensions||3.3 x 2.1 inches|
|Battery Jack||3.7~4.2V Li-battery|
|DC Current Per I/O Pin||0.3~3mA|
|Pin Count||16 (D0~D13, SDA, SCL)|
|Pin Count||3 (A0, A1, A2)|
|Pin Count||2 (D3 and D9)|
|Frequency (Resolution)||1.6KHz (13bit) / 50.8KHz (8bit) / 800KHz (4bit)/ (customizable)|
|Pin Count||2 (D2 and D3)|
|Set Count||1 (SDA, SCL)|
|Speed||100Kbps, 400Kbps, 3.4Mbps|
|Set Count||1 (MOSI, MISO, SCK, SS)|
|Set Count||1 (TX/RX)|
|Bluetooth||BR/EDR/BLE (Dual Mode)|
|Wi-Fi (MT5931)||802.11 b/g/n|
|SD Card||Up to 32GB (Class 10)|
Mediatek LinkIT ONE mp3 player
This recipe will teach you how to use LinkIt ONE to build a mp3 player
LinkIt ONE GPS tracker
Use LinkIt ONE to make a GPS tracker, tracking anything you want.
LinkIt ONE Tutorial #1: The Basics
The basic tutorial that can let you get started with LinkIt One quickly!
Linkit One IoT: Sending SMS without SIM Card
Do you know how to send SMS without SIM card, here is the tutorial to let you know.
The LinkIt ONE development platform is an open source, high performance board for prototyping Wearables and IoT devices. It is based on the world’s leading SoC for Wearables, MediaTek Aster (MT2502) combined with high performance Wi-Fi (MT5931) and GPS (M
Is a very good product, very professional.
Hi We are using this product since a while and it is great , however we have an issue regarding the output pin all of them but for example pin 13 when we make this pin output and digitalwrite HIGH or LOW it always go high then low ! is that a defect ? though it appears in all of my linkitone ! ... thank you alot :)Question by: admin on 2018-12-18 02:30:34
Hi,there-sorry about your experiences, you may have to tell us more details about your problem, please contact us by email@example.com###,Regards!Answer by: admin on 2018-12-18 02:30:34
I'm surprised that there is no enclosure for this board... can anyone recommend a good enclosure for this?Question by: admin on 2018-12-18 02:30:21
Hi there~ Please check here # https://www.thingiverse.com/ # You may seach what you need here.Answer by: admin on 2018-12-18 02:30:21
Having a lot of issues with the board hanging up after 1 to 2 days of running. I have a simple code where it texts me the coordinates when I send it a message. It will run good for about 1 to 2 days, then I have to power it off and back on for it to work. Reset button does not help. Seems like a very unstable card. Anyone have experience with this?Question by: admin on 2018-12-18 02:30:15
Hi, there-In general, it is caused by running out of resourcesAnswer by: admin on 2018-12-18 02:30:15
hi, I use linkIT one to design my IoT and now we want make my own device, how can I upload sketch to my own board?Question by: admin on 2018-12-18 02:29:47
Hi, there- Please read the documentation carefully after getting this module, if you cannot overcome the problem after reading documentation, contact us by email ###firstname.lastname@example.org###,Regards!Answer by: admin on 2018-12-18 02:29:47
Will be wonder if we can link it to google cloud iot core. Is there hardware capability to handle RS256_X509, TSL to share data with MQTT? What happened with discontinued AWS project? I love this arduino ready board and have used for GPRS with HTTP GET requests very successfully but MQTT it is urgent ( low latency, much lower data flow…). I tried for weeks to adapt the AWS libraries but I gave up. So, can you tell me if there is any work being done to take this big step? Thanks in advanceQuestion by: admin on 2018-12-18 02:29:38
Hi there~ Please check the link below,for AWS guide. Regards. ==================================================================== https://docs.labs.mediatek.com/resource/linkit-one/en/getting-started/get-started-with-aws-iot-services-on-the-linkit-one-development-platformAnswer by: admin on 2018-12-18 02:29:38
Is there any other board with such hardware specifications that supports Micro Python?Price is not an issue here,Question by: admin on 2018-12-18 02:29:28
Hi there~ You can consider Linklt 7688 Duo with Arduino Breakout for LinkIt Smart 7688 Duo.The 7688 Duo support Python and almost have the same fuction as Linklt one except GSM. Regards ===================================================================== 7688 Duo--## https://www.seeedstudio.com/LinkIt-Smart-7688-Duo-p-2574.html ### 7688 Duo Breakout --- https://www.seeedstudio.com/Arduino-Breakout-for-LinkIt-Smart-7688-Duo-p-2576.htmlAnswer by: admin on 2018-12-18 02:29:28
Hi, what firmware comes with the board? Is firmware open source? Assuming we are done with our POC on this board can we use the same firmware in our final product?Question by: admin on 2018-12-18 02:23:27
Hi, friend-you can go to the website##http://labs.mediatek.com/en/platform/linkit-one##for the information about firmware, as my view, it may not open source presently, Regards!Answer by: admin on 2018-12-18 02:23:27
How do the GPS system , GPRS system and complete linkit one consume power ? because I am designing a power consumption critical system. so I need to know the power consumption of linkit one....Question by: admin on 2018-12-18 02:21:19
when GPRS and GPS are working doesn't it consume more power than 20mAAnswer by: admin on 2018-12-18 02:21:19
Question by: admin on 2018-12-18 02:21:17
When you are exporting Linkit One to your customers anywhere in the world, there is a mandatory requirement to specify HSC code. Someone from your team (marketing/commercial) must definitely be aware about HSC for Linkit One. We need it urgently.Answer by: admin on 2018-12-18 02:21:17
Question by: admin on 2018-12-18 02:21:08
`Answer by: admin on 2018-12-18 02:21:08
Question by: admin on 2018-12-18 02:20:23
:)Answer by: admin on 2018-12-18 02:20:23
Question by: admin on 2018-12-18 02:19:36
Hi, What is the procedure to get a customized board from you for our own prototyping purpose.Answer by: admin on 2018-12-18 02:19:36
