Compatible with lots of Arduino board Rich grove connectors Same pinout as Arduino Uno R3 Selectable voltage PDF guidance for grove users

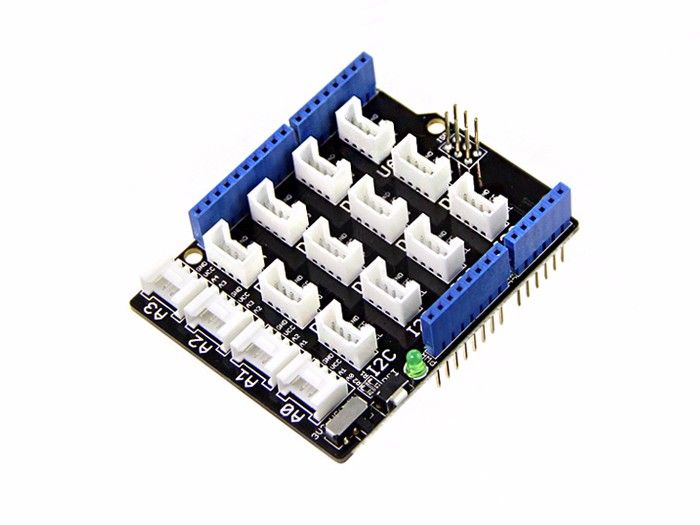

Arduino Uno is the most popular Arduino board so far, however it is sometimes frustrating when your project requires a lot of sensors or Leds and your jumper wires are in a mess. The purpose of creating the Grove – Base Shield is to help you getting rid of bread board and jump wires. With the rich grove connectors on the base board, you can add all the grove modules to the Arduino Uno very conveniently!


Features


There are intotal 16 grove connectors on the Base Shield, here we use a table to show the details.



Specification
Name
Qty
Analog
A0/A1/A2/A3
4
Digital
D2/D3D4/D5/D6/D7/D8
7
UARTUART
1
I2C
I2C
4



Apart from the rich grove connectors, on the board you can also see an RST button, a green LED to indicating power status, ICSP pin, a toggle switch and four row of pinouts. There is no need to explain the RST button and LED, but you really need to know below two features that is very important for your usage.


1.Power Compatible:


Every Grove connector has four wires, one of which is the VCC. However, not every micro-controller main board needs a supply voltage of 5V, some need 3.3V. That's why we add a power toggle switch to Base Shield v2 so that you can select the suitable voltage of the micro-controller main board you are using via this switch.


For example, if you are using Arduino UNO with Base Shield v2, please turn the switch to 5v position; while using Seeeduino Arch with Base Shield v2, please turn the switch to 3.3v.


2.Board Compatible:


The pinout of Base Shield V2 is the same as Arduino Uno R3, however Arduino Uno is not the board one that the Base Shield V2 is compatible with, here we listed the boards that we have confirmed that can be used with Base Shield V2.

  • Arduino Uno

  • Seeeduino V4.2

  • Arduino Mega / Seeeduino Mega

  • Seeduino LoraWan

  • Arduino Leonardo / Seeeduino Lite

  • Arduino 101

  • Arduino Due

  • Intel Edison

  • Linkit One


Note

  • If using Base Shield v2 with Seeeduino V3, please solder the pads, P1 and P2.





Technical details

Dimensions 69mm x53mm x23mm
Weight G.W 40g
Battery Exclude

Part List

Base Shield V2 1

ECCN/HTS

HSCODE 8517709000
USHSCODE 8517700000
UPC 841454111801
ROHS 1

Grove - 3-Axis Analog Accelerometer ±20g (ADXL356B)

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.

Grove - 3-Axis Analog Accelerometer ±40g (ADXL356C)

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.

Grove - 3-Axis Digital Accelerometer ±40g (ADXL357)

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.

Grove - 3-Axis Digital Accelerometer ±200g (ADXL372)

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.

Solar Powered Environmental Monitoring Kit

A solar-powered open source kit for monitoring air quality, sound level, humidity, and temperature.

Smart Plant IoT

Auto watering the plant and tracking plant's health through Helium and Microsoft Azure IoT.

NFC Card Controlled Remote Car

This is a remote control car. Not controlled by ubiquitous remotes, like joystick, but a set of NFC cards. That makes it a challenge to rational thinking.

LinkIt ONE IoT Demo

The LinkIt ONE development board is an open source, high performance board for prototyping Wearables and IoT devices.

Base Shield V2

As an expansion board, Base Shield v2 has many Grove connectors, making it convenient for you to use Grove products together. And It is compatible with a series of Arduino products.

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Reviews
  1. simple and easy to use
    Rating
    100%
    Well documented on the board.

    But take care to choose the same voltage as on the Seeeduino, else it will not commuunicate with the Arduino software.
