Includes ARM7 EJ-S™, GSM, GPRS, Wi-Fi, Bluetooth BR/EDR/BLE, GPS, Audio codec, and SD card connector on a single development board
Pin-out similar to Arduino boards, including Digital I/O, Analog I/O, PWM, I2C, SPI, UART and power supply, compatible with Grove 4-pin interface
Provides various interfaces for connecting to most sensors, peripherals, Groves, and other widgets
You are what you wear. Using LinkIt ONE together with MediaTek LinkIt SDK (for Arduino) you will be able to easily turn your ideas into practical prototypes and make them a reality with the Seeed productization and agile manufacturing service.

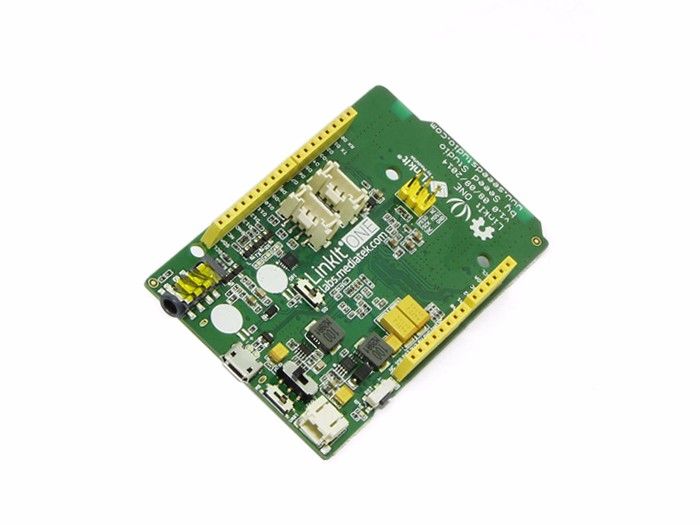

What is LinkIt ONE
The LinkIt ONE development board is an open source, high-performance board for prototyping Wearables and IoT devices. It's based on the world's leading SoC for Wearables, MediaTek Aster (MT2502) combined with high-performance Wi-Fi (MT5931) and GPS (MT3332) chipsets to provide you with access to all the features of MediaTek LinkIt. It also provides similar pin-out features to Arduino boards, making it easy for you to connect to various sensors, peripherals, and Arduino shields.
LinkIt ONE is a co-design product by Seeed Studio and MediaTek. It brings together the parties' knowledge in open hardware and industry-leading reference designs for Wearables and IoT devices to create this powerful development board.
LinkIt ONE is built to offer similar pin-out to the popular Arduino boards ,4-pin grove interfaces and peripheral interfaces, making it easy to add sensors, peripherals, and Arduino Shields to LinkIt ONE and create fully featured wearable and IoT device prototypes. Here you can reach some widgets to have a comprehensive understanding of this platform, and we will develop more one after another.
LinkIt ONE is paicked in the protective box, along with a quick start guide, pin-out diagram relevant user mannual and accessories. The box is designed to protect the LinkIt ONE from can prevent the shocks and impact. And for retailer which you may hang on the box in your a physical store, the box may include with a pendant from which it can be hung for display.
|Box||LinkIt ONE Board||Antenna||Polymer li-ion Battery|
|Dimensions||108mm x75mm x33mm|
|Battery||Lithium Cells/Batteries packed with equipment UN3481 -PI966|
|Dimensions||3.3 x 2.1 inches|
|Battery Jack||3.7~4.2V Li-battery|
|DC Current Per I/O Pin||0.3~3mA|
|Pin Count||16 (D0~D13, SDA, SCL)|
|Pin Count||3 (A0, A1, A2)|
|Pin Count||2 (D3 and D9)|
|Frequency (Resolution)||1.6KHz (13bit) / 50.8KHz (8bit) / 800KHz (4bit)/ (customizable)|
|Pin Count||2 (D2 and D3)|
|Set Count||1 (SDA, SCL)|
|Speed||100Kbps, 400Kbps, 3.4Mbps|
|Set Count||1 (MOSI, MISO, SCK, SS)|
|Set Count||1 (TX/RX)|
|Bluetooth||BR/EDR/BLE (Dual Mode)|
|Wi-Fi (MT5931)||802.11 b/g/n|
|SD Card||Up to 32GB (Class 10)|
This recipe will teach you how to use LinkIt ONE to build a mp3 player
Use LinkIt ONE to make a GPS tracker, tracking anything you want.
The basic tutorial that can let you get started with LinkIt One quickly!
Do you know how to send SMS without SIM card, here is the tutorial to let you know.
The LinkIt ONE development platform is an open source, high performance board for prototyping Wearables and IoT devices. It is based on the world’s leading SoC for Wearables, MediaTek Aster (MT2502) combined with high performance Wi-Fi (MT5931) and GPS (M
Hi,there-sorry about your experiences, you may have to tell us more details about your problem, please contact us by email@example.com###,Regards!
Hi there~ Please check here # https://www.thingiverse.com/ # You may seach what you need here.
Hi, there-In general, it is caused by running out of resources
Hi, there- Please read the documentation carefully after getting this module, if you cannot overcome the problem after reading documentation, contact us by email ###firstname.lastname@example.org###,Regards!
Hi there~ Please check the link below,for AWS guide. Regards. ==================================================================== https://docs.labs.mediatek.com/resource/linkit-one/en/getting-started/get-started-with-aws-iot-services-on-the-linkit-one-development-platform
Hi there~ You can consider Linklt 7688 Duo with Arduino Breakout for LinkIt Smart 7688 Duo.The 7688 Duo support Python and almost have the same fuction as Linklt one except GSM. Regards ===================================================================== 7688 Duo--## https://www.seeedstudio.com/LinkIt-Smart-7688-Duo-p-2574.html ### 7688 Duo Breakout --- https://www.seeedstudio.com/Arduino-Breakout-for-LinkIt-Smart-7688-Duo-p-2576.html
Hi, friend-you can go to the website##http://labs.mediatek.com/en/platform/linkit-one##for the information about firmware, as my view, it may not open source presently, Regards!
when GPRS and GPS are working doesn't it consume more power than 20mA
When you are exporting Linkit One to your customers anywhere in the world, there is a mandatory requirement to specify HSC code. Someone from your team (marketing/commercial) must definitely be aware about HSC for Linkit One. We need it urgently.
Hi, What is the procedure to get a customized board from you for our own prototyping purpose.
