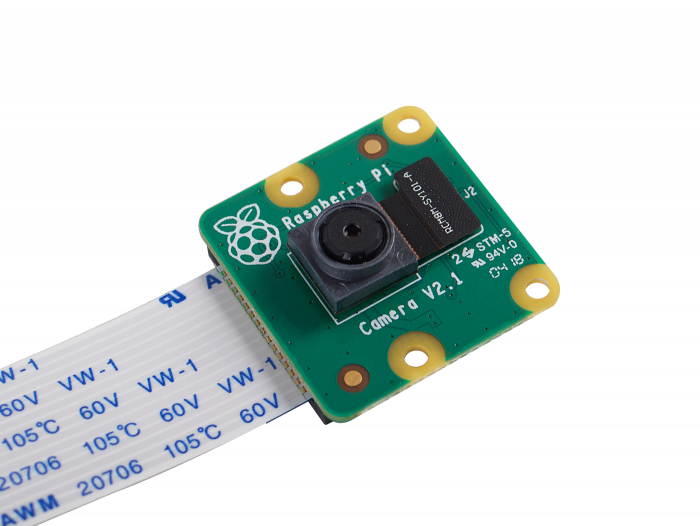

Raspberry Pi Camera v2 is the new official camera board released by the Raspberry Pi Foundation. It carries an 8 megapixel Sony IMX219 image sensor with high resolution and great preformance, and is compatible with most of SBCs or Dev boards which have a standard CSI(Camera Serial Interface).
Raspberry Pi Camera Module V2 is a new official camera board released by Raspberry Pi Foundation. It carries an 8 megapixel Sony IMX219 image sensor which has a great performance in catching the high resolution of images and videos. The image sensor can output up to 3280x2464 pixel static images ,1080p30, 720p60 and 640x480p90 video.
For the interface that connects the board, Raspberry Pi Camera has the standard CSI(Camera Serial Interface) which can be compatible with most of SBCs or Dev boards like Raspberry Pi 4, NVIDIA Jetson Nano and Raspberry Pi Zero, etc. But you need a Camera Cable for Raspberry Pi Zero to adapt the Pi Zero to this camera. As a matter of fact, the Raspberry Pi Camera has wide compatibility.
|Camera Module v1||Camera Module v2||High Quality Camera|
|Still resolution||5 Megapixels||5 Megapixels||12.3 Megapixels|
|Sensor||OmniVision OV5647||Sony IMX219||Sony IMX477|
|Sensor resolution||2592 × 1944 pixels||3280 × 2464 pixels||4056 x 3040 pixels|
|Sensor image area||3.76 × 2.74 mm||3.68 x 2.76 mm
(4.6 mm diagonal)
|6.287mm x 4.712 mm
|Pixel size||1.4 µm × 1.4 µm||1.12 µm x 1.12 µm||1.55 µm x 1.55 µm|
|Focal length||3.60 mm +/- 0.01||3.04 mm||depends on lens|
|Horizontal field of view||53.50 +/- 0.13 degrees||62.2 degrees||depends on lens|
|Vertical field of view||41.41 +/- 0.11 degrees||48.8 degrees||depends on lens|
|Focal ratio (F-Stop)||2.9||2.0||depends on lens|
|Size||25 × 24 × 9 mm||25 x 23 x 9mm||38 x 38 x 18.4mm
|Dimensions||120mm x75mm x23mm|
