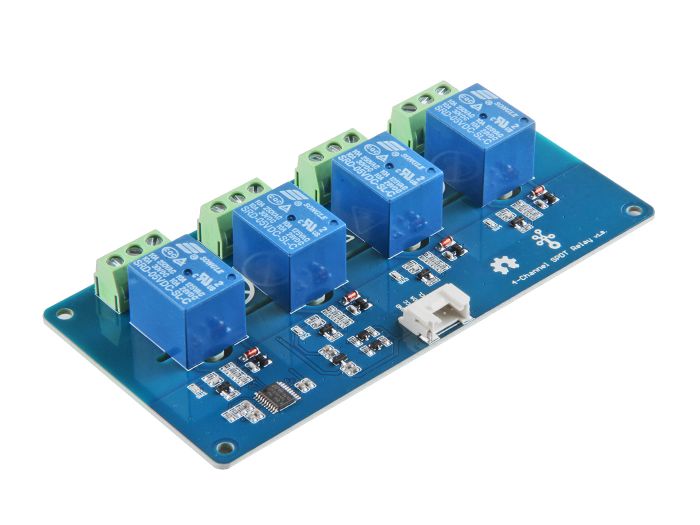

Grove - 4-Channel SPDT Relay, switch

Note


We've released the Seeed Relay Selection Guide, it will help you choose the relay that best suits your needs.



The Grove - 4-Channel SPDT Relay has four single pole - double throw (SPDT) switches. It only requires low-voltage and low current signals to control those switches. Specifically, you can use 5V DC to control max.250V AC or 110V DC.


We use an on-board STM32F030F4P6 to control the channels separately. The control command is transmit via the I2C interface, the on-board STM32F030F4P6 will parse the command, so that you can control the switch you want.

Features

  • High temperature resistant plastic shell

  • High voltage load

  • Low power consumption

  • Long lasting

  • 128 Optional I2C address

Applications

  • Domestic appliance

  • office machine

  • Remote control TV receiver

  • monitor display

  • audio equipment high rushing current use application

Pin Map

Technical details

Dimensions 120mm x60mm x19mm
Weight G.W 257g
Battery Exclude

Part List

Grove - 4-Channel SPDT Relay 1
Grove Cable 1
Acrylic Case 1
A bag of Nylonl nuts, studs and bolts 1

ECCN/HTS

ECCN EAR99
HSCODE 85364110
USHSCODE 85364100
UPC 841454120889

Grove - 4-Channel SPDT Relay

This is the wiki of Grove - 4-Channel SPDT Relay
