The Beaglebone Series
An open-source embedded platform powerful enough for developers, but friendly enough for students.
A Stable Community and Great Support
The Beaglebone is surrounded by an active community which is quick to respond and assist its members. All documents are available for the software and chipsets, allowing answers to be quickly found.
The Power of Linux with Real-Time Capability
When the physical world demands both flexibility and real-time response, the Beaglebone answers the call. Run a full Linux OS while taking advantage of the onboard PRUs (Programmable Real-Time Units) to ensure response and control are sent when needed.

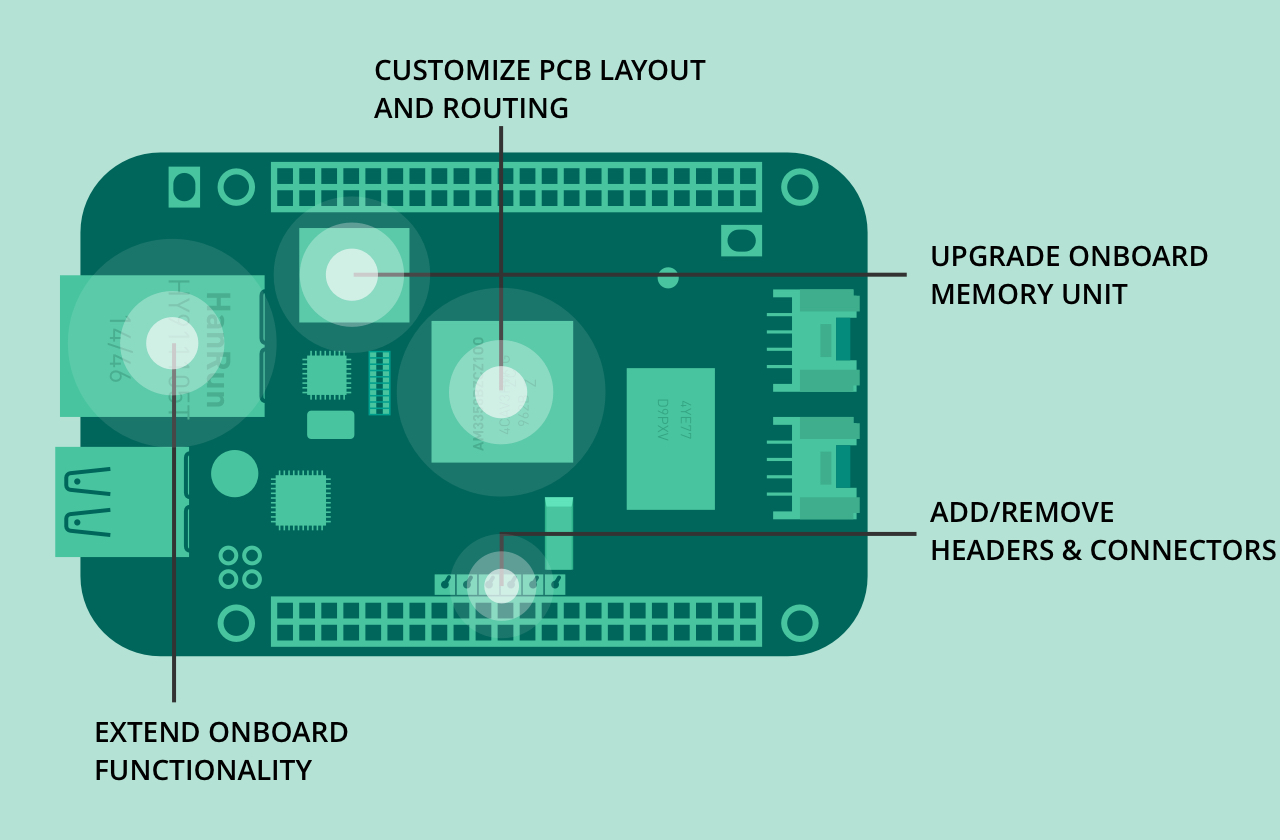

Easy to Customize
Have a unique problem? We can help customize the BeagleBone Green to better solve your solution

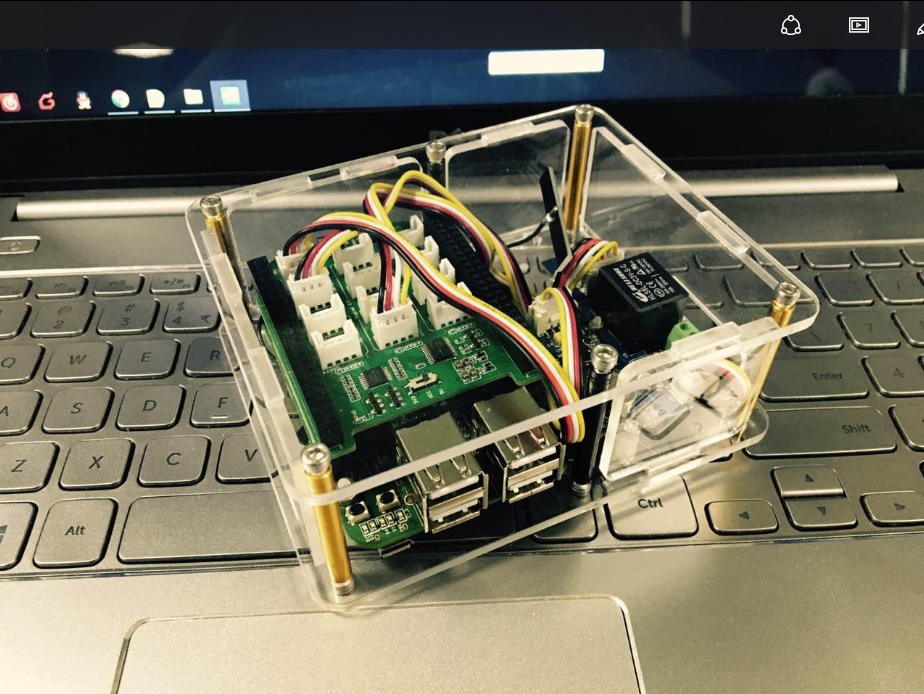

Simple Prototyping
The onboard Grove interfaces allow our more than 140 sensors and actuators to help get you started. Community designed shields and accessories help to accelerate your project even further.
Fit for Numerous Applications
The world has many problems which need a solution. While the Beaglebone Green can be used in many of them, we believe it is well suited for.
Robotics
Smart Homes
Smart Cities
Industrial Facilities
View the products
Comparison
Price
USD42.00
USD46.50
USD65.50
Processor
AM3358 1GHz ARM® Cortex-A8
AM3358 1GHz ARM® Cortex-A8
AM3358 1GHz ARM® Cortex-A8
RAM
512MB DDR3 RAM
512MB DDR3 RAM
512MB DDR3 RAM
On-board flash storage
16GB 8-bit eMMC
4GB 8-bit eMMC
4GB 8-bit eMMC
CPU supports
3D graphics accelerator & NEON floating-point accelerator
3D graphics accelerator & NEON floating-point accelerator
3D graphics accelerator & NEON floating-point accelerator
Microcontroller
2x PRU 32-bit microcontrollers
2x PRU 32-bit microcontrollers
2x PRU 32-bit microcontrollers
Micro USB supports
N/A
1x USB client for power & communications
1x USB client for power & communication
USB
1x USB 2.0 Host Type-A 1x USB 2.0 Type-C (power & device communication)
1x USB host Compatible with Micro usb
4x USB host Compatible with Micro usb
Ethernet
Gigabit Ethernet (10/100/1000Mbps)
Ethernet (10/100Mbit)
Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
GPIO
2x 46 pin headers
2x 46 pin headers
2x 46 pin headers
Grove connectors
2x Grove connectors
2x Grove connectors
2x Grove connectors
Operating Temperature
-40~85℃
0~75℃
0~75℃
