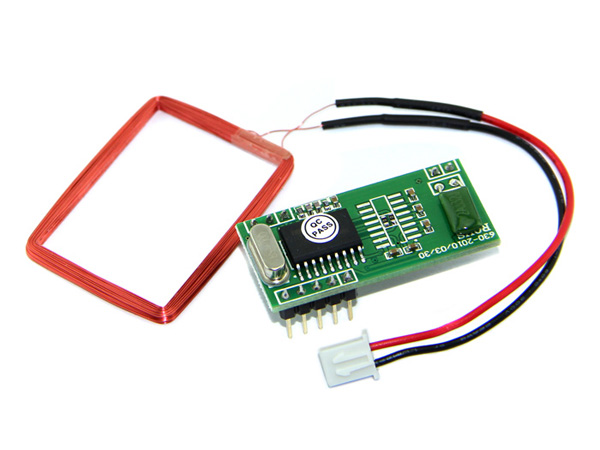

RDM 125KHz card mini-module is designed for reading code from 125KHz card compatible read-only tags and read/write card . It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
This product will no longer available in future, you can purchase it's replacement module here.
Features
Support external antenna
Maximum effective distance up to 50mm
Less than 100ms decoding time
UART TTL interface
Support EM4100 compatible read only or read/write tags
Built-in external bi-color LED and buzzer driver
Small outline design
Including: External Antenna *1
Note:Module will notify whenever 125khz tag approaches, tag serial number will be send via TX pin. Easy way for a RFID module on MCU projects or PC connnection via UartSB.
Documents
Please visit ourwiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
Is there any existing module: 125Khz RFID module - UART, I need this for its 150mm maximum distance. The other model on, Electronic brick - 125Khz RFID Card Reader, just 70mm maximum distance. Thank you.
Hello, this module is in stock at present. Any other question?
The module work fine (or at least I guess). I have bought tags sold on the website and I have signal which change on the led pin (I have not yet try to develop and arduino application - it takes time to less time to check at hardware level).
Based on the information that the module is ok and that my HID tag works at 125KHz too, I do not understand why.
My tags is http://www.hidglobal.com/main/documents/proxkey_ds_en.pdf
Here are similar links:
http://www.midpoint-security.com/brochures/hid/proxkey_ds_en.pdf
http://www.cardimaging.com/hid/pdfs/proxkey.pdf
Answered by D****N |
2012-12-19
Was this useful?0 of 0 people found this useful
Hi,your link has broken.you may post more informtaion on our forum.Thanks.
I have checked with an oscilloscope what it happens on the antenna when my HID RFID 125KHz tag is close of the reader and I can see nothing special.
I am sure that it is 125KHz tag since I have tested the signal used by readers for access control of my building with an oscilloscope (and the specification said that it is 125KHz).
Is there something that I can check on the module to be sure that it have not a problem?
Best regards,
Okay, please make sure that you are using RFID 125Khz card such as(http://www.seeedstudio.com/depot/rfid-tag-combo-125khz-5-pcs-p-700.html?cPath=144_153). If so, it doesn't work ,it is maybe has a broken. You could directly contact our QC( QC@seeedstudio.com).
Answered by Deray Wu |
2012-12-03
Was this useful?0 of 0 people found this useful
Dear Deray,
When I put my HID RFID 125KHz tag, the output level on LED pin is not moving (and stay HIGH).
I really wonder if the module has not a problem.
Answered by D****N |
2012-11-30
Was this useful?0 of 0 people found this useful
Hello, you could directly measure the voltage of LED pin. If there is not RFID card , it will always output HIGH level, otherwise it output LOW level.
Nothing is said about how to choose output mode.
I have one and it seems I can get nothing on the TX PIN of the reader ... :-(
Hello, this module is default to set as RS232 output mode after manufacture , it can not change the output mode. Please check if you are using 125k RFID card , the TX port will reply the ID card when a 125k RFID card is put close to it.
Hello
I want you motor run by receiving orders from RDFID TAG
Through 125Khz RFID module - UART and Arduino UNO and Motor High quality Stepper motor 12V
How can it do this and what is the appropriate code for this device
Was this useful? 0 of 0 people found this useful
Avinash Gupta | 2010-10-31
Hi,
The modules are very good. I need more of them! Please please bring more stock of It. I am waiting for many days for stock. It is always saying out of stock.
Was this useful? 0 of 0 people found this useful
Niels Jørgensen | 2010-09-07
Was something changed on this module recently? The last one I got is certainly different from the first (different layout of components, pins look the same). In particular, I am no longer getting +5V on pin 5 of P1.
Was this useful? 0 of 0 people found this useful
John Boxall | 2010-08-18
Very cheap and very easy to use with arduino - I have written a tutorial that may be of interest here: http://wp.me/pQmjR-JL
Was this useful? 0 of 0 people found this useful
Niels Jørgensen | 2010-08-13
Works like a charm, and you can't beat the price :)
Was this useful? 0 of 0 people found this useful
William Riggins | 2010-06-17
Got mine the other day and played around with it. I'm getting consistent data at this point, but it isn't matching the serial numbers on the tags. I agree with the other reviews, the antenna seems very fragile. I'm wondering if you could build your own antenna and increase both the range and durability. Overall, this is a great RFID board for the price.
The "Crazy People" interrupt based code is probably the best place to start if you're going to use this with an Arduino.
