Car hacking

Nowadays, automobiles have around 60 to 100 sensors units for sensing and exchanging information. Use a microcontroller like your Arduino and peripheral devices to control your automobile.

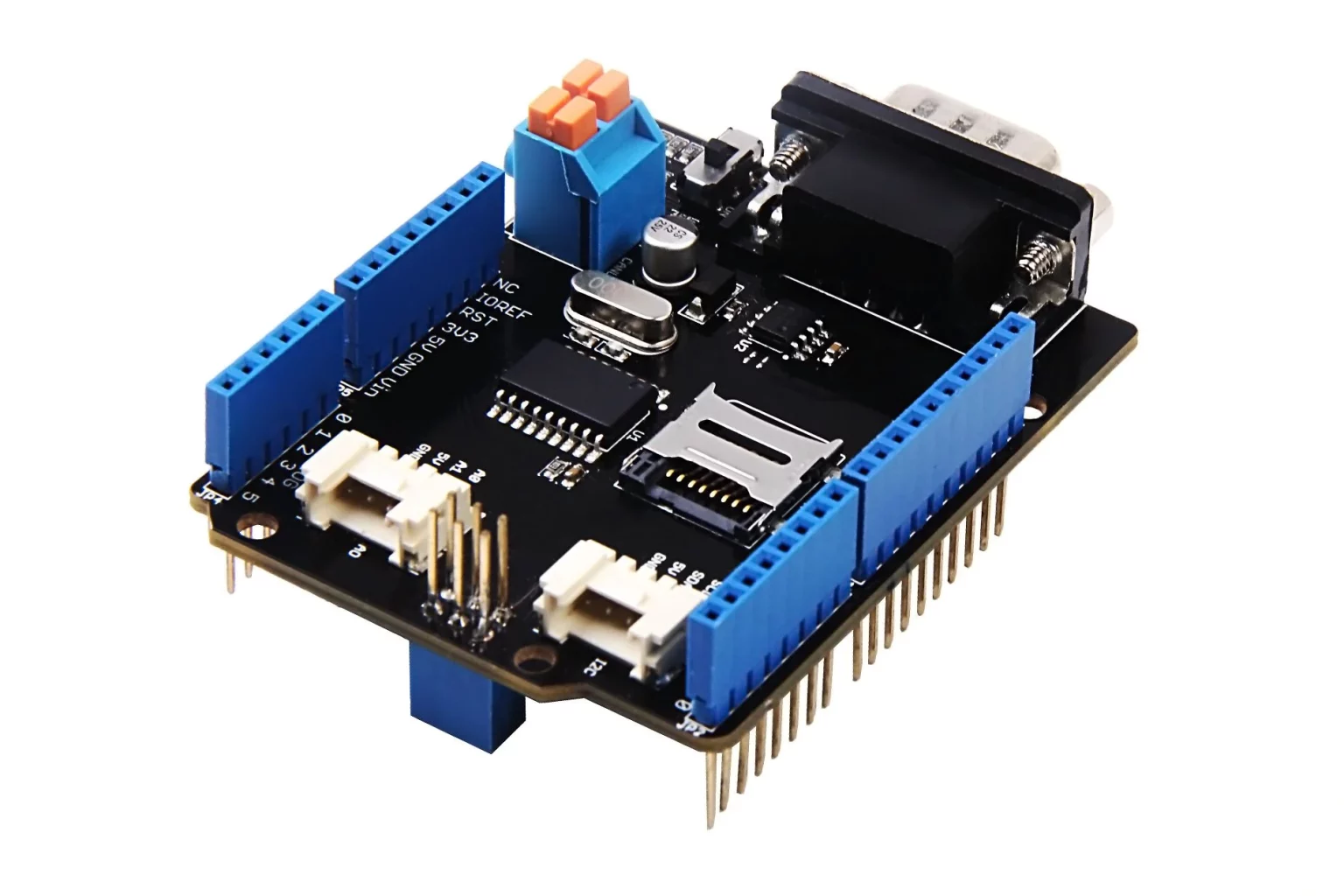

CAN-BUS Shield V2

Hacking vehicles becomes easy with CAN BUS and Arduino! CAN-BUS Shield which adopts MCP2515 CAN-BUS controller with SPI interface and MCP2551 CAN transceiver to give you Arduino/Seeeduino CAN-BUS capability. With the help of CAN-BUS Shield, you can use easily interact with your car by using Arduino boards.



CAN Bus Car Hacking Kit with Wio Terminal

Wouldn’t it be great to be able to have a visual interface displaying all of the vital information of your car (i.e. rotation speed, oil temperature, cycling speed, etc.)? By hacking your car with Arduino compatible device, Wio Terminal, you can obtain your car’s real-time vital information displayed on a screen. It can make a great dashboard accessory as well!



This CAN Bus Car Hacking Kit provides you with everything you need to hack your car, with a Wio Terminal, an OBD2 connector and a Grove Serial CAN Bus Module.


CANBed dev kit

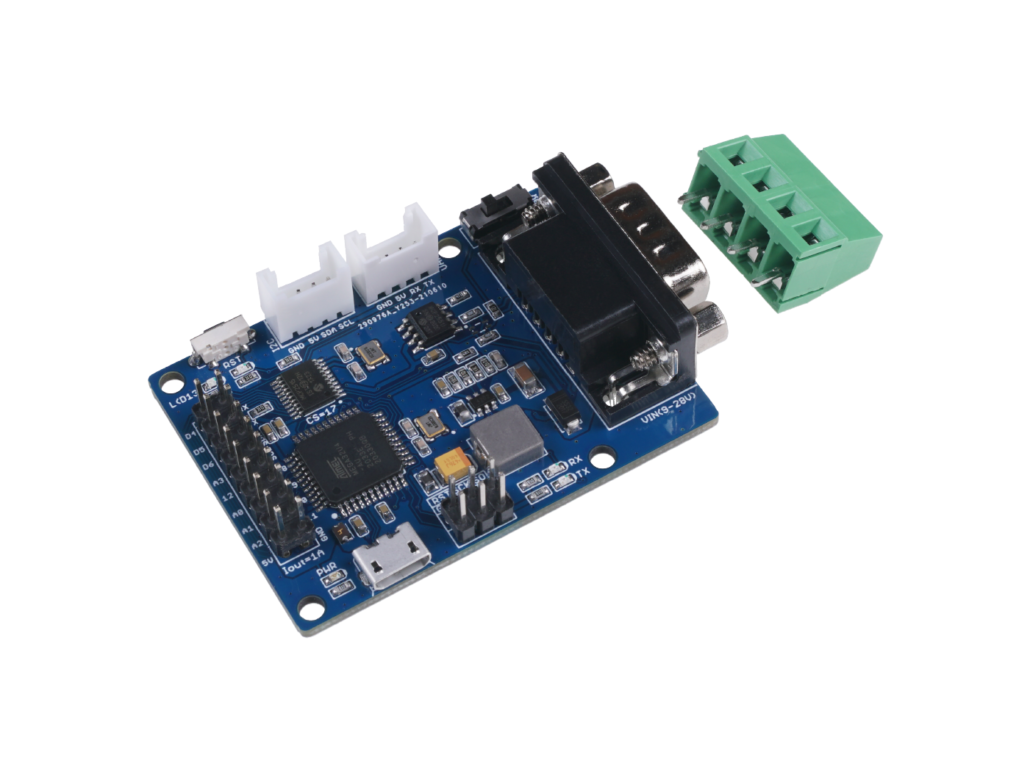

CANBed - Arduino CAN-BUS Dev Kit

CANBed – Arduino CAN-BUS Development Kit carries an ATmega32U4 chip and MCP2515, MCP2551 CAN-BUS controller and transceiver to realize the CAN-BUS communication protocol on a single board without other MCU to control, it is a CAN-BUS Development Board itself!

This CAN-Bus development board is perfectly compatible with Arduino IDE. With the help of the Arduino CAN-Bus library, you will save plenty of time for your CAN project.

What is cAN-BUS?

CAN stands for Controller Area Network, it is used to allow microcontrollers and devices to communicate with each other within a vehicle without a host computer which allows for control and data acquisition. These devices are also called Electronic Control Units (ECU) and they enable communication between all parts of a vehicle.

Today, you can find up to 70 ECUs in a modern car. CAN is a serial communication bus designed for industrial and automotive applications.

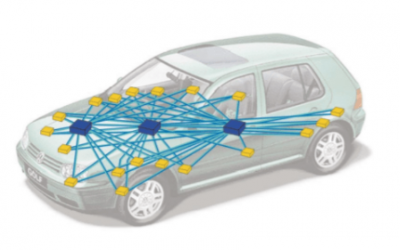

car-without-can

CAN without CAN

Pic credits to Volkspage

canbus wiring

CAN BUS Wiring

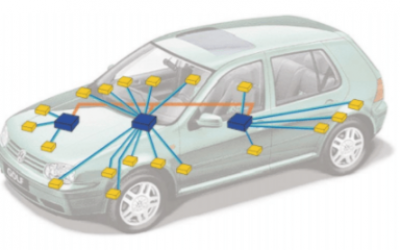

car-with-can

CAN with CAN

Pic credits to Volkspage

More CAN-BUS Hacking Tools

The Arduino MKR CAN shield will provide automotive CAN connectivity.

With this shield you can easily connect to a CAN (Controller Area Network) Bus. Discover new possibilities of interaction between your Arduino MKR Board and the CAN ecosystem.

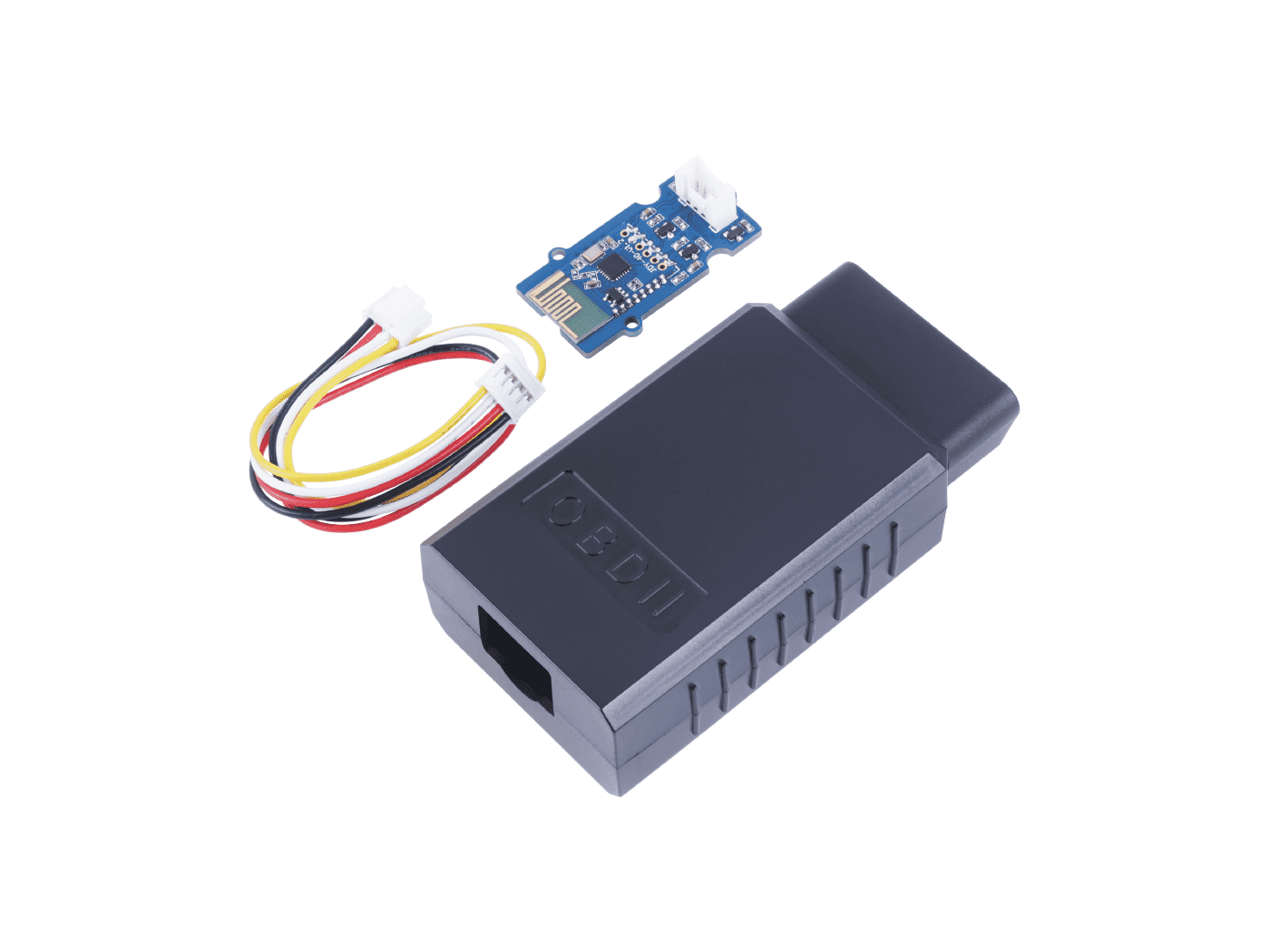

OBD-II CAN-BUS Development Kit

This kit is the perfect solution for you to communicate with your vehicle’s OBD-II interface without visiting a mechanic.

We also provide a tutorial which is based on Arduino and you can easily obtain data from your vehicle by following this tutorial.

I2C CAN-BUS Module based on MCP2551 and MCP2515

MCP2551 and MCP2515 I2C CAN-BUS Module enable your Arduino and other MCU to communicate to CAN-BUS to hack your vehicle. This module provides speed up to 1Mb/s. It also has a terminal block so you can connect to your vehicle’s OBD-II port with two wires.

Serial CAN-BUS Module based on MCP2551 and MCP2515

MCP2551 and MCP2515 Serial CAN-BUS Module enable your Arduino and other MCU to communicate to CAN-BUS to hack your vehicle.

This module provides speed up to 1Mb/s. It also has a terminal block so you can connect to your vehicle’s OBD-II port with two wires.

community

join Seeed discord Community

Join Seeed Discord, our developers and community members are ready to help you further.
