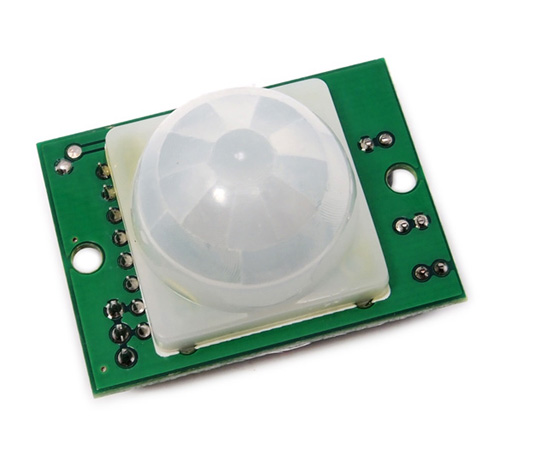

Highly integrated module popularly used for entry detection, it complies with microcontroller or DC loads.
Usage
Input voltage: DC 4.5-20V
Static current: 50uA
Output signal: 0,3V (Output high when motion detected)
Sentry angle: 110 degree
Sentry distance: max 7 m
Shunt for setting override trigger: H - Yes, L - No
Advantage
Simple，easy to adopt insystem.
Documents
Please visit ourwiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
Is there a LED inside the detector, like in some burglar alarm detectors? I am asking because I have my 12V power supply connected to "+" and "-", and I don't see any changes in the middle pin "out", it just stays low (0V). Trying to tell if my device is DOA or not.
No problems, though, as 3.3V is correctly read as HIGH by 5V logic.
Answered by W Sanders |
2013-03-24
Was this useful?0 of 0 people found this useful
See below - the output appears to be 3.3V HIGH, not TTL, regardless of power supply voltage. At least for my unit. No LED in the sensor.
This sensor gives a digital signal or analog in output?? It gives HIGH and LOW or another type of signal??
Thanks
Hi,you will get a TTL HIGH(or LOW)level from output.
Answered by Jacket Chueng |
2013-02-27
Was this useful?0 of 0 people found this useful
Displaying 1 to 2 (of 2 questions)
Page: 1
Matthew Taljaard | 2012-08-22
This is the only data sheet I can find for this product:
http://www.parallax.com/dl/docs/prod/audiovis/PIRSensor-V1.1.pdf
Hope this helps.
This produce is simple to use at a great price.
Was this useful? 0 of 0 people found this useful
Robert davis | 2011-10-20
I used a simple 555 timer circuit and an LM7805 along with a relay and a 12VDC wallwart to build a automatic closet light...super simple to use.
Was this useful? 1 of 1 people found this useful
Andy Oeyen | 2011-09-17
ouput is high for 2.15 seconds in L mode (jumper setting) and 4.15 seconds in H mode, which is a bit long for my application. The sensor work great though...
If anybody could help me with a more responsive sensor (_10$) I would appreciate it :)
Was this useful? 0 of 0 people found this useful
Richard Hyde | 2010-10-26

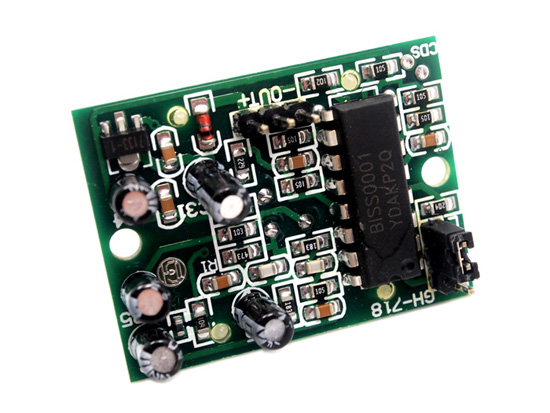

Is there a lowpass filter on these or what are all the components f0r?
Was this useful? 0 of 0 people found this useful
Hemant Bharad | 2010-09-07
Could any one help with the DataSheet
Was this useful? 0 of 0 people found this useful
Matt Ball | 2009-09-18
Garrett's right, the sensors are very quick to setup and easy use. They can detect large movements at around 20 feet. And I haven't found PIR modules for cheaper.
