Introduction: Enabling Flexible Wireless Connectivity for Next-Generation IoT Devices

The rapid growth of IoT applications has created increasingly diverse connectivity requirements. Different scenarios require different wireless technologies: Wi-Fi for high-speed data transmission and cloud connectivity, Bluetooth Low Energy (BLE) for low-power short-range communication, and LoRa for long-distance wireless communication in remote environments.

However, integrating multiple wireless protocols into a single IoT device often requires multiple communication chips, increasing hardware complexity, PCB design challenges, and development costs.

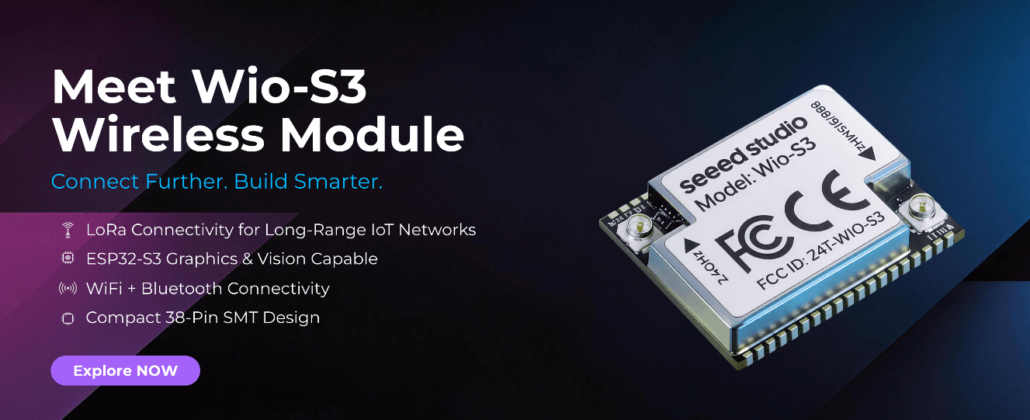

To simplify multi-protocol IoT development, Seeed Studio introduces the Wio-S3 Wireless Module, a compact and highly integrated solution that combines an ESP32-S3 MCU with an SX1262 LoRa transceiver. By integrating Wi-Fi, Bluetooth, and LoRa connectivity into a single module, Wio-S3 enables developers to build more flexible and scalable IoT devices with reduced hardware complexity.

Whether for smart agriculture, industrial monitoring, environmental sensing, or asset tracking, Wio-S3 provides a reliable wireless foundation for next-generation IoT applications.

Wio-S3 Architecture: Combining ESP32-S3 Processing Power with SX1262 LoRa Connectivity

At the core of Wio-S3 is the powerful ESP32-S3R8 dual-core Xtensa® LX7 MCU, delivering up to 240MHz processing performance and supporting advanced IoT applications that require local data processing.

The module integrates 16MB Flash, 8MB PSRAM, and built-in SRAM, providing sufficient memory resources for embedded applications, sensor data processing, and edge computing scenarios. This allows developers to implement application logic directly on the module without requiring an additional external MCU.

For long-range wireless communication, Wio-S3 integrates the Semtech SX1262 LoRa transceiver, supporting multiple LoRaWAN® frequency plans including EU868, US915, AS923, AU915, KR920, and IN865. With sensitivity up to -137dBm and output power up to 20.9dBm, Wio-S3 delivers reliable communication performance for long-distance IoT deployments.

By combining powerful processing capability with long-range connectivity, Wio-S3 provides a highly integrated wireless solution for modern IoT devices.

One Module, Three Wireless Protocols: Wi-Fi, BLE and LoRa

Wi-Fi Connectivity: Fast Data Transmission and Cloud Integration

Powered by ESP32-S3, Wio-S3 supports 2.4GHz Wi-Fi (IEEE 802.11 b/g/n), enabling fast communication with cloud platforms, local networks, and edge devices.

Wi-Fi connectivity makes Wio-S3 suitable for applications that require higher bandwidth, such as gateway communication, device management, firmware updates, and real-time data transmission.

Bluetooth Low Energy: Simplified Configuration and Local Communication

Wio-S3 supports Bluetooth 5.0 Low Energy, providing a convenient wireless interface for device configuration, mobile applications, and short-range communication.

Developers can use BLE to simplify the user experience by enabling smartphone setup and maintenance without additional interfaces.

LoRa Connectivity: Long-Range Communication for Remote IoT Applications

With the integrated SX1262 LoRa transceiver, Wio-S3 enables long-range wireless communication with excellent power efficiency.

LoRa connectivity is especially suitable for remote IoT scenarios where devices need to operate over large areas with limited power availability.

Designed for Flexible IoT Development

Beyond wireless connectivity, Wio-S3 provides rich hardware interfaces for flexible system integration.

The module features 38 SMT pins and supports multiple peripherals including:

• UART
• I2C
• SPI
• ADC
• PWM
• USB
• I2S
• SD/MMC
• CAN (TWAI®)
• Up to 25 GPIOs

These interfaces allow developers to easily connect sensors, peripherals, and external devices, making Wio-S3 suitable for customized IoT solutions.

Compact Design with Reliable RF Performance

With a compact size of 21.6mm × 16.5mm × 3.3mm, Wio-S3 provides a small footprint while integrating a powerful MCU, LoRa transceiver, memory resources, and multiple wireless capabilities.

To improve RF flexibility, Wio-S3 supports external antenna connections through IPEX connectors, allowing developers to select suitable antennas based on different deployment environments. The module provides independent antenna interfaces for Wi-Fi/Bluetooth and LoRa, enabling optimized wireless performance for various applications.

In addition, Wio-S3 is available in two versions to meet different integration requirements:

• Wio-S3 Wireless Module: Equipped with IPEX connectors for convenient antenna installation.
• Wio-S3-N Wireless Module: Provides RF pads for users who prefer custom antenna design or direct PCB integration.

This flexible hardware design helps developers accelerate product development while maintaining reliable wireless communication performance.

Low-Power Operation for Battery-Powered Applications

Wio-S3 integrates the advanced power management features of ESP32-S3 and supports multiple operating modes, including active mode, standby mode, light sleep, and deep sleep.

In deep sleep mode, Wio-S3 achieves ultra-low power consumption down to 9.3 μA, making it suitable for battery-powered IoT devices that require long-term operation.

Combined with LoRa’s low-power long-range communication capability, Wio-S3 enables developers to build efficient wireless sensor nodes for applications such as environmental monitoring, smart agriculture, and remote sensing.

One Module for Multiple IoT Scenarios

Fig. Reference design based on Wio-S3 module

1. Smart Agriculture

Connecting Remote Sensors Across Large Areas

Agricultural environments often require monitoring over large outdoor areas where traditional wireless technologies may have limited coverage.

With LoRa connectivity, Wio-S3 can enable long-distance communication between sensor nodes and gateways, supporting applications such as:

• Soil condition monitoring
• Weather data collection
• Greenhouse monitoring
• Irrigation management

Wi-Fi and BLE further simplify local configuration and system maintenance.

2. Industrial IoT

Reliable Communication for Industrial Monitoring

Industrial applications require reliable data collection and flexible connectivity options.

Wio-S3 combines local wireless communication and long-range transmission capabilities, making it suitable for:

• Equipment monitoring
• Remote sensor networks
• Industrial data acquisition
• Predictive maintenance systems

Developers can process sensor data locally through ESP32-S3 and transmit important information through LoRa or Wi-Fi based on application requirements.

3. Tracking

Tracking applications often require different positioning technologies depending on the deployment environment. Indoor and outdoor scenarios may require different approaches to achieve reliable location awareness.

With integrated Wi-Fi, BLE, and LoRa connectivity, Wio-S3 enables flexible location-based IoT solutions by supporting different positioning methods:

• BLE positioning enables indoor location tracking through Bluetooth beacons, making it suitable for environments such as warehouses, factories, and retail spaces.
• Wi-Fi connectivity can support positioning and provide convenient communication with cloud platforms for location data management.
• LoRa connectivity enables long-range data transmission from remote assets, allowing location-related information to be collected even in large-scale outdoor deployments.

By combining multiple wireless technologies, Wio-S3 provides a flexible foundation for developing asset tracking devices, smart logistics systems, and location IoT applications.

From smart agriculture and industrial monitoring to environmental sensing and tracking, Wio-S3 helps developers reduce hardware complexity, simplify product design, and accelerate the development of scalable IoT solutions.

Whether you are building a low-power sensor node, a connected device, or a large-scale IoT deployment, Wio-S3 provides the flexibility and reliability needed to bring your ideas from concept to reality.

If you have a large quantity request or need any further information about Seeed IIoT products and services, please don’t hesitate to contact us directly at [email protected].
