125Khz RFID module - UART

125Khz RFID module - UART

SKU 113990014
$12.50
11 Available
$12.50/1pcs+
$11.25/10pcs+
$10.63/20pcs+
$10.00/50pcs+
ADD TO CART

Description

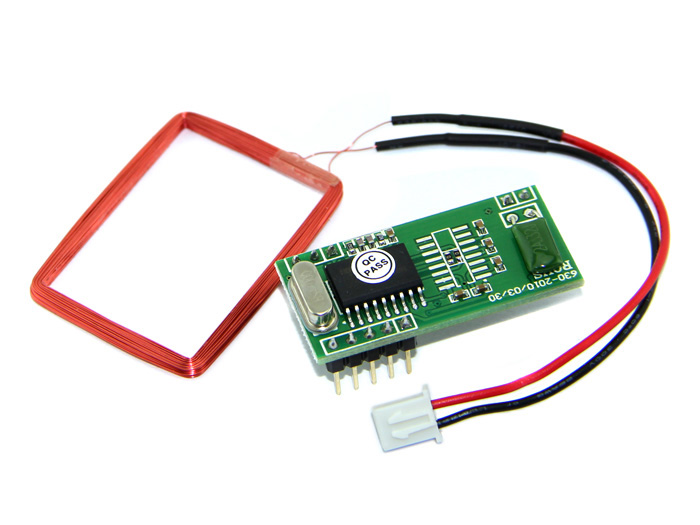

One of the coolest part of IoT project must be the identification technology, 125Khz RFID module – UART is the most popular RFID module that produced by Seeed, By connecting this RFID module to Arduino or Raspberry Pi, you are able to build projects that can be used in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.




Features
  • Support external antenna

  • Maximum effective distance up to 50mm

  • Less than 100ms decoding time

  • UART TTL interface

  • SupportEM4100compatibleread onlyorread/writetags

  • Built-in external bi-color LED and buzzer driver

  • Small outline design

Including:External Antenna *1

Note:Module will notify whenever 125khz tag approaches, tag serial number will be send via TX pin. Easy way for a RFID module on MCU projects or PC connnection via UartSB.

Documents

Please visit our wiki page for more info about this product. It will be appreciated if  you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.



Technical Details

WeightG.W 10g
BatteryExclude

Documents

Questions and Answers

SUBMIT
0
Hello, I have been trying to make this reader to work with my Arduino (Uno or Mega) with my company security card from HID (format H10301 at 125Khz) but I cannot read anything, anyone from here had successfull reading with HID card?
on Apr 24,2017
Replyupvote ()

Hello, you can try the card here

Thanks.

on Apr 25,2017 10:25 AM
Replyupvote ()
Thanks, but my point is that I want a cheap reader that would read my company card. Does anyone have a schematic of their connection with a Arduino?
on Apr 25,2017 21:53 PM
Replyupvote ()
There's an example here: http://wiki.seeed.cc/125Khz_RFID_module-UART/#exampelThanks.
on Apr 27,2017 18:48 PM
Replyupvote ()
Reply
0
Will this read the tags that are implanted in pets (US based)?
on May 17,2017
Replyupvote ()

Hello, I am sorry but we don't have the information you need.

Thanks.


on May 17,2017 10:23 AM
Replyupvote ()
Hey alanv73 I can confirm that this works with implantable chips, I have one in my hand and one in my dog, both work with this reader. however I know there are some proprietary chips out there such as the avid brand which i havent tested, so your mileage may vary
on May 24,2017 02:49 AM
Replyupvote ()
Reply
0
I tried this module with an avian leg tag like this http://www.buyrfid.co.uk/store/index.php?route=product/product&product_id=87&search=cyan It works perfectly. Now all I would like to do is use a different antenna as I have a significant investment in already made antennas. These are my antennas http://www.priority1design.com.au/shopfront/index.php?main_page=product_info&cPath=1&products_id=7 Is there a way to 'tune' this board to work with my antennas?
on Nov 18,2016
Replyupvote ()

Sorry,No way to to 'tune' this board to work with your  antennas.

on Nov 18,2016 13:41 PM
Replyupvote ()
Would it be possible to send me the antenna portion of the schematic? It appears to be just an opamp with some discretes, maybe I can modify it to suit my antennas.
on Nov 18,2016 22:39 PM
Replyupvote ()
Reply
0
Hello folks. I bought EM4100 tags from Amazon and this 125khz reader works great with them. But, the tags are printed on the outside with a unique code that is not the same as the ID that the reader sees. How to correlate the tag's printed code with the ID seen by the reader? Example: tag printed on plastic "0009429268" and reader sees "000042E1E5" in UART/TTL mode. Thanks!
on May 15,2017
Replyupvote ()
Answering my own question here... because I matched up the wrong TAG with the reader output. The value printed on my plastic tag is the decimal representation of the first 10 bytes of the reader output. So if the reader gives me 000042E1E5, then the tag should be printed with 0004383205. Easy enough when you organize your data correctly.
on May 15,2017 13:17 PM
Replyupvote ()
Reply
1
Can we use it to emulate a tag?
on Nov 21,2016
Replyupvote ()

125Khz RFID reader  is not compatible with Emulate tag. It supports only 125khz EM4100 compatible tags.

on Nov 23,2016 17:33 PM
Replyupvote ()
Reply
0
hello, what code is inside the mcu ?
on Dec 05,2016
Replyupvote ()
0

Can it write? Can it read anything beside the ID?

on Oct 19,2016
Replyupvote ()
0

Is there anyway to improve the distance in which it would pick up the RFID tags I'm using? Currently the tags have to be within 10-15mm of the actual antenna to set it off. Let me know. Thank you.

on Oct 19,2016
Replyupvote ()

The reading distance depends on many factors i.e tag size, antenna size, tag and antenna orientation, etc. In the current case you can use external booster circuit to improve reading distance.

on Oct 20,2016 10:51 AM
Replyupvote ()
Reply
0

HI , Does this module read nXp"HITAG S"Tags .

on Oct 19,2016
Replyupvote ()
