Audio Amplifier Module B25
SKU
317990021

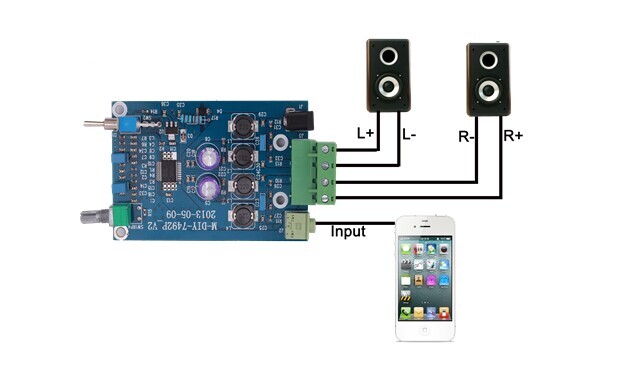

This music amplifier is a dual BTL class-D, able to deliver up to 2x25w into 8 ohm speakers, can be designed to display solution or other music player like iphone, ipod, MP3, cell phone, and so on
PRODUCT DETAILS
This music amplifier is a dual BTL class-D, able to deliver up to 2x25w into 8 ohm speakers, can be designed to display solution or other music player like iphone, ipod, MP3, cell phone, and so on.
Features:
- Volume control
- Audio output (L/R)
- Power switch
- 3.5 earphone input
- DC Power interface
Specification:
- SNR 90(db)
- DR 0.01%
- Input impedance@ Voltage 4Ω@12-18V, 6Ω@12-24V, 8Ω@12-26V
- size 100mm*66mm*16mm
- 25W + 25W continuous output power at
- THD = 10% with RL = 8 Ω and VCC = 25V
- Wide-range single-supply operation (8 - 26 V)
- High efficiency (η = 90%)
- Four selectable, fixed gain settings of nominally 21.6dB, 27.6dB, 31.1 dB and 33.6dB
- Differential inputs minimize common-mode noise
- Standby and mute features
- Short-circuit protection
- Thermal overload protection
- Externally synchronizable
- ECOPACK®, environmentally-friendly package
Technology support：[email protected]
Technical details
| Dimensions | 0mm x0mm x0mm |
| Weight | G.W 57g |
| Battery | Exclude |
ECCN/HTS
| HSCODE | 8518900090 |
