Clear Plastic Enclosure 55x145x222 mm

Clear Plastic Enclosure 55x145x222 mm

SKU 110990113
19.50
DISCONTINUED
This item is no longer available.

Description

Another upgraded version! This one is a big brother of the HF-H-3T. With a wider crystal upper cover and large capacity, it’s absolutely big enough to hold a waterproof project even with a display screen. Here are some details about this case.

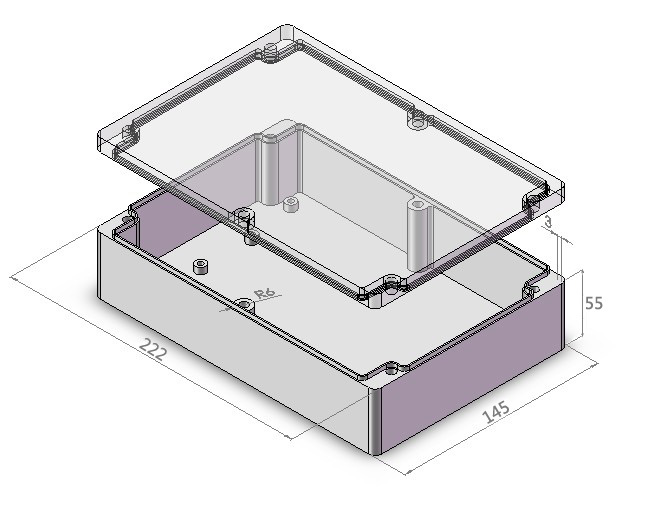

  • Inner dimension: 48x140x215mm; Out dimension: 55x145x222mm; Thickness:3mm; Upper cover Thickness: 4mm, Screw hole outer radius: R=6mm
  • Color: a crystal upper case and a gray button case
  • Including 6 screws to fix the upper and the button and one piece of elastic cord maybe you will need in case of tying something up
  • Made of plastic, durable and easy to drill or shape
  • Water proof

Technical Details

Dimensions0mm x 0mm x 0mm
WeightG.W 350g
BatteryExclude

ECCN/HTS

ECCNNot Available
HSCODE3923100090

Reviews

Questions and Answers

SUBMIT
0
Would a netduino plus with two shields (Grove Base shield + Solar Shield V2) stacked on top + a lipo battery (2A or 3A) and a 2.5W solar panel fit inside this enclosure?
on Oct 19,2016
Reply upvote ()
Yes, this enclosure is large enough for containing these modules.
on Oct 20,2016 10:43 AM
Reply upvote ()
Reply
0
Will this fit the #twatch? What case would you recommend for a #twatch?
on Oct 19,2016
Reply upvote ()
Hi there???what is #twatch you mean???
on Oct 20,2016 10:42 AM
Reply upvote ()
I look forward to the PCB, I was hoping for the promised 4-6 days.(If the file and design meets requirements, they will be processed and shipped in 4-6 days (Excluding the Chinese Festival).)
on Oct 20,2016 10:43 AM
Reply upvote ()
Reply
0
As I am going to buy the ARDX Arduino starter kit, I'm searching a case in which I can put in all the stuff of the kit, e.g. the Arduino Board, the breadboard, the wires, all the devices, the guides etc. Does this case fit for all these things? If not,
on Oct 19,2016
Reply upvote ()
Yes???it is large enough to fit for all the things of ARDX.
on Oct 20,2016 10:42 AM
Reply upvote ()
Hi Anton,sorry for the issue, we found there is no broad outline in your file, could you please correct it and resend to my address jianye.huang@seeedstudio.com?
on Oct 20,2016 10:43 AM
Reply upvote ()
Reply
0
I'm looking for a case for a project which use the 3W solar panel http://www.seeedstudio.com/dep... and wonders if that panel would fit in the upp
on Oct 19,2016
Reply upvote ()
Dear customer,You are right. It is not fit with 3w solar panel.The width because of R6 so become to 151-12-12=127mm.
on Oct 20,2016 10:41 AM
Reply upvote ()
Reply
