Description

Note:

This product has shipping restrictions for certain countries. It cannot be shipped to the following regions: China

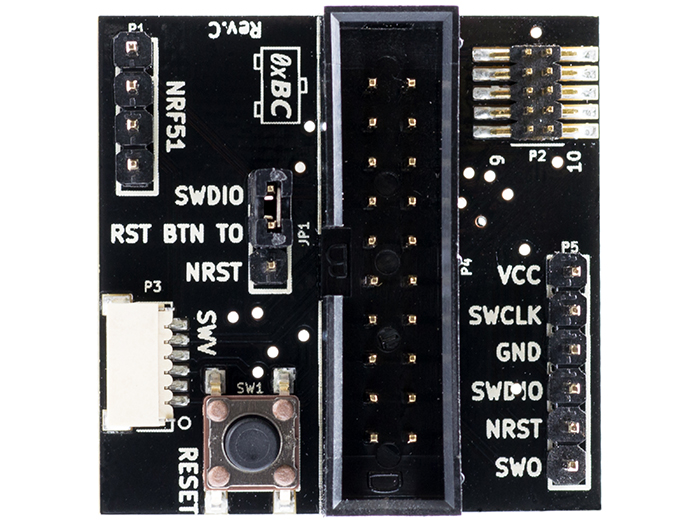

One of our goals is to make development with the Crazyflie 2.0 as easy as possible. But due to the platforms small size there are limitations on what connectors we can have. Therefore we designed a debug-adapter kit that makes connecting a debugger to either of the MCUs a lot easier, by converting the connector pinouts to standard JTAG and SWD pinouts.



This product is inteded to be used together with the Crazyflie 2.0.



Features

  • Includes everything needed to more easily debug the MCUs (STM32F4 and nRF51)

  • Multiple debug pinouts supported (including 20-pin JTAG and 10-pin Cortex debug)



Specification

  • Supported debugger pinouts:

  • Custom pinout that matches ST Discovery board debug interfaces

  • Standard Cortex SWV debug 2x6 1.27mm (50mil) SWV interface

  • Standard 2x10 2.54mm (100mil) JTAG interface

  • Has reset button with jumper for reset support on either STM32F4 and nRF51





Tech Support

If you have any further question for technical support, please contact [email protected]



Documents

Documents

Certification

HSCODE8538900000
USHSCODE8538901000
UPC841454110750
EUHSCODE8543709099
COOCHINA

Technical Details

Technical details

Dimensions0mm x0mm x0mm
WeightG.W 14g
BatteryExclude

Part List

Part List

Crazyflie 2.0 debug adapter1
nRF51 debug connector1
Nylon screw and nut for nRF51 debug connector1
6-pin debug cable for connecting to the Crazyflie 2.01

Crazyflie 2.0 debug adapter kit

SKU 114990118
Easily debug the MCUs (STM32F4 and nRF51) Multiple debug pinouts supported converting the connector pinouts to standard JTAG and SWD pinouts,bitcraze, bitcraze.io,crazyfly, crazieflie, crazieflie, crazy flie, crazie fly, crazy fly, drone
USD$33.00
