Current Assisted Class A Linear Amplifier (CSEVB6101R3)

SKU
107990012
Rating:
50% of 100
Rating:
50% of 100
$31.00
Out of stock
Qty Discount available
  • $29.45 /10pcs+

The amp is stereo efficient, digital amplifier power stage for driving speakers up to 2x10W/4Ω. The high efficiency of the amp allows it to do 2x10W/4Ω without external heat sink. This module has standby and mute function, so Arduino can control it how and when it works.
Features:
Supply Voltage ±2.5 ~ ±11 V
Audio In ±0.52V (max.)@±10V
Stereo Output Power 10WRMS per channel @ ±10V, 4 Ω (for CS6A4983)
Specification:

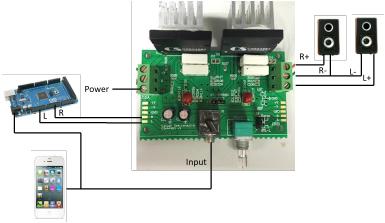

Connections
  • 3.5mm audio jack
  • Speakers screw wire connector
  • Power supply screw wire connector
Applications
  • Hifi Audio Power Amplifier
Part List:
1 x Current Assisted Class A Linear Amplifier
2 x chip
2 x heat sink
Technical support:support@canaan-semi.com

Technical details

Dimensions 80mm x120mm x22mm
Weight G.W 69g
Battery Exclude

ECCN/HTS

HSCODE 8518900090
