DSO Quad - Aluminium Alloy Black

SKU 109990015
  • Pocket-size open source 32bit digital storage oscilloscope
  • Two 72MS/s analog channels, plus two digital channels
  • Signal Generator
  • Auto Measurement
  • Various Triggering Option
Free Express Shipping on Orders over $200!
This product contains battery, might applys to shipping constriction.
$199.00
13 Available
Qty:
This field is required
ADD TO CART
$199.00 /each 1 pcs
$179.10 /each 10 pcs
Description

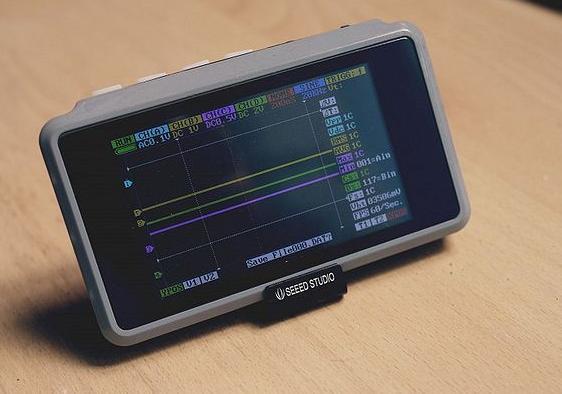

DSO Quad - Aluminum Alloy now is available at Seeed Studio. A new, rigid, elegant aluminum alloy shell makes the Quad even better. This is the coolest tool you should have on your workable!

DSO Quad is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.

Note: Due to the metal conductive shell of DSO Quad, its operating voltage should be controlled under 60V during working in case of any damage to the Quad itself or human.


FEATURES

  • • Pocket size and light weight
  • • Two 72MS/s analog channels, plus two digital channels
  • • Signal Generator
  • • Auto Measurement
  • • Various Triggering Option
  • • Easy waveform storage
  • • Firmware upgrade
  • • User applications
  • • Open source


SPECIFICATION

  • • Analog channel * 2 : [CH_A] [CH_B];
  • • Digital channel * 2 :  [CH_C] [CH_D];
  • • Vertical Scale: 20mV-10V/div (x1 probe);
  • • Vertical solution: 8 bit ;
  • • Input coupling: AC/DC ;
  • • Max input voltage: 80Vpp (x1 probe);
  • • Storage: 4K per channel
  • • Software trigger type: edge, pulse, level (to be added)
  • • Hardware trigger type: edge
  • • Trigger source: CH1/CH2/EXT
  • • Test Signal generator: 10Hz to 1Mhz
  • • Storage: internal 2MB USB disk
  • • Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
  • • Cursor measurement: Level, Voltage
  • • Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
  • • Sampling mode: real time
  • • Sampling rate: 1kSa/s - 72MSa/S
  • • Power: Lipo battery
  • • Dimension: 98 * 60 * 14.5
  • • Weight: 80g (without battery)
  • • Accessories within Pack: 2 mueller mcx oscilloscope probe, 2 digital probe,


PART LIST

  • • DSO Quad X1
  • • Battery X1
  • • Mueller mcx oscilloscope probe X2
  • • Digital probe X2
  • • Screwdriver X1
