DSO Quad - Aluminium Alloy Silver

SKU 109990016
  • Pocket-size open source 32bit digital storage oscilloscope
  • Two 72MS/s analog channels, plus two digital channels
  • Signal Generator
  • Auto Measurement
  • Various Triggering Option
    This product contains battery, might applys to shipping constriction.
    $199.00
    5 Available
    Qty:
    This field is required
    ADD TO CART
    Description

    DSO Quad – Aluminum Alloy now is available at Seeed Studio. A new, rigid, elegant aluminum alloy shell makes the Quad even better. This is the coolest tool you should have on your worktable!

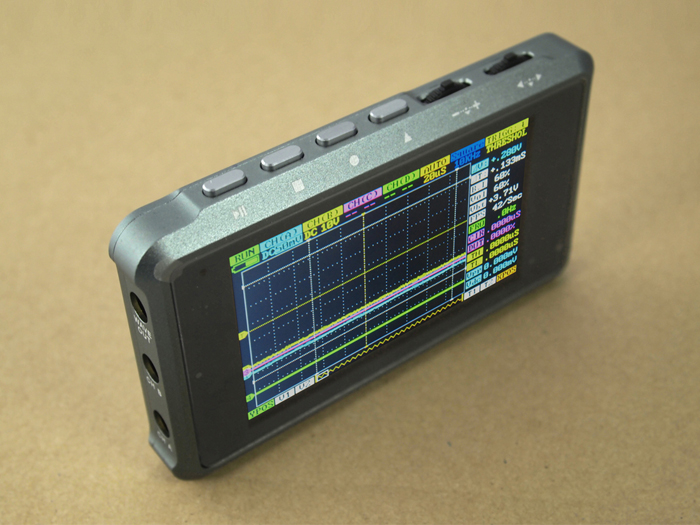

    DSO Quad is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.

    Note: Due to the metal conductive shell of DSO Quad, its operating voltage should be controlled under 60V during working in case of any damage to the Quad itself or human.


    Features

    • Pocket size and light weight

    • Two 72MS/s analog channels, plus two digital channels

    • Signal Generator

    • Auto Measurement

    • Various Triggering Option

    • Easy waveform storage

    • Firmware upgrade

    • User applications

    • Open source


    Specification

    • Analog channel * 2 : [CH_A]  [CH_B];

    • Digital channel * 2 :   [CH_C]  [CH_D];

    • Vertical Scale: 20mV-10V/div (x1 probe);

    • Vertical solution: 8 bit ;

    • Input coupling: AC/DC ;

    • Max input voltage: 80Vpp (x1 probe);

    • Storage: 4K per channel

    • Software trigger type: edge, pulse, level (to be added)

    • Hardware trigger type: edge

    • Trigger source: CH1/CH2/EXT

    • Test Signal generator: 10Hz to 1Mhz

    • Storage: internal 2MB USB disk

    • Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty

    • Cursor measurement: Level, Voltage

    • Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2

    • Sampling mode: real time

    • Sampling rate: 1kSa/s - 72MSa/S

    • Power: Lipo battery

    • Dimension: 98 * 60 * 14.5

    • Weight: 80g (without battery)

    • Accessories within Pack: 2 mueller mcx oscilloscope probe, 2 digital probe


    Part List

    • DSO Quad X1

    • Battery X1

    • Mueller mcx oscilloscope probe X2

    • Digital probe X2

    • Screwdriver X1


    Resources


    See More
    $50 Featured List
    $100 Featured List
    $200 Featured List
    Don’t miss out!
    Questions and Answers
    SUBMIT
    0
    where can I buy a replace battery?
    on Dec 07,2016
    Replyupvote ()

    Hi Astoru,

    I am sorry that we don't have the battery DSO Quad for sale.

    Please contact techsupport@seeed.cc for more details.

    Thanks.

    on Dec 08,2016 11:28 AM
    Replyupvote ()
    Reply
    0

    I'd really like to know what the bandwidth of the channels is please?

    on Oct 19,2016
    Replyupvote ()
    0

    Is there any software for PC/Mac/Linux to display the measurements on the computer?

    on Oct 19,2016
    Replyupvote ()

    hi, the 19.68054..is the eagle default size, you can enter your rquired size . but notice if you use our fusion PCB service, please make sure the drill size _12 mil.
    thanks.

    on Oct 20,2016 10:43 AM
    Replyupvote ()
    Reply
    0

    I have lost the leads to the DSO Quad 4-channel product. Assuming these are identical, is there a way to purchase replacements?

    on Oct 19,2016
    Replyupvote ()

    From what I can see with my order, the file name displayed on"Order Information"page is"D_order NB___uploaded PCB file_", so that it shouldn't be required anymore.

    on Oct 20,2016 10:43 AM
    Replyupvote ()
    Reply
    0

    I'm going to buy a silver version from a distributor in Europe (avoid fees). In fact it is the past bright one (limited edition). What is the difference with the dark one ?

    I think there is a carrying bag but no digital probes, is that true ?

    on Oct 19,2016
    Replyupvote ()

    Thank you, but I saw this on the description.
    There are diferent kinds of FR4 (glass-resin ratio differ this mean that it has different Er). For my design I need FR4 7628 substrate. It isn't unusual, but I want to ensure that you are using it.

    <
    on Oct 20,2016 10:43 AM
    Replyupvote ()
    Reply
    0

    Hi, we can see in some pictures that the DSO QUAD Aluminium Alloy exists in a much brighter silver version. Does it still exists and where can I buy it ?
    Also, I would like to know if a carrying bag is delivered with it because some pictures on the

    on Oct 19,2016
    Replyupvote ()

    Hi there, sorry, the brighter silver version is limited edition in past. it is out of stock, we have only two color in stock now. and there is no carrying bag for the version. but it have a whole packing box.

    on Oct 20,2016 10:44 AM
    Replyupvote ()
    Reply
