Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.
Features
  • Compact, Easy to Install


  • High Sealing Performance


  • High Quality Hall Effect Sensor

  • RoHS Compliant

Specifications
  • Mini. Wokring Voltage: DC 4.5V


  • Max. Working Current: 15mA (DC 5V)


  • Working Voltage: DC 5V~24V


  • Flow Rate Range: 2~100L/min


  • Load Capacity: ≤10mA (DC 5V)


  • Operating Temperature: ≤80℃


  • Liquid Temperature: ≤120℃


  • Operating Humidity: 35%~90%RH


  • Water Pressure: ≤1.75MPa


  • Storage Temperature: -25~+ 80℃


  • Storage Humidity: 25%~95%RH


Documents

Technical details

Dimensions 140mm x80mm x50mm
Weight G.W 162g
Battery Exclude

Part List

G1" Water Flow Sensor 1

ECCN/HTS

HSCODE 9026100000
ROHS 1

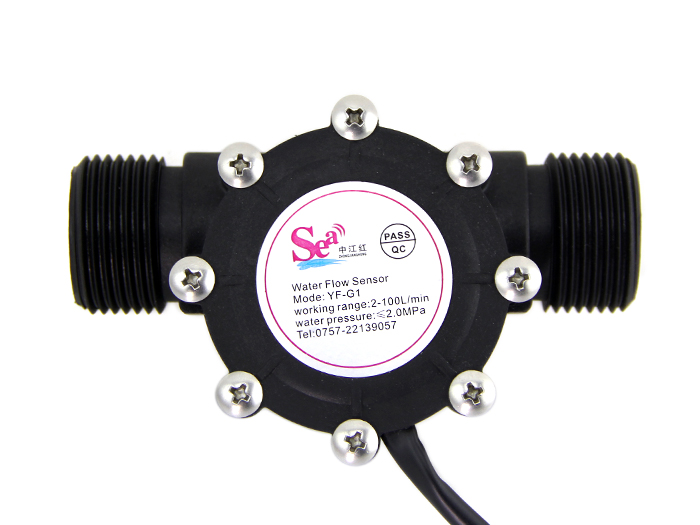

G1" Water Flow Sensor

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse Signal.
