The Infrared Emitter is used to transmit infrared signals through an infrared LED, while there is an Infrared receiver to get the signals on the other side . An infrared LED is like any other LED, with its color centered around 940nm. We can use the emitter not only to transmit data or commands, but also to emulate remotes to control your home appliance using an Arduino. The Infrared Emitter can transmit signals reliable up to 10 meters. Beyond 10 meters, the receiver may not get the signals.
Now the The Infrared Emitter v1.2 is available, we optimized the circuit design to increase the transmission distance.
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
|Dimensions||20mm x20mm x18mm|
|Grove - Infrared Emitter||1|
IR LaunchPad to LaunchPad Communication
Send text from one LaunchPad to another using the Grove IR emitter and receiver!
I was always curious about the firefly in my childhood. It is wonderful when it glows in the evening. I had my own “glowing firefly” after the chance to know about Techbox Tricks.

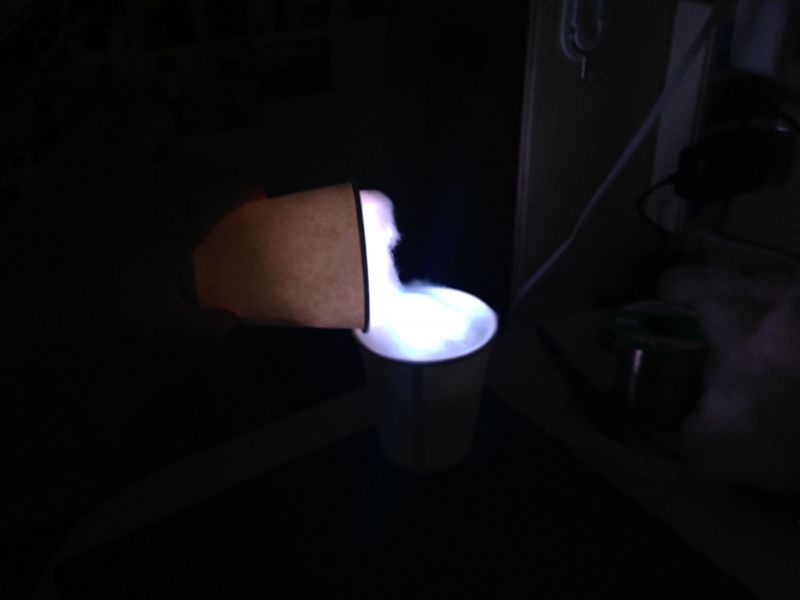

Light Pouring Cup
I caught the idea of “Light Pouring Cup” the evening I poured water from one cup into another. It would be cool if you can play with light in the dark.
Halloween is an autumn holiday that celebrate every year. In the “holy evening”, lovely children pick large orange pumpkins and carry bags from house to house saying “Trick or treat! Money or eat”.

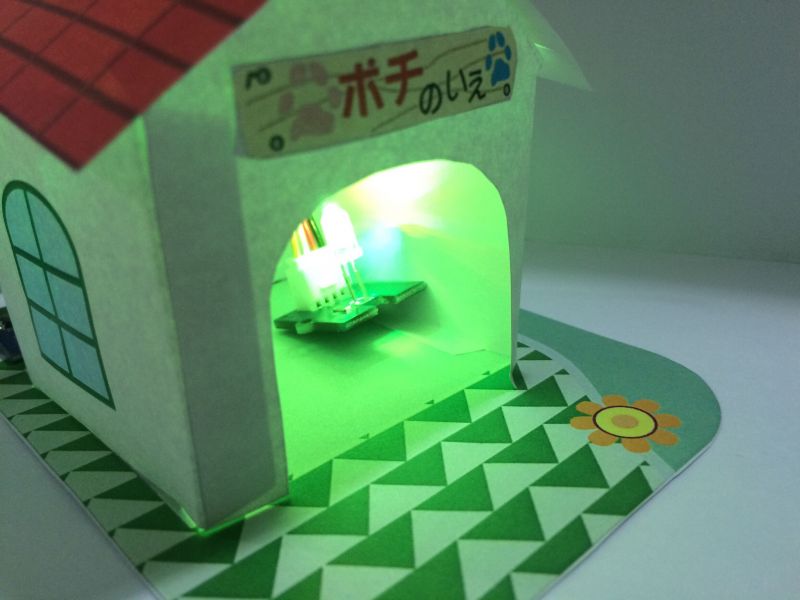

Pet House Alarm
Are you afraid of dogs? It can be true for most people. But sometimes you may approach a pet house with bad dogs inside by accident. What can we do to avoid things like this? Our cool play makers give us the answer!

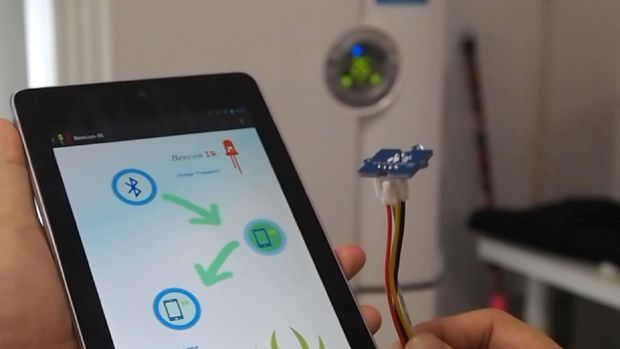

Remote control is almost a standard accessory for most home applications, like TV, air conditioner and so on. Dozens of companies have released many different kinds of IR remote control products. Like airbox from haier.
