Grove - OLED Display 1.12'' V2

SKU

101020452

Rating:

80% of 100

2 Reviews Add Your Review

The Grove - OLED Display 1

$14.90

Out of stock

10+: $13.41
20+: $12.66
More

50+: $11.92
Less

^ BACK TO TOP

PRODUCT DETAILS

The Grove - OLED Display 1.12'' V2 is a little elegant screen that can add a screen interaction feature to your Arduino. With the onboard 4-pin I2C Grove connector, you can plug-and-play with the screen and Arduino in no time.

This is the second version of our Grove - OLED Display 1,12'', it uses I2C interface. Compared with the Grove - OLED Display 1.12'', the Grove - OLED Display 1.12'' V2 is a monochrome display which means do not support 16 grayscale anymore. However, the removal of the gray level support increases the pixel speed by factor 4. In other words, the gray level support was exchanged for a huge performance boost. Additionally, the max I2C bus speed was increased from 100KHz (old 96x96) to 200KHz (V2). So all in all the new 128x128 display has an 8 times higher pixel speed, making it a super fast high-resolution display compared to the older one.

Special thanks to Oliver for contributing this description to us.

Technical details

Dimensions	40mm x40mm x12mm
Weight	G.W 15g
Battery	Exclude
Dot Matrix	128 x 128 pixels
Color	Grayscale Display (16 Gray shades)
Interface	I2C
Working Voltage	3.3v/5v
Supports both Normal and Inverse Color Display

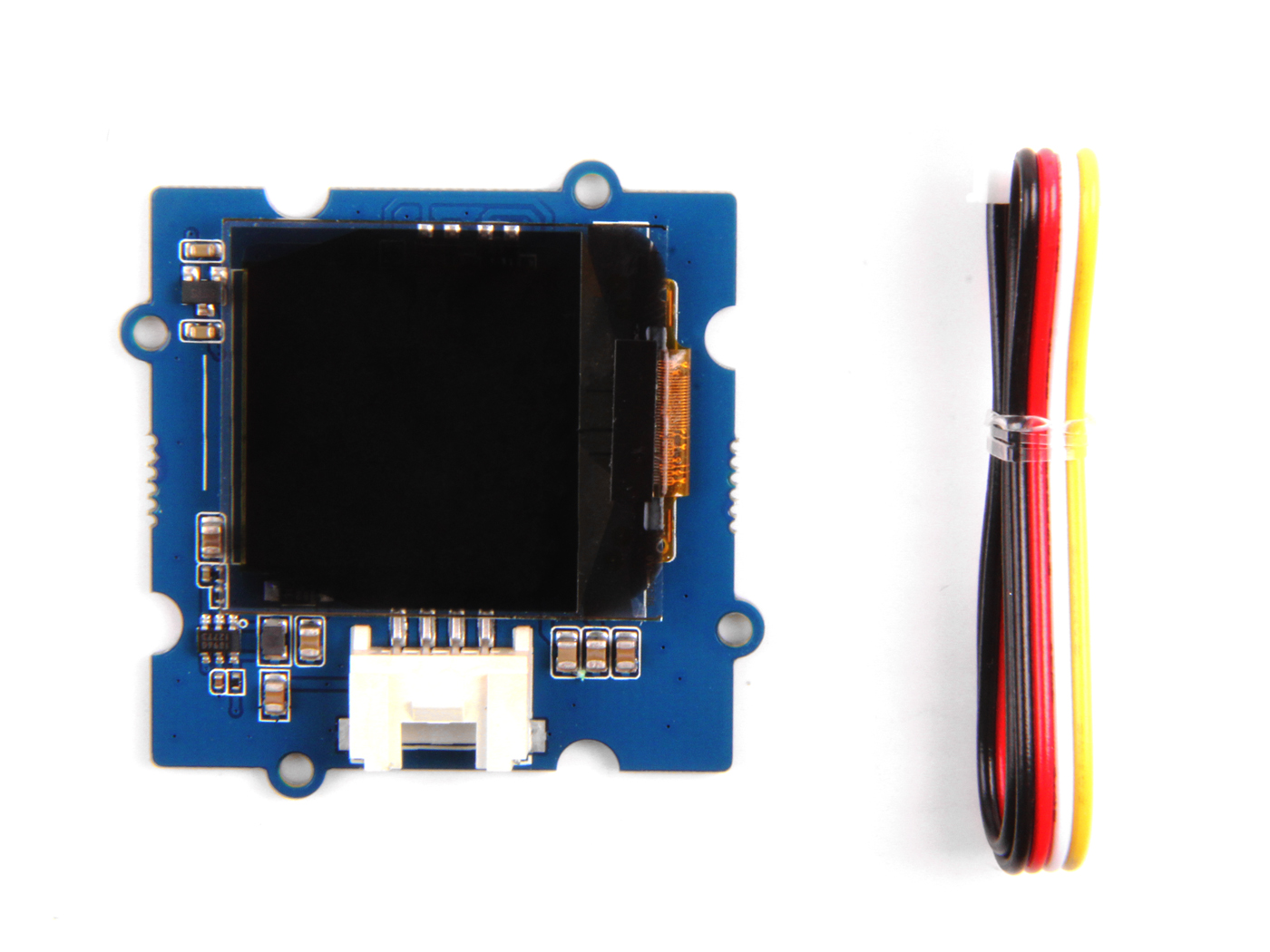

Part List

Grove - OLED Display 1.12'' V2	1
Grove Cable	1

ECCN/HTS

HSCODE	8531200000
USHSCODE	8531200040
UPC	841454120582

LEARN AND DOCUMENTS

Documentations

Resources

Learn

[] Drinking Reminder Water Bottle with AllThingsTalk

Do you often forget to drink water when you are busy? Welcome to try our drink reminder water bottle.

[] Environmental Sensor Tree

Show environmental parameters such as temperature, humidity and air quality when people come by.

[] Coronavirus Detector

A coronavirus detector based on Seeed Studio Grove - MLX90615 Digital Infrared Temperature Sensor.

[Project] Arduino Colored OLED

Make your projects colourful.

[Project] Grove Arduino Library for Kendryte K210

Running Arduino library with K210-based board.

[Project] Grove Sensor Test Box

If you are using Grove Sensors quite often then you need a Grove Sensor Test Box to quickly test your sensors before using in your projects!

[Project] DigiSpark ATtiny85 OLED Display Heart Rate Monitoring Card

A smart OLED-based identity card.

[Project] Coronavirus Detector

A coronavirus detector based on Seeed Studio Grove - MLX90615 Digital Infrared Temperature Sensor. Hope this guide will help you to find an unforgettable journey

[Project] Arduino Heart Beat with ECG Display & Sound

If you want a device that could measure your heartbeat and plot its curve trace on an OLED display, then this will be your best guide.

[Project] Buzz Lightning

Proximity sensor and alert system useful for home, workplace, and museum security.

[] Grove - OLED Display 1.12''

This is the wiki of Grove - OLED Display 1.12''

SHARED BY USERS

REVIEWS

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Rating
100%

Easy to use display

U8g2 Arduino Library recently added support for this display. It easily connects to the Grove world and works out of the box.

By olikraus

5/19/19
Rating
20%

No Grayscale

I ordered this one because it was written "16 grayscale". But there is no grayscale possible with this one. Chip is SH1107G which has no grayscale option. See the data sheet, page 4: "Grayscale 1 bit". Wrong advertising!!

By ID2019

1/30/19
