Description

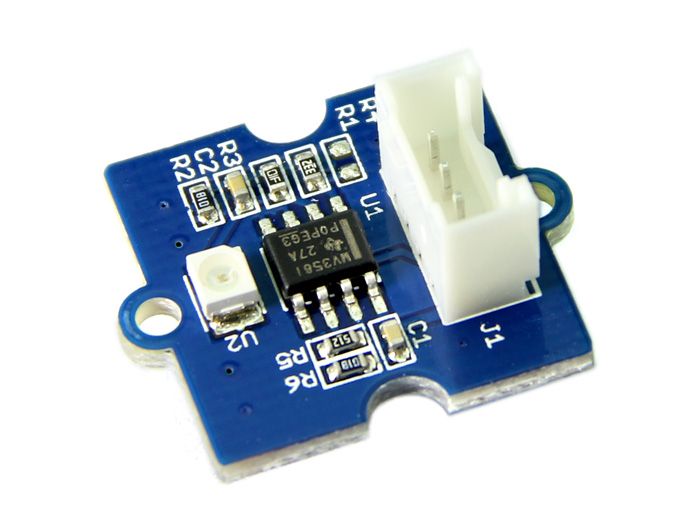

The Grove – UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation which is based on the sensor GUVA-S12D which has a wide spectral range of 200nm-400nm. It's used in many different applications, including pharmaceuticals, automobiles, and robotics.



Features

  • Excellent stability: The sensor works perfectly in extremely cold(-30℃) and hot temperatures(85℃) .
  • Outstanding sensitivity: Faster and more accurate reading of the results obtained by the sensor.
  • Wide response range: With the support of the sensor (GUVA-S12D), it have a wide spectral range of 240~370nm.
  • Low power consumption: 3.3/5V supply, suitable for many microcontrollers and SBCs.
  • Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.



Description

The Grove – UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation. This form of electromagnetic radiation has shorter wavelengths than visible radiation. The Grove - UV Sensor is based on the sensor GUVA-S12D which has a wide spectral range of 240~370nm. You can also use it to measure the UV Index which provides a scale to determine how intense the sun's UV is and therefore what kind of protective measures should be taken. For example, it will give your suggestion if it is a good idea to beach today.

The UV Index scale is published by the EPA and intended to give guidance to people on sun exposure and what protective measures to take to minimize damage from the sun.

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.



Application

  • Pharmaceuticals
  • Automobiles
  • Robotics
  • Printing industry for solvent handling and dyeing processes
  • Chemical industry for the production, storage, and transportation of chemicals as well



Specification

Dimensions

20mm x20mm x15mm

Weight

G.W 8g

Battery

Exclude

Operating Voltage

3.0~5.1V

Current

0.31mA

Response wavelength

240~370nm

Working Temperature

-30~85℃

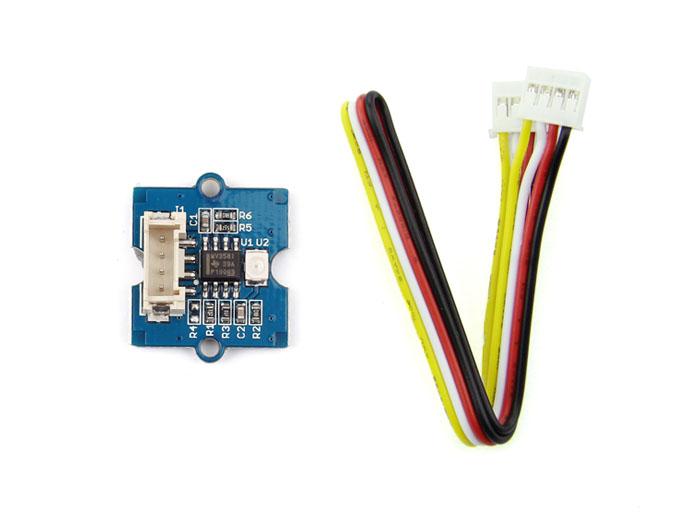

Part List

Grove - UV Sensor

1

Grove Cable

1



Documents

Certification

HSCODE9031900090
USHSCODE9031808085
UPC841454107392
EUHSCODE9013101000
COOCHINA

Grove - GUVA-S12D UV Sensor

SKU 101020043

The Grove – UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation. It is based on the sensor GUVA-S12D which has a wide spectral range of 240~370nm.

USD$10.90
