      LA2016 Logic Analyzer

      LA2016 Logic Analyzer

      SKU 109990065
      Read all 2 reviews
      $88.00
      6 Available
      $88.00/1pcs+
      $87.50/10pcs+

        I accept the restriction

      This development board can be only used for prototyping, it cannot be built into a product for commercial distribution. It cannot be re-sold or used as part of a production environment.

      Maximum Qty: 5

      Description

      LA2016 is a high-performance logic analyzer with 16 channels and 200M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.

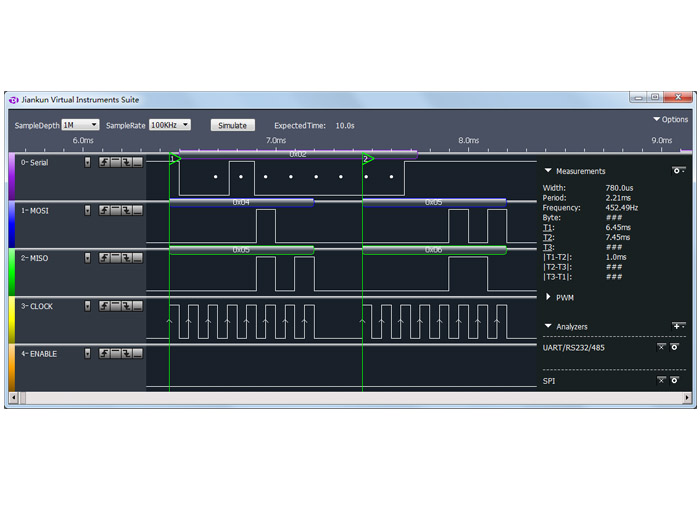

      LA2016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.



      Features

      • Portable and lightweight

      • 200M sampling rate @ full channels

      • Large sampling depth and support compression

      • The built-in PWM generator

      • Compatible USB2.0/3.0 interface

      • Powerful software and easy to use

      • Support online upgrade automatically






      Technical Details

      Dimensions255mm x 195mm x 55mm
      WeightG.W 407g
      BatteryExclude
      Input channels number16
      Max sampling rate200M
      Measurement bandwidth40M
      Min pulse width can be captured12.5ns
      Hardware memory size1Gbits
      Hardware sampling depth50M/channel
      Max compressed depth10G/channel
      Input voltage range-50V ~ +50V
      Input impedance220KΩ, 12pF
      Threshold voltagelow level < 0.8V, high level >1.6V
      PWM channels number2
      PWM frequency range0.1 ~ 20MHz
      PWM frequency adjust step10ns
      PWM pulse width adjust step5ns
      PWM output voltage+3.3V
      PWM output impedance50Ω
      Standby current150mA
      Max operating current300mA
      Support OSWindows XP, Vista, Windows 7/8(32bit/64bit)

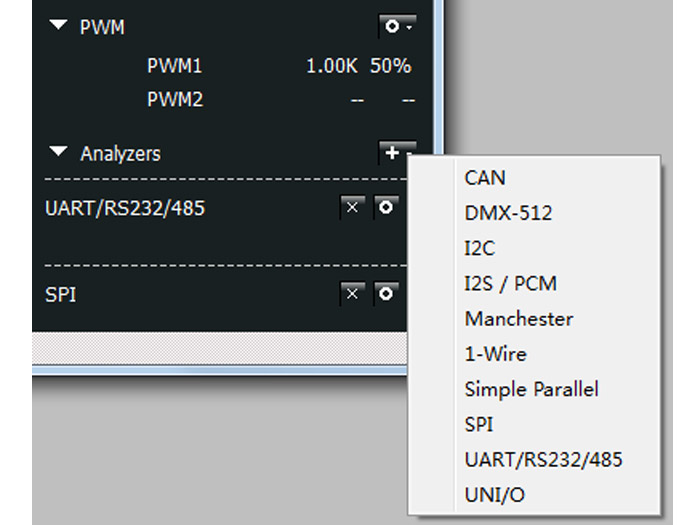

      Support standard protocolsUART(RS-232/485/422), I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, Simple Parallel, PS/2 Keyboard/Mouse, UNI/O, USB1.1

      Part List

      LA2016 Logic Analyzer11

      Documents

      Reviews

      Questions and Answers

      SUBMIT
      0
      LA2016 Logic analyser- does it wrok with Windows 10
      on Nov 05,2017
      Replyupvote ()
      Hi there~There is a great chance of supporting win10.But we do not test this product ourself, so not for sure.
      on Nov 14,2017 17:21 PM
      Replyupvote ()
      Reply
      1

      Are the logic analyzer brand new ? And the software with the sdk , are there going to be update (especially protocol) ? Regards.

      on Oct 19,2016
      Replyupvote ()
      <p>Yes，it's new.And the software will notify you automatically if any updates available.</p>
      on Oct 20,2016 10:50 AM
      Replyupvote ()
      Reply
