      LA5016 Logic Analyzer

      LA5016 Logic Analyzer

      SKU 109990066
      $109.00$168.00
      OUT OF STOCK
      This item is not available at the moment
      Get notified when it's back in stock

      Description

      LA5016 is a high-performance logic analyzer with 16 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.

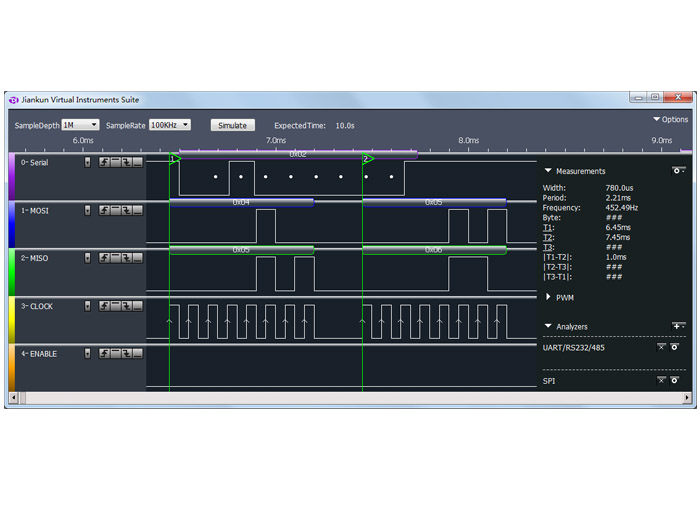

      LA5016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.



      Features

      • Portable and lightweight

      • 500M sampling rate @ full channels

      • Large sampling depth and support compression

      • The built-in PWM generator

      • Compatible USB2.0/3.0 interface

      • Powerful software and easy to use

      • Support online upgrade automatically


      Specifications

      • Input channels number: 16

      • Max sampling rate: 500M

      • Measurement bandwidth: 80M

      • Min pulse width can be captured: 6.25ns

      • Hardware memory size: 512Mbits

      • Hardware sampling depth: 32M/channel

      • Max compressed depth: 5G/channel

      • Input voltage range: -50V ~ +50V

      • Input impedance: 220KΩ, 12pF

      • Threshold voltage: low level < 1.0V, high level > 2.0V

      • PWM channels number: 2

      • PWM frequency range: 0.1 ~ 12.5MHz

      • PWM frequency adjust step: 8ns

      • PWM pulse width adjust step: 8ns

      • PWM output voltage: +3.3V

      • PWM output impedance: 50Ω

      • Standby current: 300mA

      • Max operating current: 550mA

      • Dimensions: 117mm * 79mm * 24mm

      • Support OS: Windows XP, Vista, Windows 7/8(32bit/64bit)

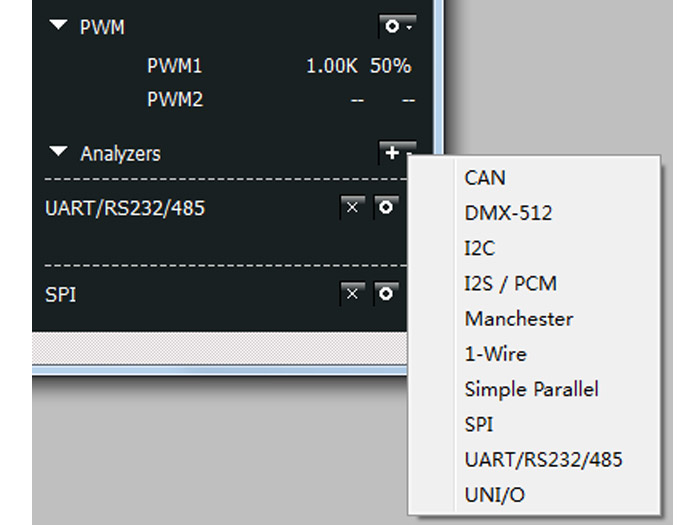

      • Support standard protocols: UART(RS-232/485/422), I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, Simple Parallel, PS/2 Keyboard/Mouse, UNI/O, USB1.1



      Software and user guide: http://www.kingst.org/download?fl=JkiSuiteSetup.zip

      Custom protocols SDK: http://www.kingst.org/download?fl=JkiAnalyzerSDK.zip

      For any technical support or suggestion, please kindly go to our forum.

      Technical Details

      Dimensions250mm x 195mm x 145mm
      WeightG.W 526g
      BatteryExclude

      Part List

      LA5016 Logic Analyzer1

      Reviews

      Questions and Answers

      SUBMIT
      0
      I cannot download software and SDK from link. How can I get them?
      on Mar 17,2017
      Replyupvote ()
      http://www.qdkingst.com/en
      on Mar 23,2017 19:22 PM
      Replyupvote ()
