Description

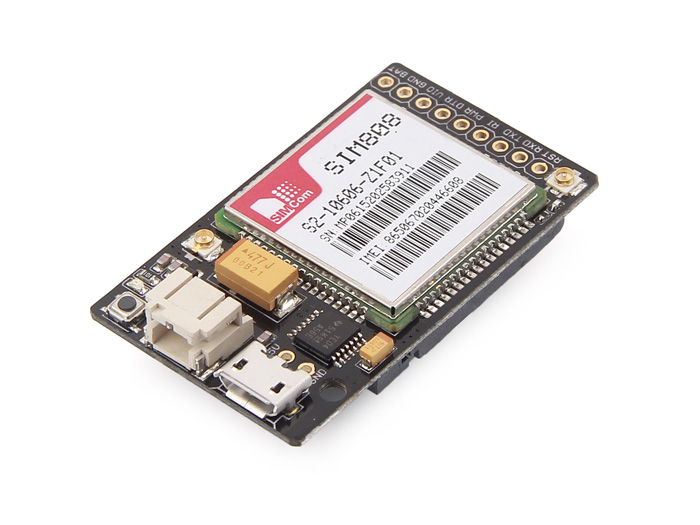

This board based on the latest SIMCOM SIM808 GSM/GPS module, it offers cellular GSM and GPRS data along with GPS technology for satellite navigation.


The board features ultra-low power consumption in sleep mode, giving the project incredibly long standby times. Furthermore there's an onboard battery charging circuit that can be used with LiPo batteries.


The GPS receiver is incredibly sensitive with 22 tracking and 66 acquisition channels, and also supports assisted-GPS (A-GPS) for indoor localisation.


The board is controlled by AT command via UART and supports 3.3V and 5V logical level. It comes with a mini GPS and GSM antenna, however a battery is optional.The board uses the 2G (not 3G or LTE) GSM networks.


Features

  • Quad-band 850/900/1800/1900MHz

  • GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)

  • GPRS mobile station class B

  • Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

  • Supports charging control for Li-Ion battery

  • Supports Real Time Clock

  • Supply voltage range 3.4V ~ 4.4V

  • Integrated GPS/CNSS and supports A-GPS

  • Supports 3.0V to 5.0V logic level

  • Low power consumption, 1mA in sleep mode

  • Supports GPS NMEA protocol

  • Compact size 27mm x 46mm x 7mm

  • Standard SIM Card

Certification

HSCODE8517709000
USHSCODE8517710000
UPC841454106197
COOCHINA

Technical Details

Technical details

Dimensions90mm x128mm x7mm
WeightG.W 15g
BatteryExclude
Receiver channels22 tracking / 66 acquisition
Coarse/Acquisition codeGPS L1
Tracking sensitivity-165dBm
Cold start time30s (typ.)
Hot start time1s (typ.)
Warm start time28s (typ.)
Horizontal position accuracy< 2.5m CEP
Power consumption - Acquisition42mA
Power consumption - Continuous tracking24mA
Update rate5Hz

Part List

Part List

LoNet 808 - Mini GSM/GPRS + GPS Breakout1
mini GPS passive antenna1
GSM antenna1

LoNet 808 - Mini GSM&GPRS + GPS Breakout

SKU 113990107
Quad-band 850/900/1800/1900MHz GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load) Integrated GPS/CNSS with A-GPS support Built-in charging circuit for Lipo batteries Low power consumption
USD$39.95
Discontinued
