$19.50
In stock
3 Available
-
+
Qty Discount available
  • $17.55 /10pcs+
  • $16.58 /20pcs+
  • $15.60 /50pcs+

The Motor Shield is a driver module for motors that allows you to use Arduino to control the working speed and direction of the motor. Based on the Dual Full-Bridge Drive Chip L298, it is able to drive two DC motors or a step motor. The Motor Shield can either be powered directly by Arduino or by an external 5V~15V power supply via the DC jack. This module can be used for the development of micro robots and intelligent vehicles, etc.


Features

  • Arduino/Seeeduino compatible

  • Standardized shape design

  • LED enable indicator

  • LED rotation direction indicator

  • Overcurrent turn-off

  • Built around the dual full-bridge drive chip L298

  • Overcurrent protection



Technical details

Dimensions 100mm x65mm x30mm
Weight G.W 62g
Battery Exclude

Part List

Motor Shield V2.0 1

ECCN/HTS

ECCN EAR99
HSCODE 8503001000

Seeed 2.0 Motor Shield Individual Control

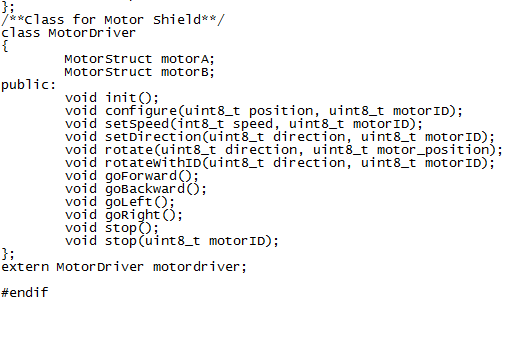

What I am posting came about as an investigation into how to control motors individually with the Seeedstudio 2.0 motor shield after seeing a question on the forums asking how to do so. I originally thought I was going to have to do something fancy to

Motor Shield V2.0

Wiki of Motor Shield V2.0
