Description


Peltire Plate, also semiconductor cooler, is a heat sink device taking advantage of the Peltier effect. It’s solid, reliable, noise free and vibration free, suitable for applications that have limits on space, noise and vibration.

Typical applications for Peltier plate are cooling systems for heating parts, like LED and chips. But they are also widely used in portable cooling device, like ice box.

Feature
  • Cooling speed is controllable via adjusting the operating electricity
  • Noise free, vibration free, friction free, reliable performance
  • Tiny size and light weight
  • No cooling liquid, environmental friendly
  • Can be used as heating device by changing the direction of electricity
Specification
  • Maximum Current : 4A
  • Maximum Voltage : 5.8V
  • Maximum Refrigerator Power : 13.7W
  • Maximum Temperature difference : 68℃

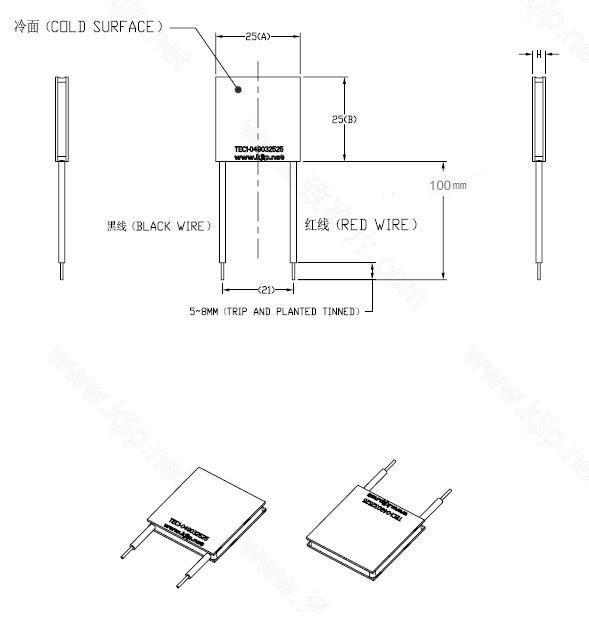

  • Dimensions(mm) : 25*25*3.7
  • Resistance : 1.16Ω
Type : TEC1-04904

Certification

HSCODE8541900000

Technical Details

Technical details

Dimensions0mm x0mm x0mm
WeightG.W 13g
BatteryExclude

TEC1-04904 Peltier Thermo-Electric Cooler Module&5.8V 4A

SKU 323010027
