Arch GPRS Kit

SKU 110060000
59.90
DISCONTINUED
This item is no longer available.

Description

Arch GPRS is similar to Seeeduino Arch, it also use Microcontroller LPC11U24. So you can use mbed compambed C/C++ SDK, libraries and optimizing online development tools to rapidly build a prototype. Arch GPRS is also a wireless network module based on EG-10, it can achive remote data colletion function to communicate with outside world by GPRS network. Arch GPRS has standard Arduino interface and Grove connectors. It’s convenient to connect existing Shields and Grove products to Arch GPRS. You can use the solar panel to charge for battery, and own to its low-power design, so Arch GPRS can work normally in outdoor.


Feature
  • mbed enabled
  • online development tools
  • easy to use C/C++ SDK
  • lots of published libraries, projects
  • NXP LPC11U24 Controller
  • Low power ARM Cortex-M0 Core
  • 32KB Flash, 8KB RAM, 4KB EEPROM
  • USB Device, 2xSPI, UART, I2C
  • EG-10 Module
  • Support wireless upgrade EG-10 firmware
  • Support external SIM card:1.8V/3.3V
  • Compatible standard AT Command
  • Equip with RTC function
  • Select automatically USB5V or Solar panel to charge a battery



Includes

  • Arch GPRS
  • Battery 1000mAh-3.7V
  • Solar Panel 5V-110mA

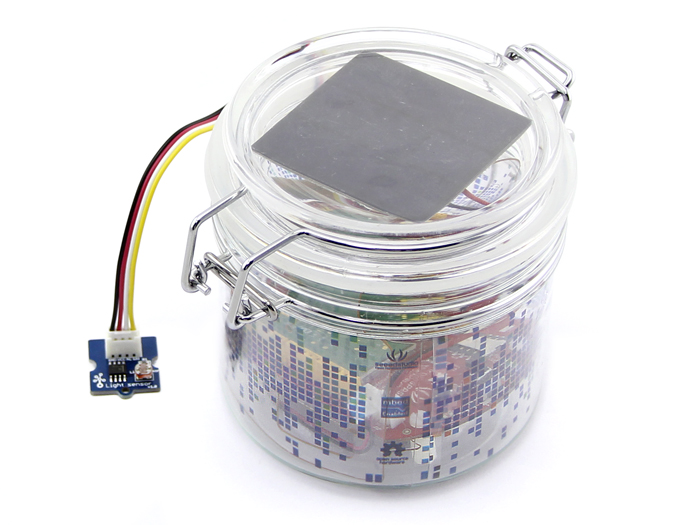

  • Waterproof Box



Documents

Please visit our wiki page for more info about this product. It will be appreciated if  you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

Technical Details

Dimensions0mm x 0mm x 0mm
WeightG.W 260g
BatteryExclude

ECCN/HTS

ECCNNot Available

Documents

Reviews

Questions and Answers

SUBMIT
0
How many analog grove sensor can be connected to this board? I hope that I can connect two grove sensor to measure environmental impact on traffic light area.
on Oct 19,2016
Reply upvote ()
There is one analog grove connector on the board. To use more analog groves, you can use a base shield.
on Oct 20,2016 10:47 AM
Reply upvote ()
