Grove - Ear-clip Heart Rate Sensor

Grove - Ear-clip Heart Rate Sensor

SKU 101020033
12.90
18 Available
$12.90/ 1pcs+
$11.61/ 10pcs+

Description

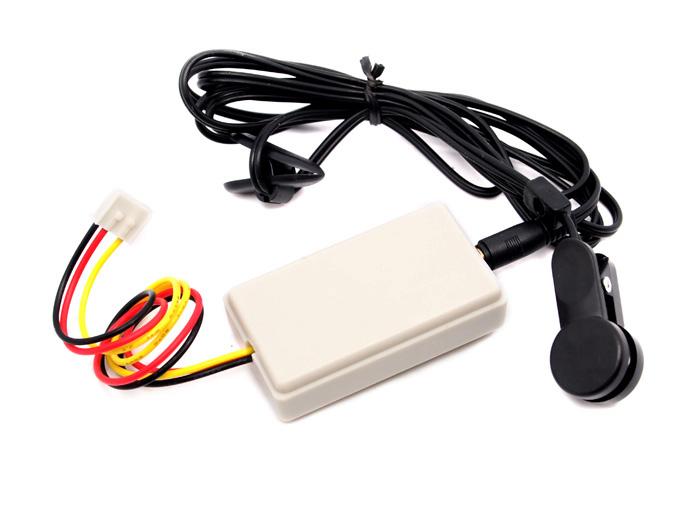

Heart rate ear clip kit contain a ear clip and a receiver module. The heart rate measure kit can be used to monitor heart rate of patient and athlete. The result can be displayed on a screen via the serial port and can be saved for analysis. The entire system has a high sensitivity, low power consumption and is very portable.



Features

  • Low power consumption

  • Wide power supply range: DC 3~5V

  • Convenient to use

  • High sensitivity


For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.


Technical Details

Dimensions0mm x 0mm x 0mm
WeightG.W 27g
BatteryExclude

Part List

Heart Rate Sensor with Grove Cable1
Ear clip cable1

ECCN/HTS

ECCN3A981
HSCODE9031809090

Reviews

Questions and Answers

SUBMIT
0
Is the transmitter frequency visible light or infrared?
on Feb 20,2018
Reply upvote ()
Hi Mike~ I'm afraid this sensor has nothing to do with light.It is not a light effect sensor.Regards
on Feb 25,2018 18:15 PM
Reply upvote ()
If it is not using infrared light, please explain how your sensor monitors heart rate.
on Feb 26,2018 03:18 AM
Reply upvote ()
Hi Mike~ Apologize for the mistake.You are right,this sensor uses infrared.Regards
on Feb 26,2018 11:14 AM
Reply upvote ()
Reply
0
it provide me good hear rate, but i want to know inter beat interval , i mean the time between two heart beat continuously, how can be this possible
on Feb 27,2018
Reply upvote ()
Hi there~ You can read the D2 pin, a high pulse comes when beating.So the time between two plus is the beat interval.Regards
on Feb 27,2018 11:12 AM
Reply upvote ()
would you like to help , how to measure that time between two pulses via arduino. actually its not giving me pulses, its providing heart rate
on Mar 02,2018 17:54 PM
Reply upvote ()
Reply
0
What sensor/microchip it use? It have a datasheet?
on Jul 09,2018
Reply upvote ()
Hi, there~ it using 2511B, you can seek the datasheet on Internet, Regards!
on Jul 10,2018 09:54 AM
Reply upvote ()
Reply
0
If i have to attach it with arduino, where should i plug the yellow wire in arduino
on Jan 30,2018
Reply upvote ()
Hi there~ Please attach the yellow wire with D2 pin of your Arduino.Regards
on Jan 31,2018 16:31 PM
Reply upvote ()
Reply
