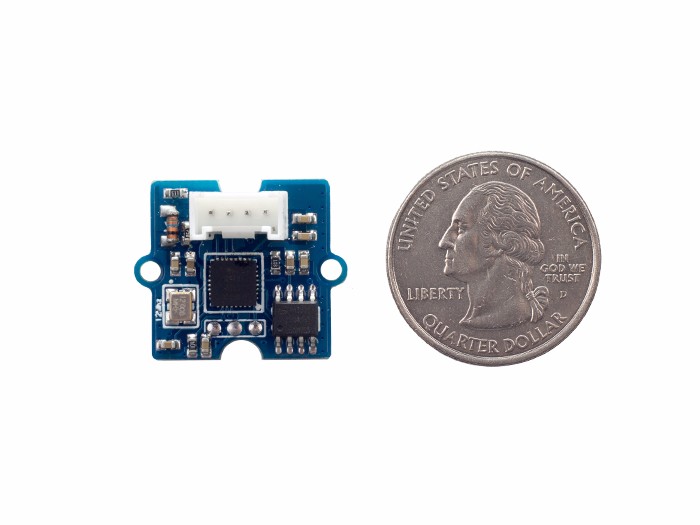

      Grove - Heelight Sensor

      Grove - Heelight Sensor

      SKU 101020312
      $7.90
      9 Available
      $7.90/1pcs+
      $6.90/10pcs+
      $6.40/20pcs+
      $5.90/50pcs+
      ADD TO CART

      Description


      Grove – Heelight Sensor is a smart voice sensor that can recognize up to 500 digital voice commands(Click to download the voice file). It was originally used on the Heelight – a smart colorful bulb that can be controlled by digital sound waves. With the heelight sensor, there is no need for bluetooth, wifi, or zigbee to do non-contact light control. Now we introduce this sensor into the small and neat Grove modules, allow you to realize smart control in your Arduino – based projects.


      Note: Please note that this sensor can only recognize digital voice. If you need human voice recognition module, please consider the Respeaker  or  Grove - Speech Recognizer.


      Features

      • Digital Voice Recognition

      • Support over 500 digital voice commands

      • Compatible with the Grove system


      Alternative Choice

      If you want to use Heelight Sensor on a bread board or integrate it to your own product/PCBA, there's a better choice for you---Heelight Core.


      Technical Details

      Dimensions20mm x 20mm x 10mm
      WeightG.W 7.8g    N.W 6.8g
      BatteryExclude
      Operating VoltageDC 3.3V~5V
      Operating Current15mA
      Identification Range0.1~10m
      Angle Range360°
      Baud Rate115200
      Serial Port OutputTTL logic level

      Part List

      Grove - Heelight Sensor1
      Grove cable1

      Reviews

      Questions and Answers

      SUBMIT
      2
      Can someone help with code the for the heelight ?I am trying to get the output of the Heelight to send the data in one "string" / not spaced out "FF FC..."Great product by the way!
      on Jun 28,2017
      Replyupvote ()
      to be clear--I saw the example code on the wiki pageI don't want to modify the code and remove "Serial.print(" ");" so it puts spaces What I am looking for is modified code that waits until the Heelight gives the four outputs of data (example "FF FC 0 9" -- but as one string "FFFC09" **all combined / no spaces If it helps more - what I am trying to do is implement a "Case statement" and do different things based on the data returned ... FFFC08 might make digital pin HIGH, FFFC09 might make a digital pin LOW
      on Jun 28,2017 21:22 PM
      Replyupvote ()
      Because you asked:www.seeed.cc/[FAQ]SJ4-asked-about-Grove-Heelight-Sensor-t-11961.html
      on Oct 16,2017 20:34 PM
      Replyupvote ()
      Reply
      1
      Where do I get code example for this sensor ?
      on Jun 07,2017
      Replyupvote ()
      Hello, the wiki which include a demo code will be coming soon.Thanks for you patience.
      on Jun 09,2017 17:06 PM
      Replyupvote ()
      Got it working in minutes:Code and example "digital" audio: http://wiki.seeed.cc/Grove-Heelight_Sensor/Connect RX (Heelight) to TX (Micro-controller) and TX (Heelight) to RX (Micro-controller).APPS: http://www.heelight.com/ and http://www.heelight.com/download/index_en.html (I haven't tried any yet).Technically, there is no such thing as "digital" sounds: I think they mean synthesised sounds! (synthesised only has a z in 'merican, not English!)
      on Oct 16,2017 19:47 PM
      Replyupvote ()
      https://github.com/SeeedDocument/Seeed-WiKi/compare/master...barsznica:patch-1
      on Oct 16,2017 20:40 PM
      Replyupvote ()
      Reply
      1
      Has anyone got this to work? I tried the wiki code example and also on Lotus and Mega with different port connections but could not get it to work under any condition.
      on Aug 18,2017
      Replyupvote ()
      See my reply above
      on Oct 16,2017 19:48 PM
      Replyupvote ()
      Reply
