RF Explorer 6G Combo Spectrum Analyzers

SKU
109990063
Rating:
98% of 100

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double-balanced mixer which offers high performance, compact size, low consumption, and low cost.

It has been designed to be used equally well indoor and outdoor and can be connected to a PC for extra functionality

-
+

PRODUCT DETAILS

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double-balanced mixer which offers high performance, compact size, low consumption and low cost.


It has been designed to be used equally well indoor and outdoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

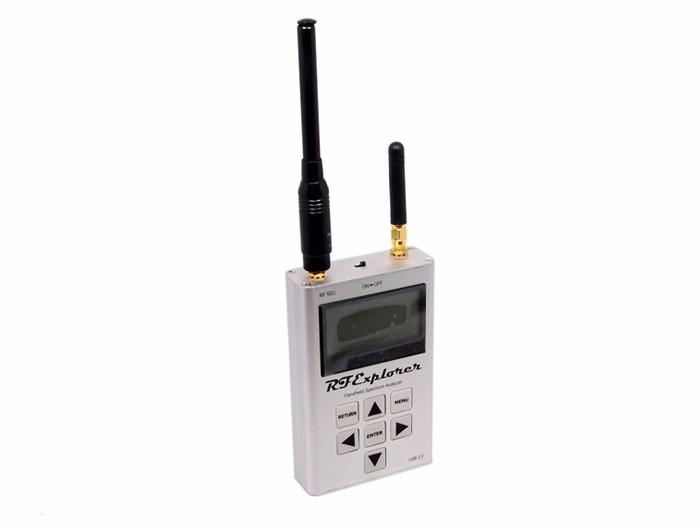

This model includes a 6G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and three antennas: a nice dual band telescopic 144/430MHz wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.


The combination of these two models offer coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.


Features


  • Pocket size and lightweight

  • Solid aluminum metal case

  • Includes a transport EVA carry case for RF Explorer

  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite, and Averaging modes

  • High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

  • Windows PC client Open Source

  • Wideband coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

Note: this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available. For signal generator and tracking please consider RF Explorer Signal Generator model RFE6GEN.


Tech support

For questions and support, please visit https://support.rf-explorer.com

If you'd like to buy or change the RF Explorer Battery, please click here.

Compliance

All RF Explorer models are complaint with FCC as well as CE regulations.

All RF Explorer Wideband models have been certified under EN/IEC61236 and EN/IEC61000.

All RF Explorer models are RoHS compliant

Technical details

Dimensions 113mm x0mm x0mm
Weight G.W 387g
Battery Lithium Cells / Batteries contained in equipment UN3481 - PI967
Frequency band 15-2700 MHz and 4850-6100MHz
Frequency span
Left SMA port (6G) 2-600Mhz
Right SMA port (WSUB3G) 112KHz - 600MHz
2 standard SMA 50 ohms Spectrum Analyzer connectors
Left SMA port (6G) 4850-6100MHz
Right SMA port (WSUB3G) 15-2700 MHz
Amplitude resolution 0.5dBm
Dynamic range
Left SMA port (6G) -105dBm to -15dBm
Right SMA port (WSUB3G) -110dBm to -10dBm
Absolute Max input power
Left SMA port (6G) +25dBm
Right SMA port (WSUB3G) +30dBm
Average noise level (typical) -105dBm
Frequency stability and accuracy (typical)
Left SMA port (6G) +-0.5ppm
Right SMA port (WSUB3G) +-10ppm
Amplitude stability and accuracy (typical)
Left SMA port (6G) +-3dBm
Right SMA port (WSUB3G) +-6dBm
Frequency resolution 1Khz
Resolution bandwidth (RBW)
Left SMA port (6G) automatic 58Khz to 812Khz
Right SMA port (WSUB3G) automatic 3Khz to 600Khz
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility

Part List

RF Explorer 6G Combo 1
Rubber duck 5.8GHz antenna 1
Nagoya NA773 wideband telescopic antenna 1
2.4GHz band antenna 1
EVA case 1

ECCN/HTS

HSCODE 9030401000
USHSCODE 9030890100
UPC 841454103950
CE 1

LEARN AND DOCUMENTS

Learn

You can find helpful videos on this youtube channel to get started with your RF Explorer!
The official Facebook Page of RF Explorer. You can stay up to date with the guides posting on the RF Explorer Facebook page.
This blog talks about what is an RF Explorer Spectrum Analyzer, the RF Explorer Spectrum Analyzer Product Family, and a comparison of different models.
The official introduction of all RF Explorer models. A Comparison chart is also included.

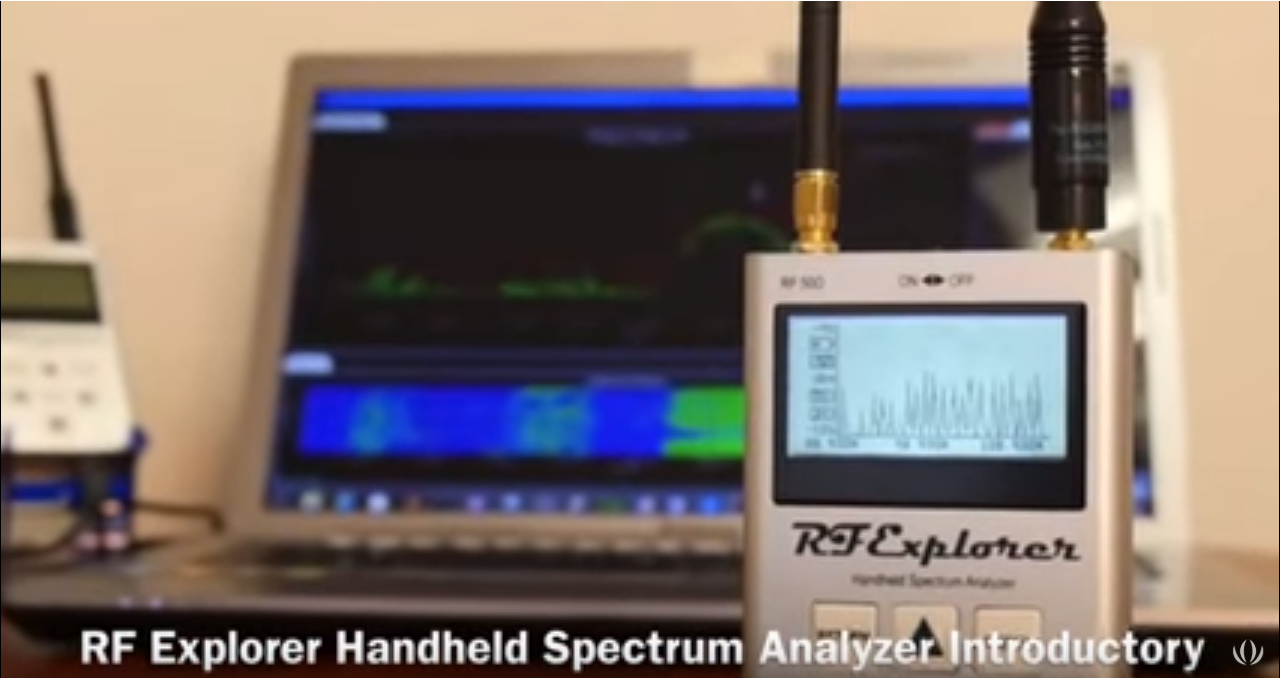

RF-Explorer 6G combo Spectrum analyzer video review
RFExplorer 6G - spectrum analyser for 5.8GHz FPV video
Official articles and FAQ collection. Our RF specialist have prepared the answer for all questions you might have!
This is a brief demo, simple display of RF Explorer for Windows tool working at 6GHz with a variable span up to 600MHz
RF introduction video
On this starting page, you can get everything you need to get your Spectrum Analyzer up and running. All documents, software downloads, and firmware upgrade details are available.
RF Explorer is a remarkable diagnostic tool used for monitoring and troubleshooting wireless systems and communications. It is a new series of low-cost, portable, RF spectrum analyzers designed by Ariel that are available in a variety of frequency ranges.
