ReSpeaker Core v2.0

ReSpeaker Core v2.0

SKU 102990883
99.00
50+ Available
$99.00/ 1pcs+
$95.00/ 10pcs+
$90.00/ 20pcs+
$85.00/ 50pcs+

Description

The ReSpeaker Core v2.0 allows developers create powerful and impactful voice and sound interfaces. Suitable to use as a base for smart assistance as well as responding to environmental sounds, the ReSpeaker Core v2.0 was designed with the idea that developers deserve to have many options available to them.

We received much feedback from ReSpeaker Core v1 users and have added many requested features. Different from the original board this SBC is running Debian* with an onboard microphone array and software based voice enhancement algorithms.


The Debian and Android is supported now, for more detail please check our wiki.






A High Performance Platform




The ReSpeaker Core v2.0 is powered by the Axol Core module, featuring the Rockchip RK3229 Quad-Core Cortex-A7 with a Mali 400MP GPU, 1GB of DDR3 RAM, and a PMU. The core runs the Debian OS. This provides developers with much more flexibility and resources to create their projects.

Around the core are peripherals including a Kingston 4GB eMMC to enable the OS to run onboard, a WiFi/BLE module, USB, Grove, and HDMI connectors, the on board 6-mic array, LED ring, and more.


An Onboard 6-Mic Array with Professional Voice Enhancement Algorithms


New in our ReSpeaker product line is a software based approach to voice enhancement. The more powerful Axol Core allows the Core v2.0 to process the audio received through the 6 far field microphones in real-time. The ReSpeaker Core v2.0 supports Noise Suppression (NS), Keyword Wakeup, Direction of Arrival (DoA), Beam-forming (BF), Acoustic Echo Cancellation (AEC). Our BF and AEC algorithms are provided by Alango, a professional audio DSP company used in the automotive industry.


An Open Software Ecosystem


We recognize that each project has different requirements and goals. As such we have worked to provide as much flexibility to developers as possible. Our quad-core solution allows us to run numerous software solutions. From the selection of algorithms, NLP services, smart assistants, operating systems, and more, we wish to support our users. If you have suggestions on what services you would like to see us officially support let us know on our forums, or if you enjoy the work yourself, submit a merge request to our github.


Audio and Video Output*


Audio output is available via the 3.5mm audio jack (output only), as well as a JST two pin connector and Bluetooth. The ReSpeaker Core v2.0 supports video output through HDMI* enabling developers to create rich visual interfaces to pair with a voice interface.


*GPU not fully implemented on Debian: 1080p video playback will be available July 2018. Android 8.1 will support 4k video on release.


Customization


The ReSpeaker Core v2.0 is ready for customization. To allow quick customization we separated the core and peripherals. If a project required a custom mic array solution we are able to quickly design and manufacture to help scale. Contact us at iot@seeed.cc to learn more.




Features

  • Debian-Based Linux System

  • SDK for Speech Algorithms with Full Documents

  • C++ SDK and Python Wrapper

  • Speech Algorithms and Features

    • Keyword Spotting (Wake-Up)

    • BF (Beamforming)

    • DoA (Direction of Arrival)

    • NS (Noise Suppression)

    • AEC (Acoustic Echo Cancellation) and AGC (Automatic Gain Control)

  • All-in-One Solution with High Performance SoC

  • 8 Channel ADC for 6 Microphone Array and 2 Loopbacks (Hardware Loopback)


Applications

  • Smart Speaker

  • Intelligent Voice Assistant System

  • Voice Recorder

  • Voice Conferencing System

  • Meeting Communication Equipment

  • Voice Interacting Robot

  • Car Voice Assistant

  • Other Scenarios Utilizing Voice Interfaces

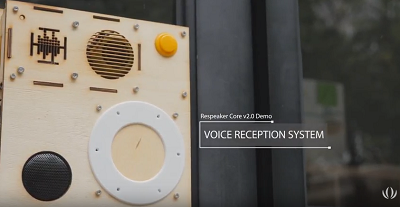

ReSpeaker Core v2.0 - Alexa Demo








Technical Details

Dimensions100mm x 96mm x 18mm
WeightG.W 180g     N.W 50g
BatteryExclude
Tips: G.W means the weight including the case / and the N.W is the weight without case, just the weight of ReSpeaker Core v2.0
ARM Quad-Core Cortex-A7 Up to 1.5GHz / ARM Mail-400MP2 GPU
1GB RAM DDR3
Audio and Video
Microphone 8 Channel ADC for 6 Microphone Array and 2 Loopbacks
Headset Connect 3.5mm Audio Headset Connector
Speaker Connector JST 2.0 Output Connector for 8 Ohm Speakers
Video Output HDMI 2.0* (Driver not yet available)
Connectivity
Wifi 802.11 b/g/n
Bluetooth/BLE Bluetooth 4.0 and Low Energy Dual-Mode
Ethernet Ethernet Interface Onboard
Storage
Flash 4GB eMMC On-board
Others SD Card Slot
Peripherals
3 x USB Host/OTG
1 x USB Power
1 x Grove Socket, Support I2C and Digital Port
6 x GPIO
1 x Debug UART
12 x Programmable LEDs

Part List

ReSpeaker Core v2.01
Micro USB Cable1

ECCN/HTS

ECCN3A991.a
HSCODE8518900090

Certification

RoHSCompliant
CertificationFCC,CE

Reviews

Questions and Answers

SUBMIT
0
Hi, can I use ReSpeaker Core v2.0 for google voice search on Android O? thanks.
on Jun 25,2018
Reply upvote ()
Hi, there-sorry, we now have not test this, you can try it yourself, thanks!
on Jun 27,2018 09:34 AM
Reply upvote ()
i don't have an ReSpeaker Core v2.0 yet, please test and let me know, can i buy ReSpeaker Core v2.0 from amazon?, and have a great day!
on Jun 27,2018 22:15 PM
Reply upvote ()
Hi dear~ We have tested, we failed to install the google voice. And yes, you can buy this product in Amazon. Please check the link below. Have a nice day. https://www.amazon.com/dp/B07DN43Q7L
on Jun 28,2018 13:42 PM
Reply upvote ()
Reply
0
I bought a ReSpeaker Core v2.0 and the DOA works awfully, I wrote to customer service a week ago and they still have not responded, does anyone have experience with the DOA measurements being too bad to be useful or should I send the product back and request a refund? I checked and all the microphones seem to be working well.
on Nov 13,2018
Reply upvote ()
Hi there, please provide the mail address and we will search the database. Which mail address do you send to? How do you test the DOA? For the DOA, there are 2 ways, one is python, please refer to **http://wiki.seeedstudio.com/ReSpeaker_Core_v2.0/#open-source-solution**, the other is c++, please refer to **http://respeaker.io/librespeaker_doc/classrespeaker_1_1SnowboyMbDoaKwsNode.html**. thanks.
on Nov 14,2018 11:33 AM
Reply upvote ()
Hello, I wrote to techsupport@seeed.cc and I am testing the DOA using the python solution, more specifically the ns_kws_doa.py file with a small modification so it would print the direction of the sound and not only of the keyword (I tried to reproduce this https://www.youtube.com/watch?v=XivM-6PRgX8): def on_detected(keyword): print('detected {} at direction {}'.format(keyword, doa.get_direction())) while True: print('detected at direction {}'.format(doa.get_direction())) time.sleep(1)
on Nov 14,2018 23:15 PM
Reply upvote ()
Reply
1
Will you release the case for the device?
on May 07,2018
Reply upvote ()
Hi there~ You can check our Wiki- Resource. We add both DXF and PDF files of the case. Regards
on May 07,2018 15:24 PM
Reply upvote ()
http://wiki.seeedstudio.com/ReSpeaker_Core_v2.0/#resources
on May 07,2018 15:24 PM
Reply upvote ()
Reply
0
Is this board supporting android?
on May 05,2018
Reply upvote ()
Hi there~ Unfortunately, the ReSpeaker Core v2.0 do not support android now. Regards
on May 07,2018 13:57 PM
Reply upvote ()
Hi q~ Now this board do support android 8.0, please check our wiki. Have a nice day~~~~http://wiki.seeedstudio.com/ReSpeaker_Core_v2.0/#running-with-android
on Jun 28,2018 13:45 PM
Reply upvote ()
Reply
0
What method is used for DoA? Is source code provided for this function?
on Mar 21,2018
Reply upvote ()
Hi Jerry~ The DoA arithmetic is provided by the third-party partner. Unfortunately, it is not an open source arithmetic. Regards
on Mar 22,2018 13:51 PM
Reply upvote ()
There is an open source implementation of DoA which is based on GCC-PHAT. See https://github.com/respeaker/mic_array
on Mar 26,2018 19:30 PM
Reply upvote ()
Reply
1
Hi. Can I use its USB OTS with USB audio gadget (f_UAC1)? If so, how to apply it instead of built-in serial gadget? thank you.
on Nov 20,2018
Reply upvote ()
Hi there, we do not test this function yet. we are afraid that we can not provide the support for this. thanks for understanding.
on Nov 21,2018 11:26 AM
Reply upvote ()
Reply
0
Is there a way to root the Android 8.1.0 image of this?
on Nov 05,2018
Reply upvote ()
Hi there, we do not test it yet. For the andriod, we can not provide the support in future. thanks.
on Nov 07,2018 10:54 AM
Reply upvote ()
Reply
0
Is there a way to root the Android 8.1.0 image of this?
on Nov 05,2018
Reply upvote ()
Hi there, we do not test it yet. For the andriod, we can not provide the support in future. thanks.
on Nov 07,2018 10:54 AM
Reply upvote ()
Reply
0
What's the difference in the far-field algorithm between Core v2.0 and Mic Array v2.0?
on Oct 08,2018
Reply upvote ()
Hi there, the core v2.0 uses the alango software algorithm and the mic array v2.0 uses the xmos dsp algorithm. both of them are not open source. for more info, please check wiki. thanks.
on Oct 09,2018 17:37 PM
Reply upvote ()
Reply
