Wio Node

SKU 102110057
  • The second member of Wio Link family
  • Cheaper, smaller and also lighter
  • Wio Link platform compatible
  • Compact design
  • 5 minutes to build IoT application
    $9.90
    HK: 50+ Available
    US: 3 Available
    The icon indicates that this product supports fulfillment by Amazon (FBA). Low cost and 48 hours delivery. Please note that this service is currently only valid for US orders and will be expanded to other countries soon.
    Qty:
    This field is required
    ADD TO CART
    Description

    Finally,  Wio Link now has a little brother – the Wio Node.

    Wio Node

    Wio Node was born with most of the features as its elder brother:

    • An  ESP8266 based open-source Wi-Fi development board

    • Supports Plug-n-Play Groves

    • Visual Configuration

    • OTA (Over-The-Air) Firmware Updates

    • RESTful APIs

    • IFTTT Application

    • Android & iOS APPs

    But it is cheaper,smaller and also lighter in weight.

    Even though the compact design only allows Wio Node to have two Grove connectors, it still offers as many as 2 Digital I/O, 1 Analog Input, 1 UART and 2 I2C interfaces to communicate with up to 42 (and more to come) Grove modules. Setting up an IoT device with Wio Node is piece of cake as all the Grove sensor/actuator modules can be visually configured to RESTful APIs on your mobile APPs, and the physical circuit connections does not involve any bread boarding, soldering, or wire jumpers, once you finish updating the firmware over-the-air (OTA), you’ll find out it only takes you 5 minutes to build an IoT application with the Wio Node.

    Owing to its low-cost, easy-to-use and compact design, Wio Node can be used to build an IoT system where a large amount of ‘things’ are required to be connected to the internet. We have provided detailed instructions and rich tutorials athttp://iot.seeed.cc/ to help you getting started with your Wio Node easily and quickly. You can also find out more interesting stuff at the Wio Community, where all the Wio fans gather to share their ideas and experiences.


    Features

    • Cheaper, lighter, smaller, and simpler

    • Built around ESP 8266 Wifi module

    • Supports Plug-n-Play Groves

    • Visual Configuration

    • OTA (Over-The-Air) Firmware Updates

    • RESTful APIs

    • IFTTT Application

    • Android & iOS APPs


    Specification

    • Wi-Fi Network Protocol: 802.11b/g/n

    • Wi-Fi Encryption Technologies: WEP/TKIP/AES

    • Expansion (2x Grove Connectors): UART0/I2C0/D0, Analog/I2C1/D1

    • Input Voltage: Battery holder: 3.0~4.2V, Micro USB: 5V

    • Operating Voltage: 3V3

    • Maximum Charge Current: 500mA

    • Digital I/O Pins: 4

    • Analog Input Pins:1

    • DC Current PER I/O PIN: 12mA

    • Flash Memory: 4MByte (W25Q32B)

    • Frequency of Crystal: 26MHz

    • Dimensions: 28mm x 28mm


    Recipte

    Check out the latest project of Wio Node - An Irrigation Control System Based on Wio Node.

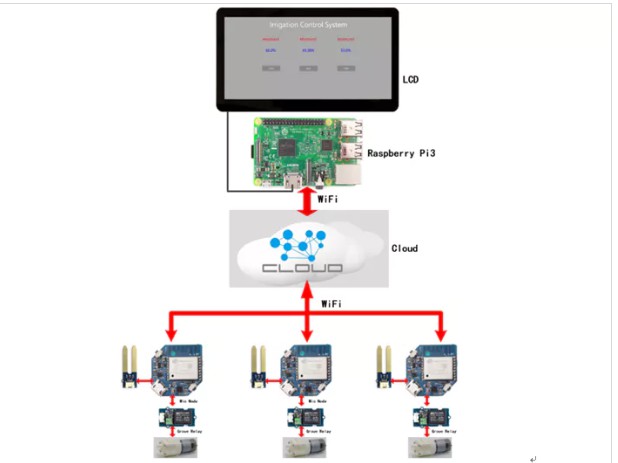

    An Irrigation Control System Based on Wio Node


    Part List

    • 1 x Wio Node


    Documents

    • For libraries and documents, please visit our Wikipage.

    • For technical discussion, please come to our Forum.

    • For projects that you would like to share with the community, please visit Recipe.
