Wio Link
  • Wio Link
  • Wio Link
  • Wio Link
  • Wio Link
  • Wio Link

Wio Link

SKU 102110037
  • Open-source Wi-Fi development board
  • ESP8266 based
  • Virtualizing plug-n-play modules
  • RESTful APIs with mobile APPs
  • 5 minutes to build IoT application
    $14.00
    50+ Available
    Qty:
    This field is required
    ADD TO CART
    $14.00/1pcs+
    $12.60/10pcs+
    $11.90/20pcs+
    $11.20/50pcs+
    Description

    For more information, please visitiot.seeed.cc.Wio Link

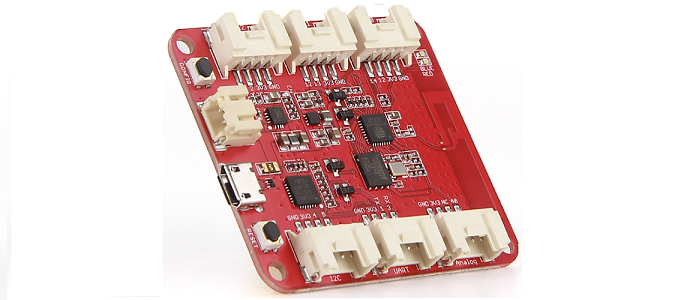

    Wio Link is designed to simplify your IoT development. It is an ESP8266 based open-source Wi-Fi development board to create IoT applications by virtualizing plug-n-play modules to RESTful APIs with mobile APPs.

    The traditional methodology of building IoT applications consists of electronic engineering, micro-controller programming, network programming, IoT protocols handling and application development. Every step involves various hardware and software knowledge and challenges.

    This time, we define a new way to create IoT applications. No hardware programming. No breadboard. No jumper wires. No soldering. 3 steps. 5 minutes. Build your own IoT applications!

    We are conducting a customer satisfation survey about Wio Link to improve the product, would you help us to do the survey? Thank you!image.png

    Features

    • Visual Configuration

    • OTA (Over-The-Air) Firmware Updates

    • Plug-n-Play Groves

    • IFTTT Application

    • Android & iOS APPs

    • RESTful APIs


    Specification

    • Wi-Fi Network Protocol: 802.11b/g/n

    • ŸWi-Fi Encryption Technologies: WEP/TKIP/AES

    • Input Voltage:Battery holder: 3.4~4.2V; MICRO USB: 5V

    • Output DC Current: 1000mA MAX

    • Operating Voltage : 3.3V

    • Charge Current: 500mA MAX

    • Flash Memory: 4MByte

    • Size:  55mm*48mm

    • Weight: 26g

    • CE/FCC/IC Certified

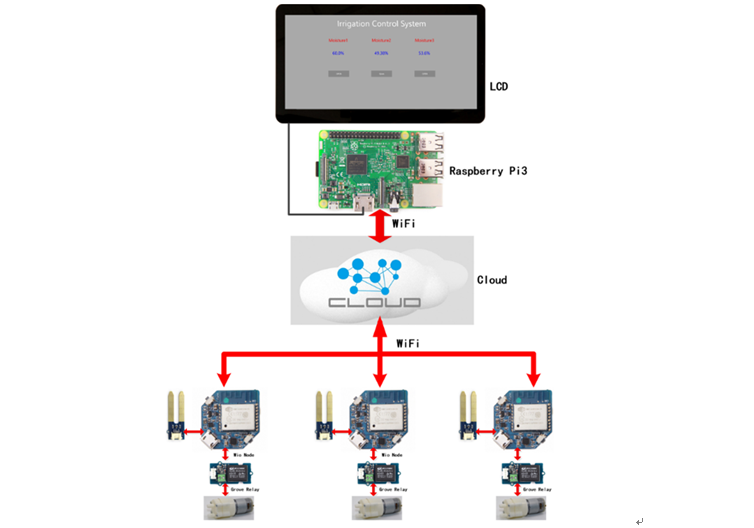

    BASIC DEMOBasic Demo

    Learn more at our Recipe.

    Basic Demo

    Learn more at our Recipe.

    Basic Demo

    Learn more at our Recipe.

    Basic Demo

    Learn more at our Recipe.

    Basic Demo

    Learn more at our Recipe.


    Part List

    • Wio Link * 1

    • USB cable * 1


    Documents

    Please visit our Wiki page for more information about this product. It will be much appreciated if you can help improve the documents, add more demo codes or tutorials. For technical support, please post your questions to our Forum.

    See More
    $50 Featured List
    $100 Featured List
    $200 Featured List
    Don’t miss out!
    Questions and Answers
    SUBMIT
    1
    Does each digital out grove head control only 1 pin or can you control two?
    on Apr 18,2017
    Replyupvote ()

    Hello, than depends on the Grove modules, if the Grove need 2 wires, then a head can control one.

    Thanks.

    on Apr 18,2017 14:03 PM
    Replyupvote ()
    Reply
    See More
