Top 10 ESP32 CAM Case Designs for DIY, IoT, and Smart Camera Projects
An ESP32 cam case is often the missing piece that transforms a bare camera module into a dependable real-world solution. Thanks to their low cost and flexibility, ESP32-based cameras are widely used in IoT and maker projects such as home security, wildlife monitoring, 3D printer timelapses, and robotics vision. Popular options like the Ai Thinker ESP32-CAM and compact boards such as our Seeed Studio XIAO ESP32-S3 Sense give makers multiple ways to add camera functionality to their builds.
Choosing the right ESP32 cam enclosure is just as important as selecting the board itself. A well-designed case protects the electronics, improves mounting and cable management, and helps maintain reliable wireless performance. In this guide, we highlight the top 10 ESP32 CAM cases, explore where to find quality ESP32 cam case STL files, and share practical design tips and real-world examples to help you pick the best enclosure for your next project.
Why Your ESP32-CAM Needs a Protective Case
A well-designed ESP32 cam enclosure is more than just an aesthetic upgrade—it’s a practical necessity for long-term reliability.
1. Protection from Dust, Moisture & Physical Damage
Bare ESP32-CAM boards are exposed to accidental bumps, debris, condensation, and environmental hazards. A case shields delicate components and helps extend the module’s lifespan.
2. Heat Dissipation Considerations
ESP32 cameras generate heat during streaming or continuous processing. A thoughtfully constructed ESP32 cam case 3d print includes ventilation slots or heat-sink allowances to maintain stable temperatures.
3. Professional Appearance
For commercial or client-facing installations, a polished enclosure gives your project a finished, professional look.
4. Easy Mounting & Installation
Most cases provide screw holes, wall mounts, tripod compatibility, magnetic bases, or cable-tie guides—making installation simple and secure.
Top 10 DIY ESP32 Cam Cases

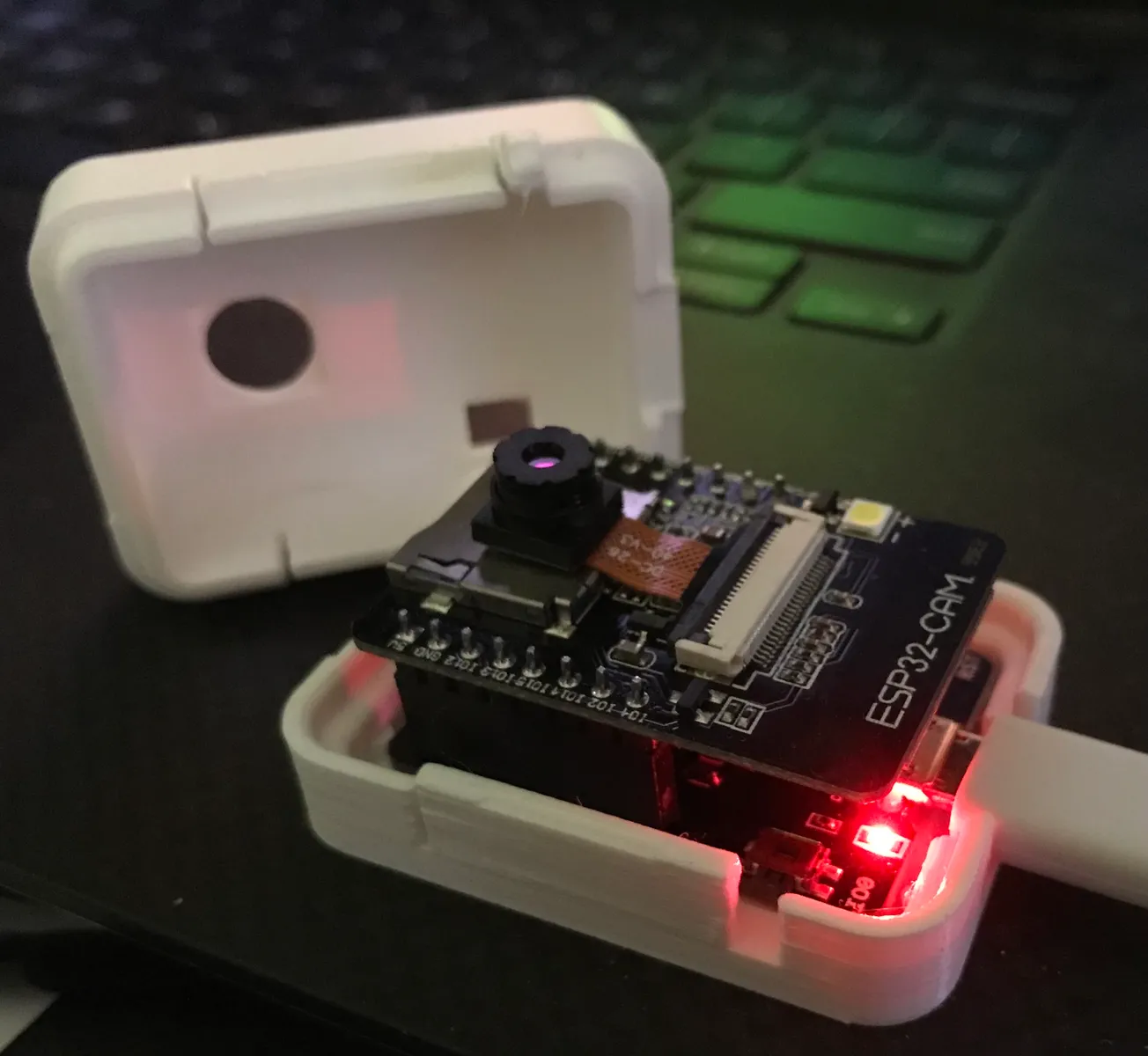

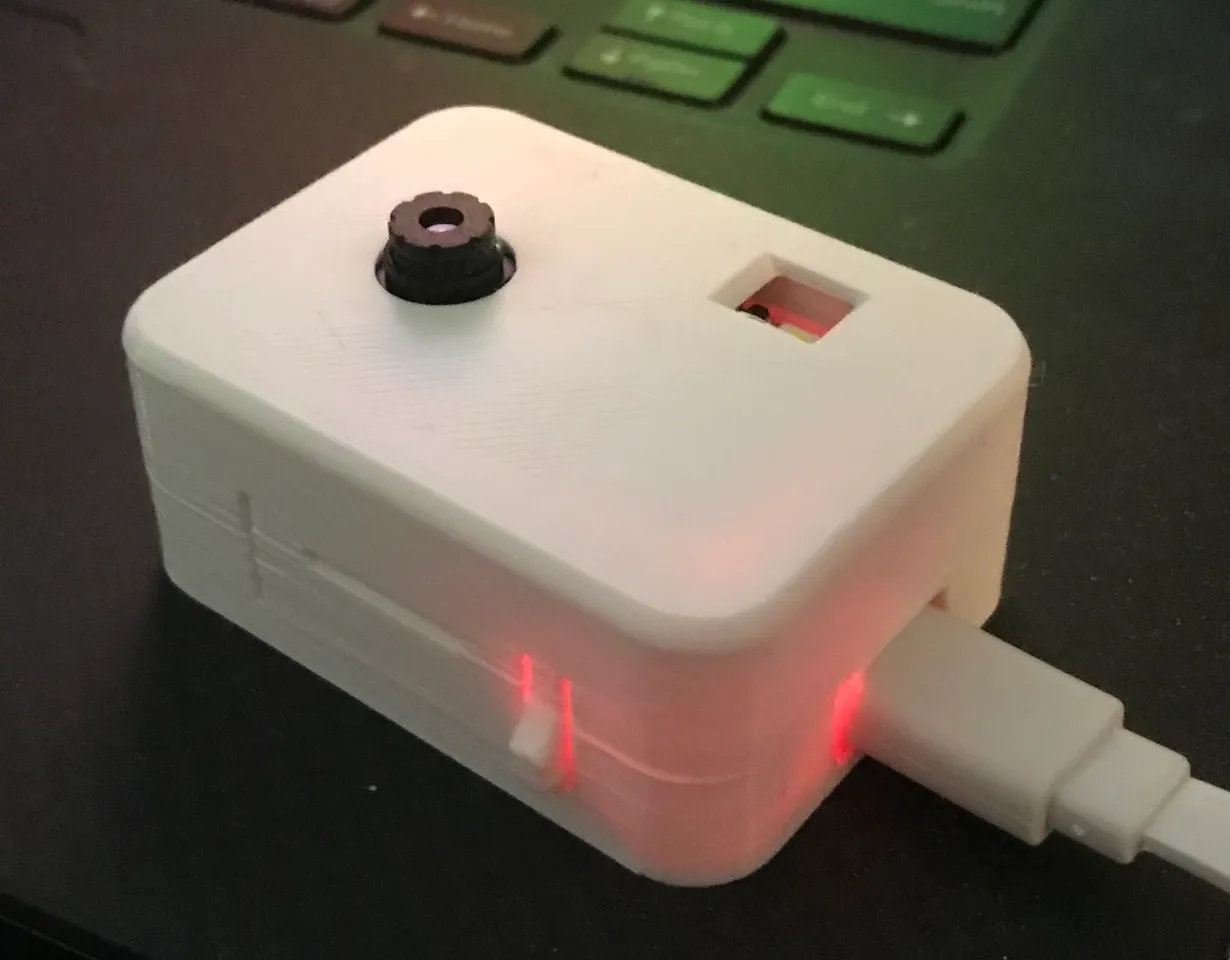

1. Best Overall ESP32 Cam Case
ESP32-CAM Case by bkgoodman
Description & Key features: A compact, snap-together ESP32 cam case designed for the ESP32-CAM with the USB/power board attached. It features clean cutouts for the camera, illumination LED, and side buttons, allowing full access without opening the enclosure. The tool-free snap-fit design makes it quick to assemble and beginner-friendly.
Material Used: PLA
Download: Printables model – ESP32-CAM Case
Best Use Case:General-purpose builds such as printer monitoring, smart home cameras, and indoor security projects.

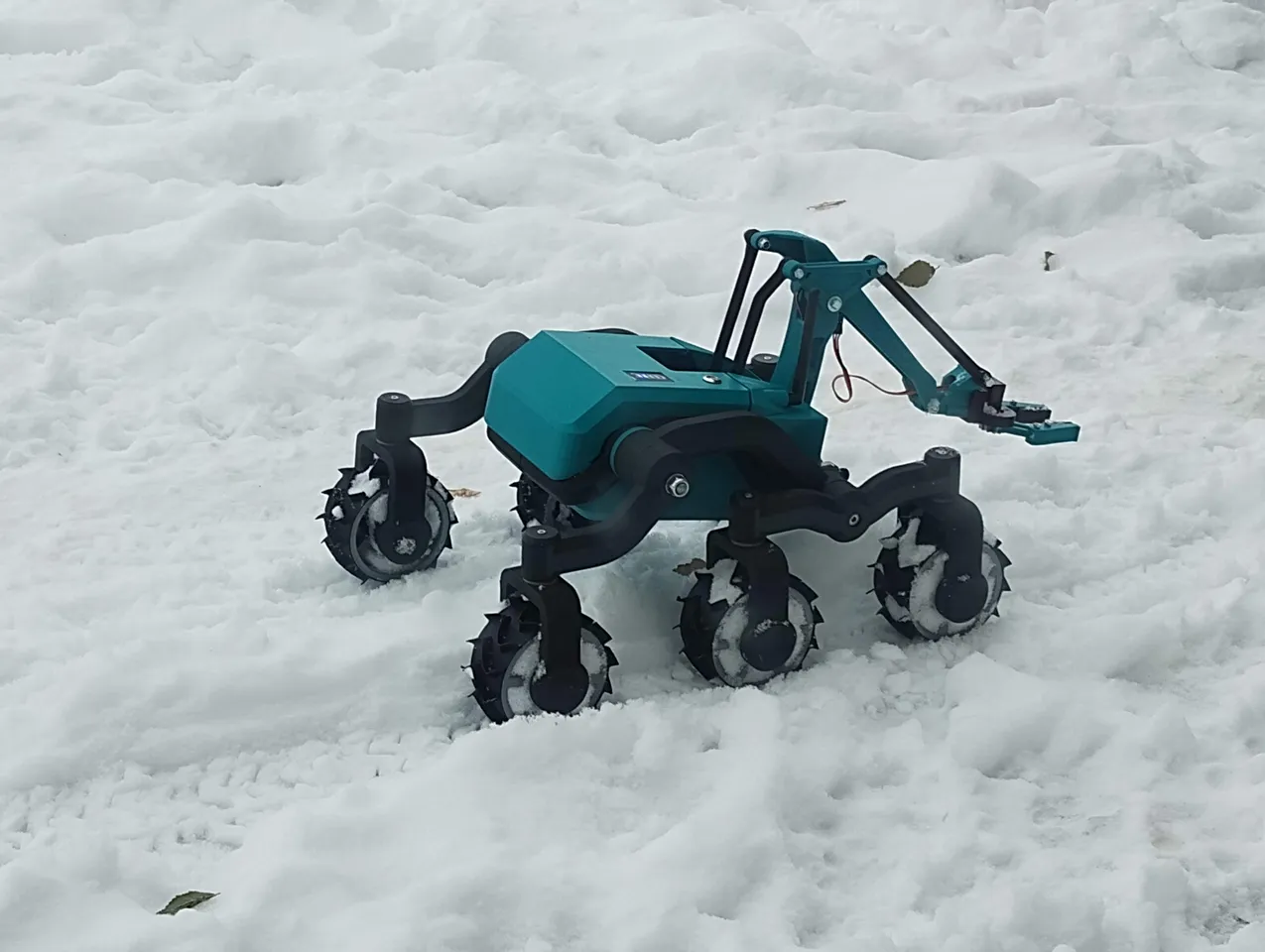

2. Best ESP32 Cam Case with Battery
ESP32 CAM Rover with robotic arm by Zdendys
Description & Key features: Rover chassis + cover that houses an ESP32-CAM with external antenna, servo mounts and power routing; includes references to battery indicator modules and waterproof power switch options — suitable for mobile/FPV use where on-board battery is needed.
Material Used: PET or PETG
Download: Printables model – ESP32-CAM Rover with robotic arm
Best use case: mobile FPV camera, field monitoring, robotics projects where you want camera + battery onboard.

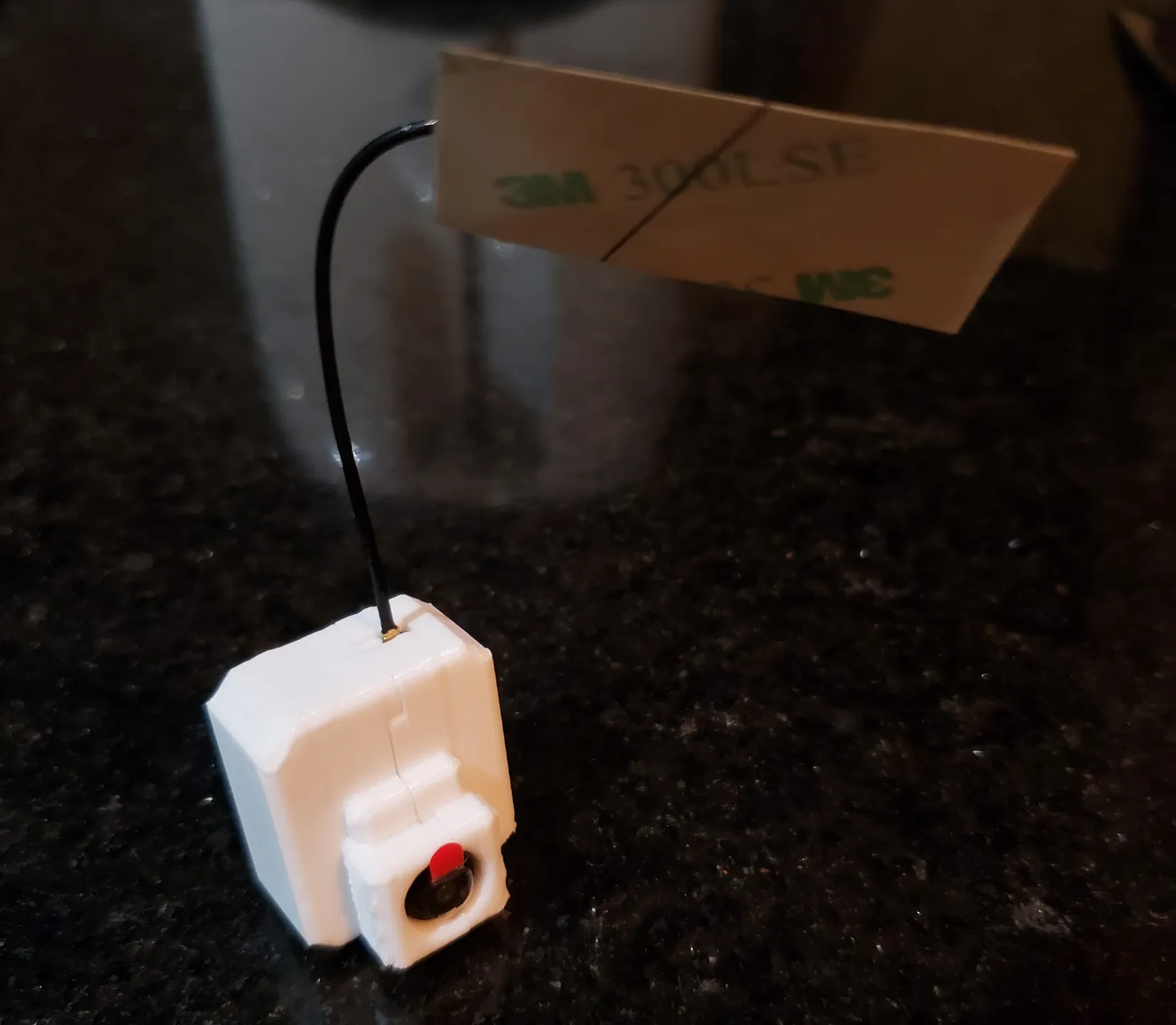

3. Best Compact ESP32 Cam Enclosure

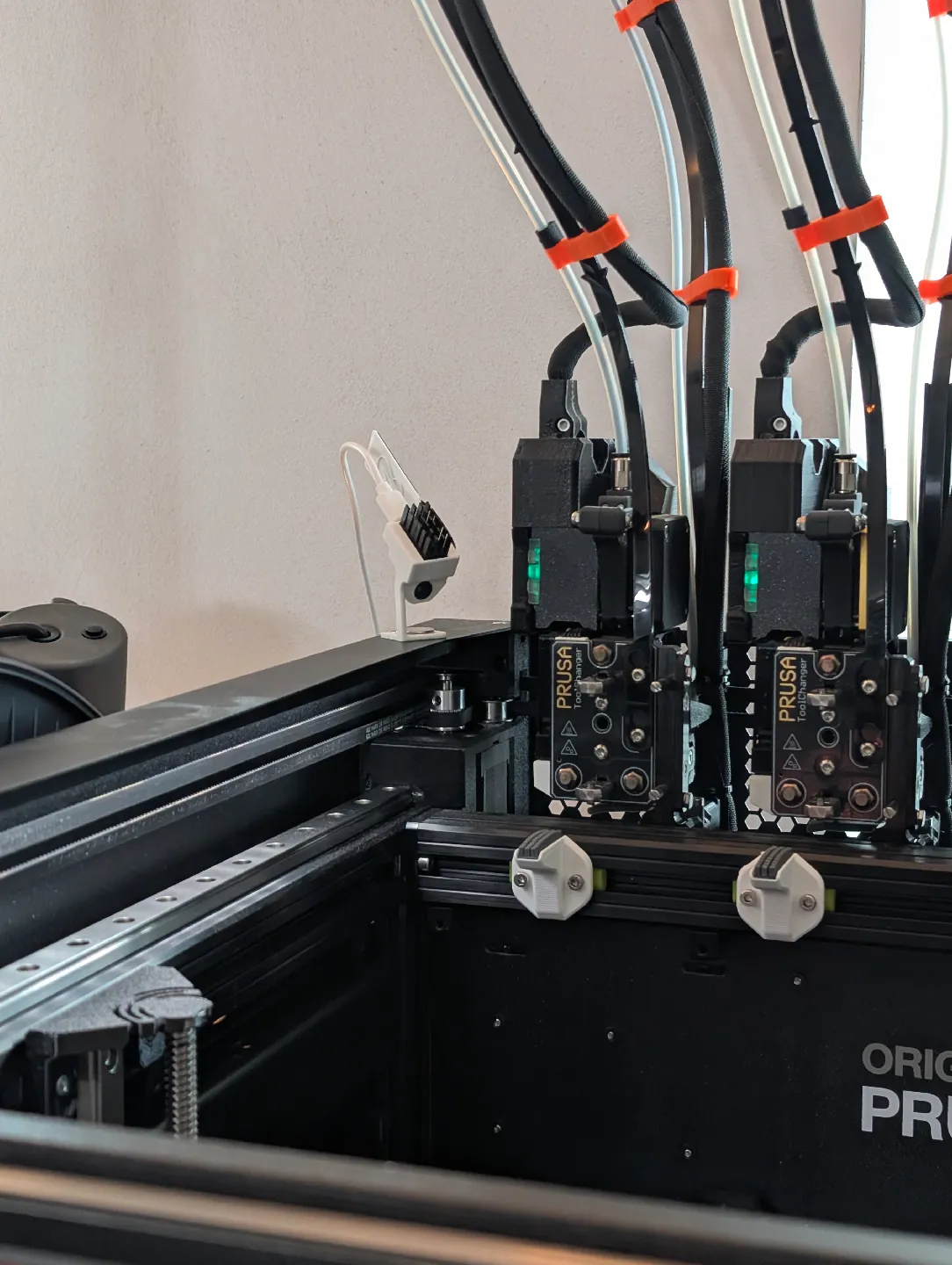

Seeed Studio XIAO ESP32S3 Sense Housing by Nikolai Schauer
Description & key features: extremely small housing designed for Seeed Studio XIAO ESP32-S3 Sense, a thumb-size ESP32 camera — magnetic base, SD card access, single-screw assembly and notch for cable ties; ultra low material usage and small footprint.
Material Used: PET
Download: Printables model – Seeed XIAO ESP32S3 Sense housing
Best use case: compact printer-camera mounts, discreet desk cams, embedded builds with tight space/weight constraints.

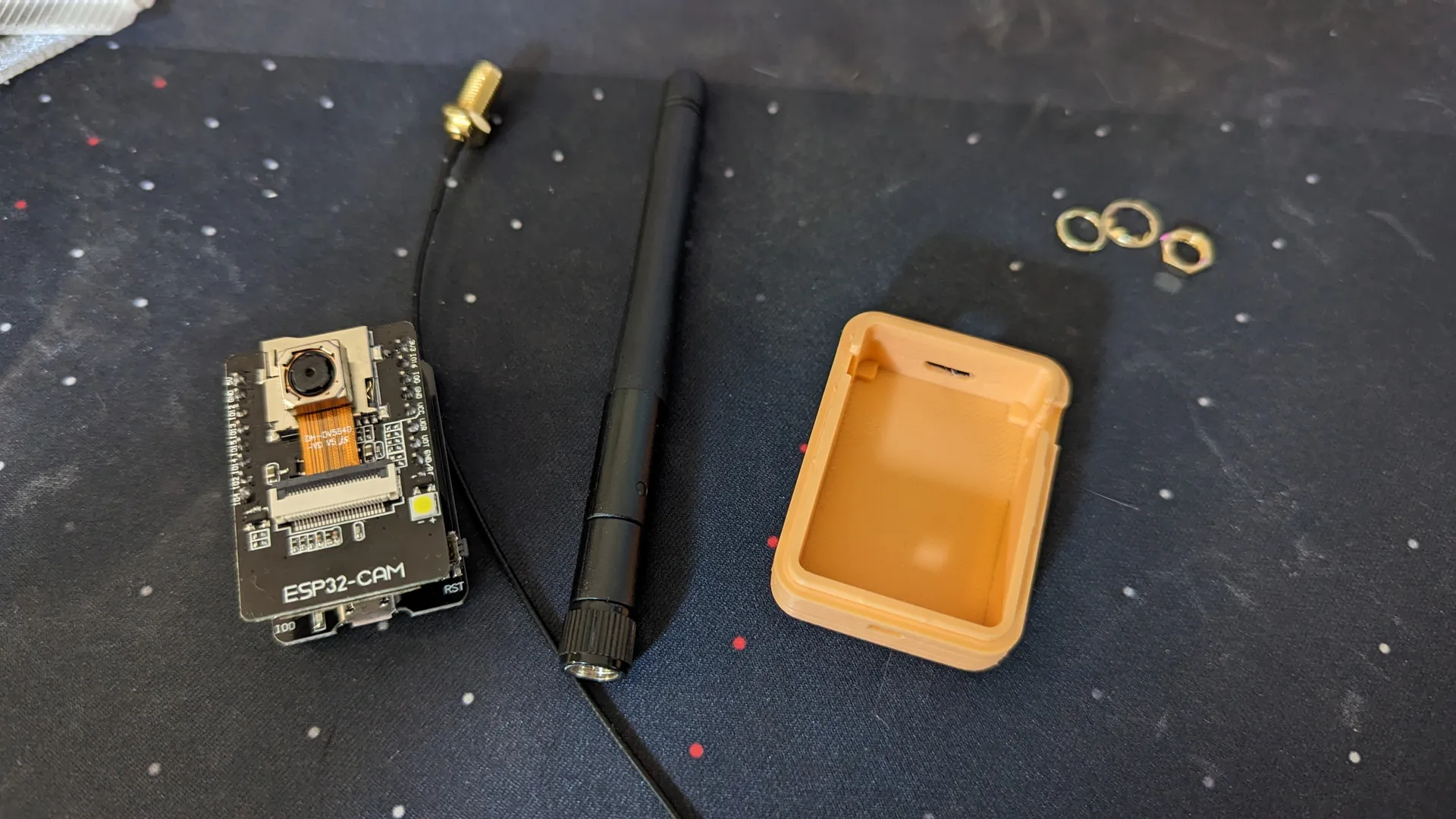

4. Best Weather-Adaptable ESP32 Cam Case
ESP32 cam enclosure by CosmicNimbus

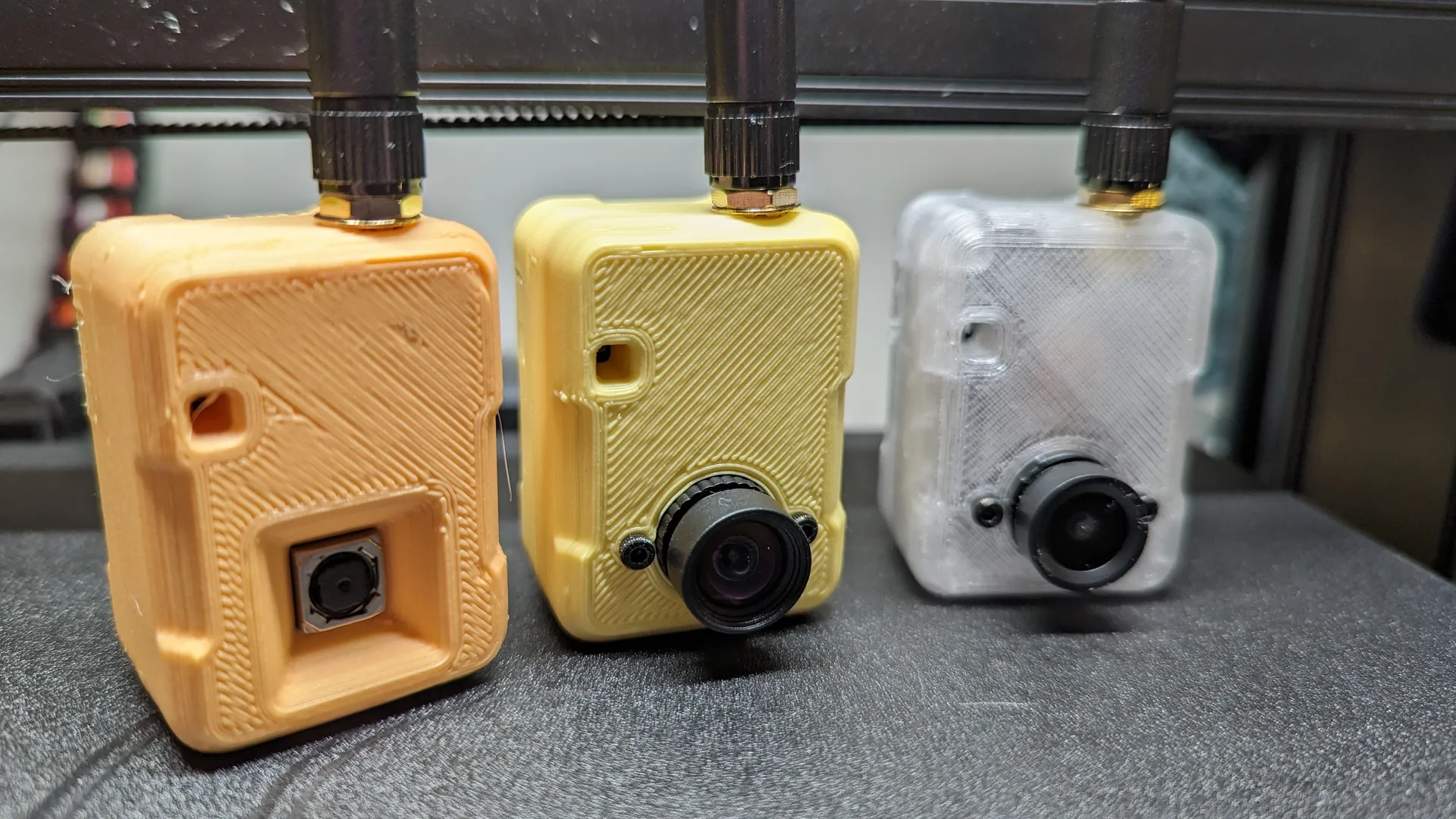

Description & key features: thicker enclosure options that accommodate various lenses and an aerial; front variants for multiple lens sizes and screw mounts for larger lenses — while primarily presented as indoor, the design is a good base to adapt with gaskets and silicone seals for outdoor use.
Material: PETG or ABS
Download: Printables model – ESP32 cam enclosure
Best use case: outdoor camera projects after adding seals (bird box cams, garden/wildlife monitoring, weather-protected installations).

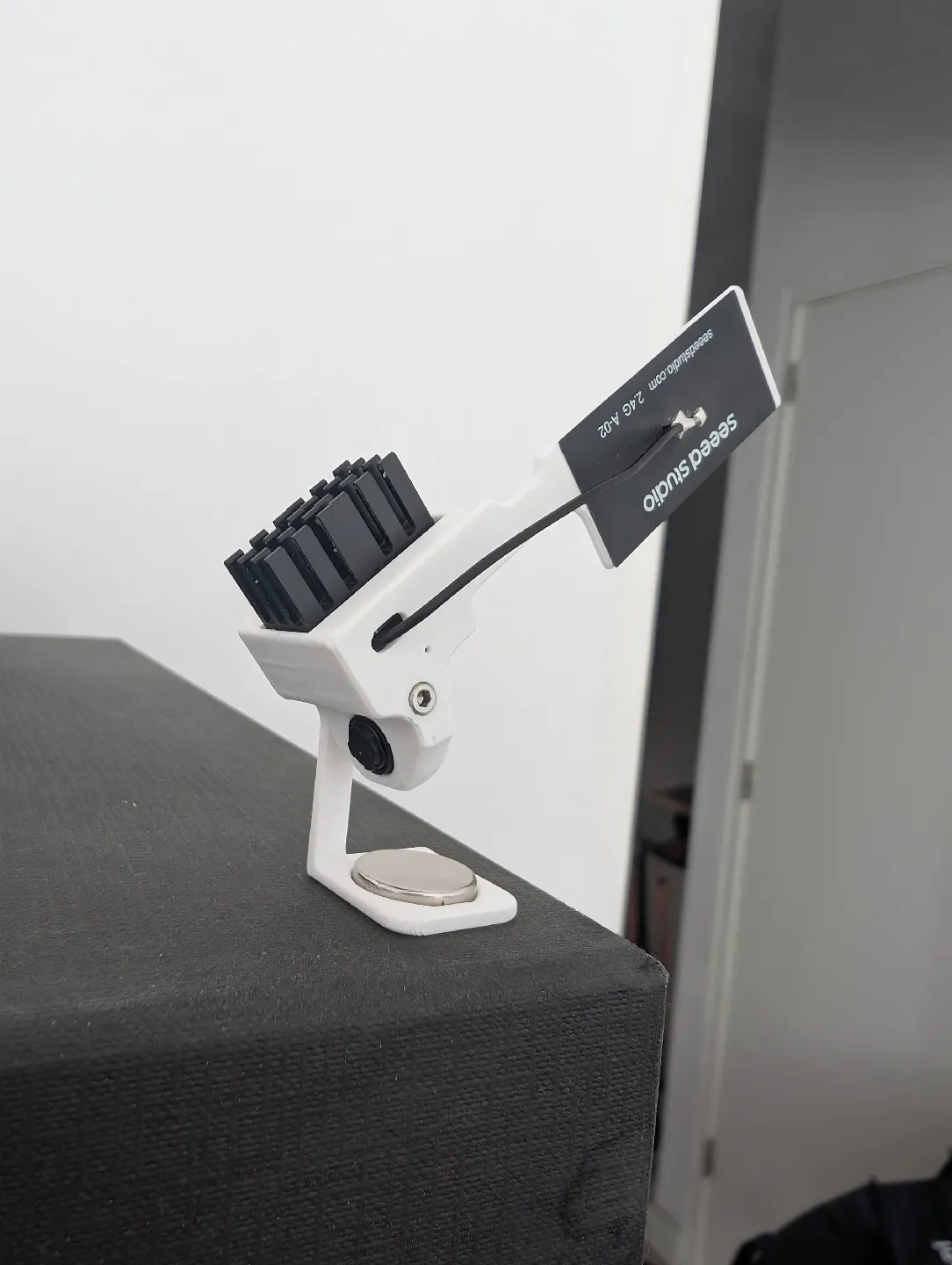

5. Best Professional-Grade ESP32 Cam Case

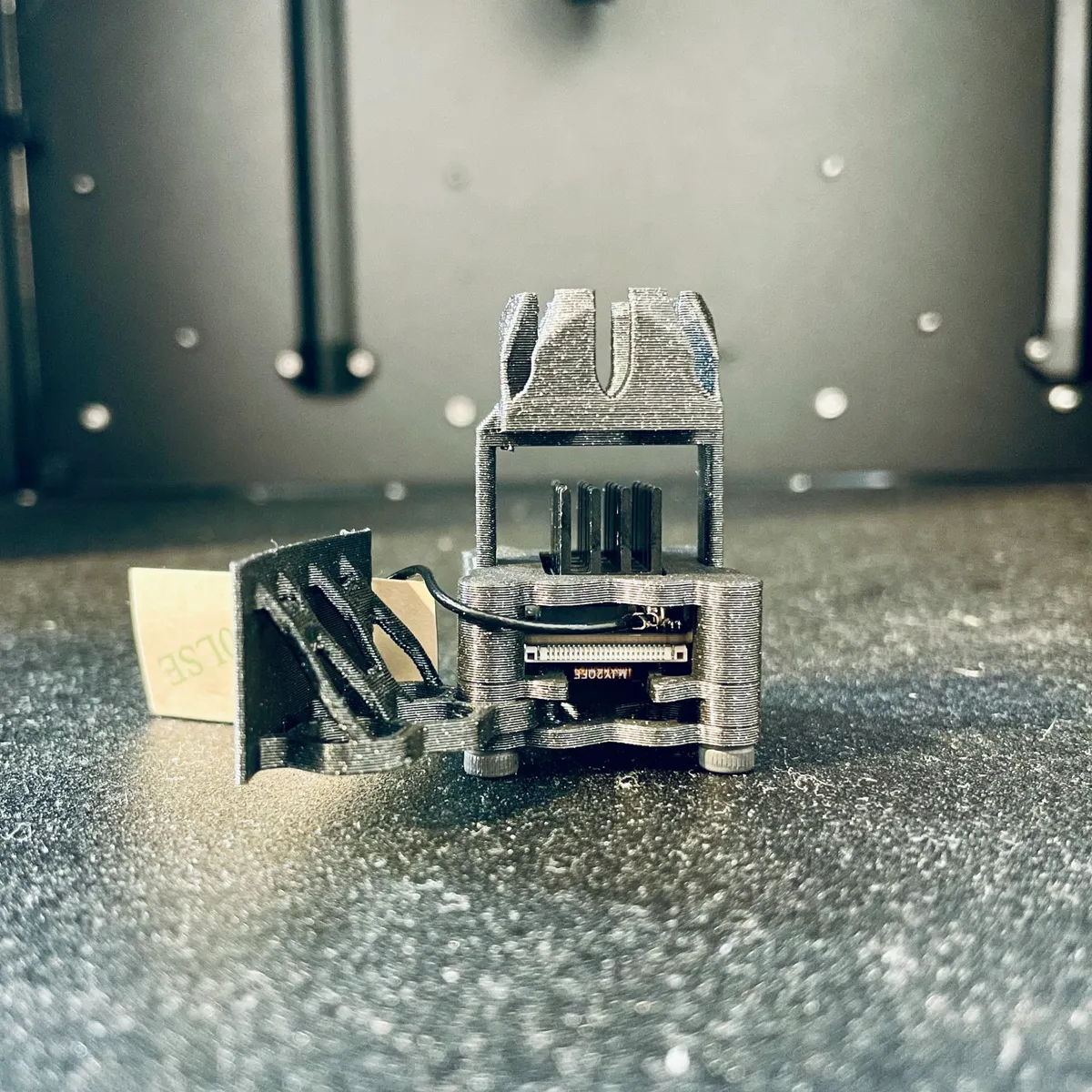

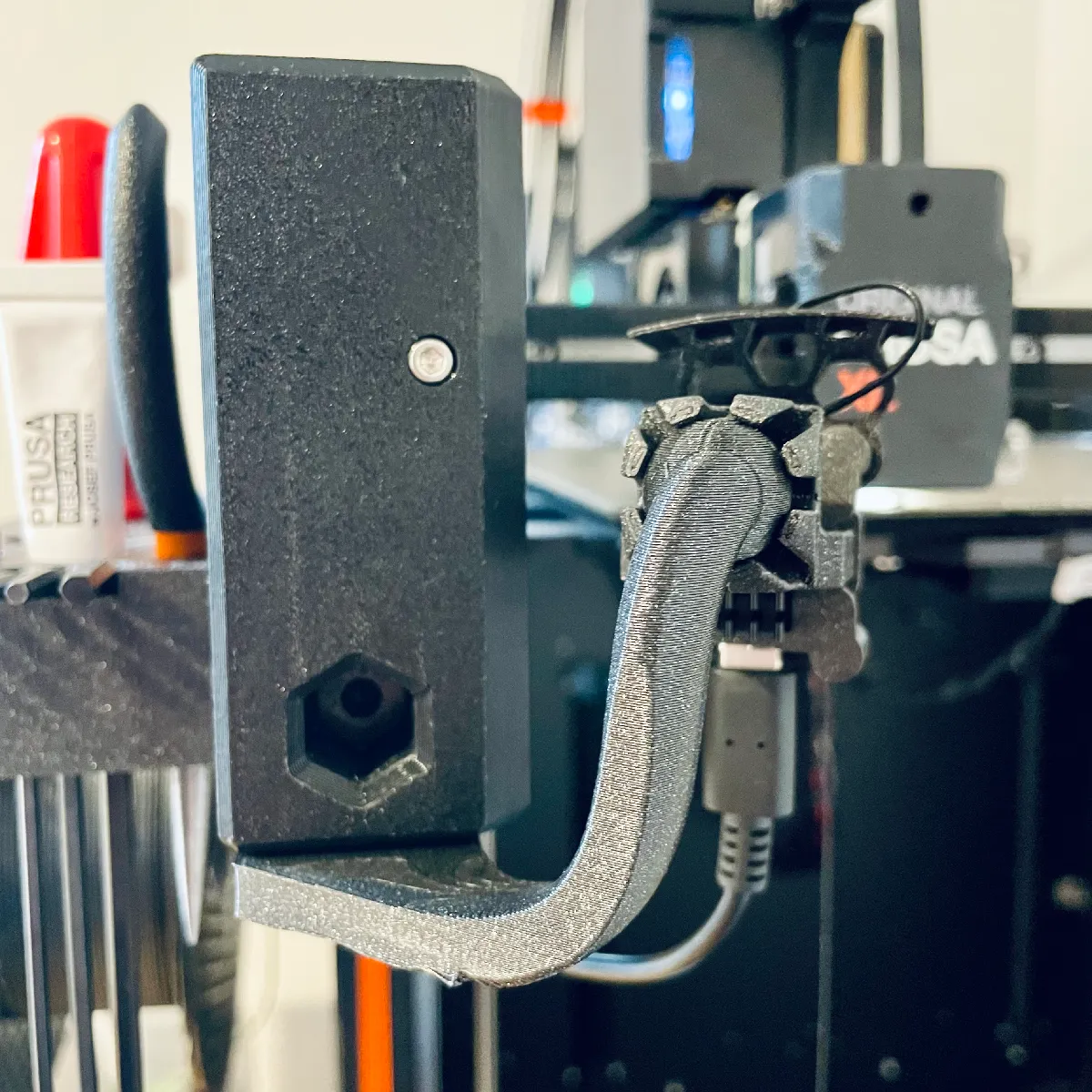

XIAO ESP32S3 (Sense) Camera for Prusa XL by astrophage
Description & key features: purpose-built for printer cameras with optimized airflow (to prevent XIAO ESP32S3 overheating), ball & socket connectors, Prusa XL mount compatibility and cable management; designed with production robustness in mind.
Material: PET
Download: Printables model – XIAO ESP32s3 Sense Camera for Prusa XL
Best use case: professional setups (printer monitoring, robust lab/industrial camera installations, makers who need reliable thermals & mounting).
6. Best Wall-Mountable ESP32 Cam Case

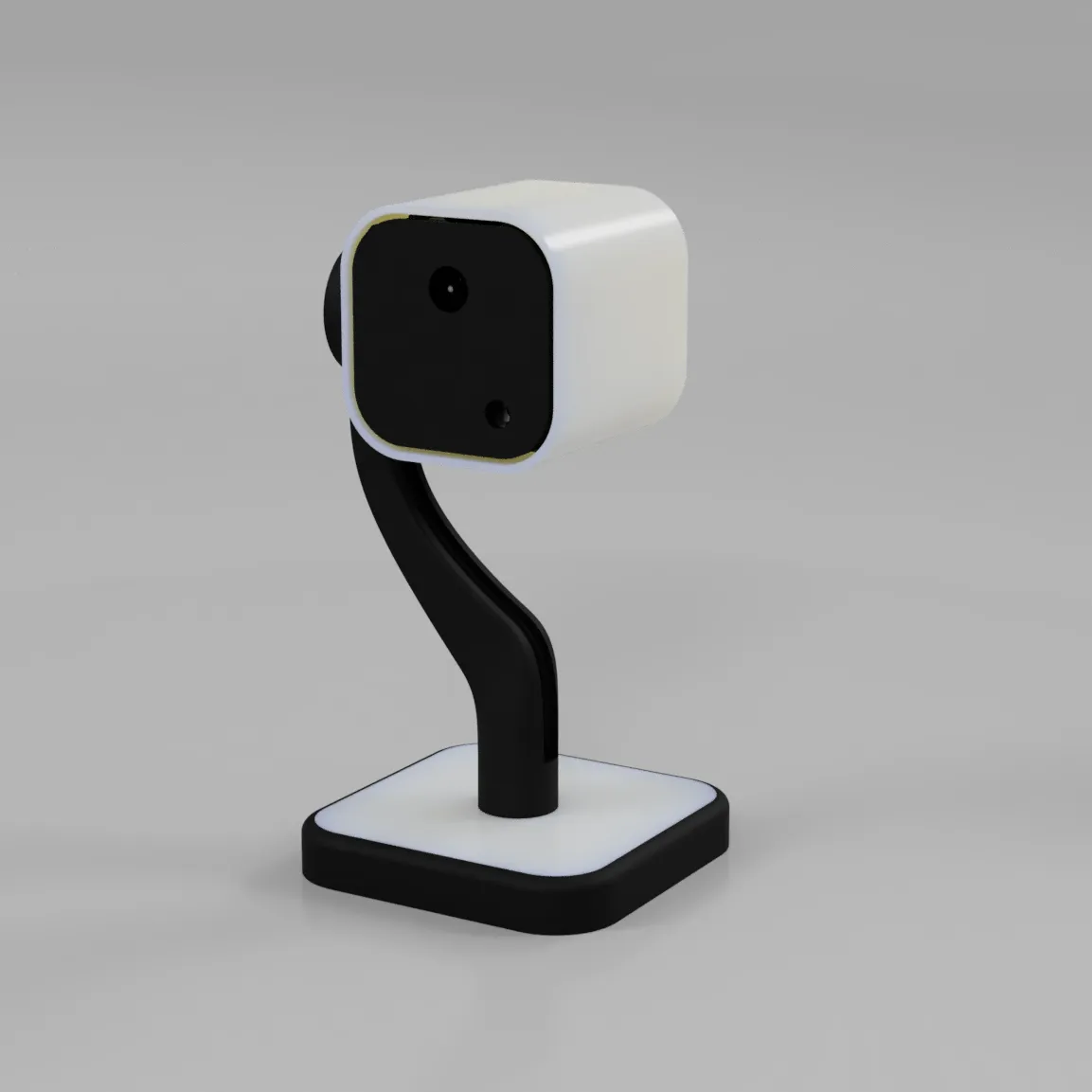

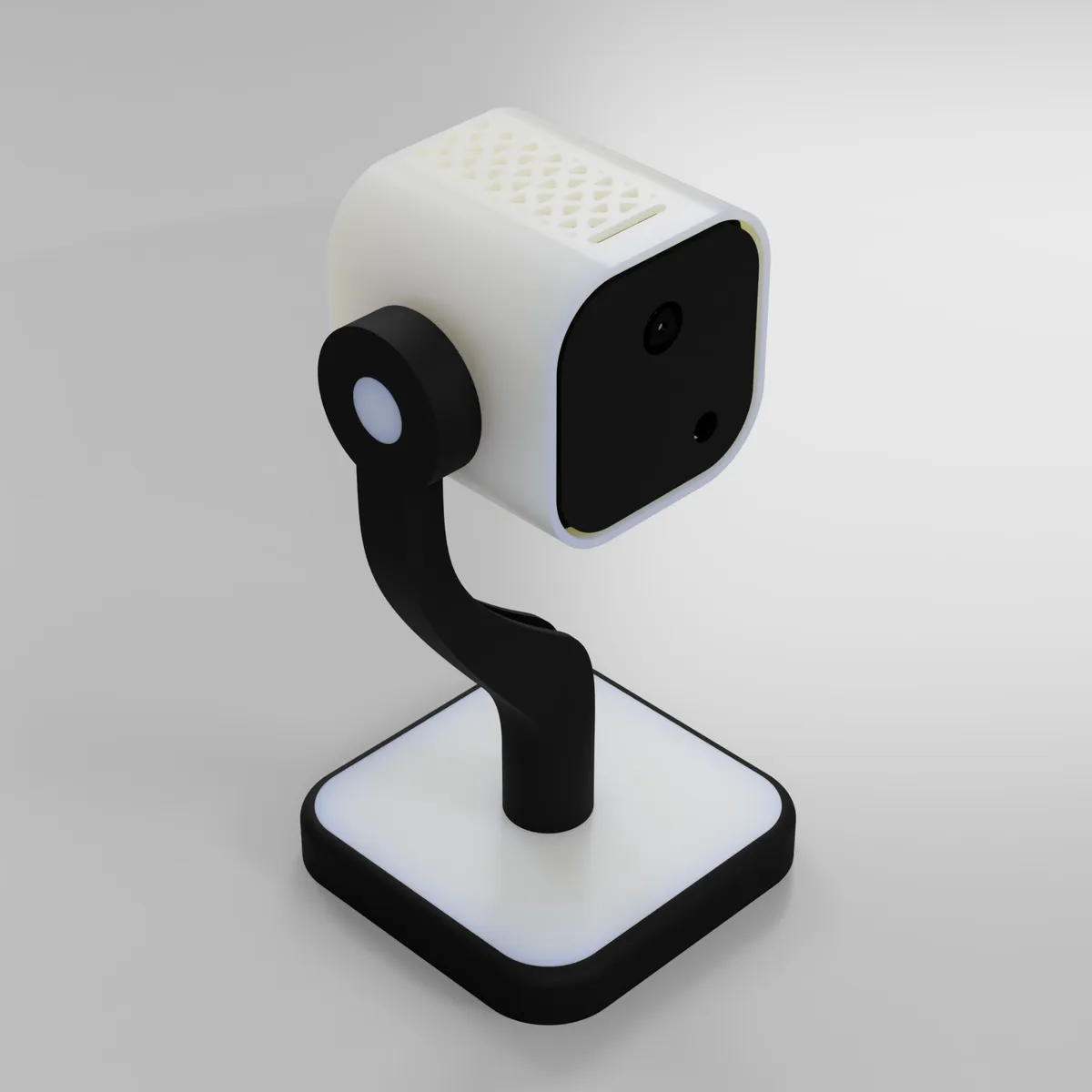

ESP32 Cam Case Kit with snap fit, ball joint by i-BoxIt
Description & key features: snap-fit case kit with ball joint, magnetic or screw wall mounts, lens plate for M12/classic lenses, cable routing through mount — built to be clipped to mounts and mounted to walls/doors.
Material: PLA
Download: MakerWorld model – ESP32 Cam Case Kit
Best use case: easy wall/ceiling installs (home security cams, door peephole cams, room monitoring).
7. Best Customizable ESP32 Cam Case STL

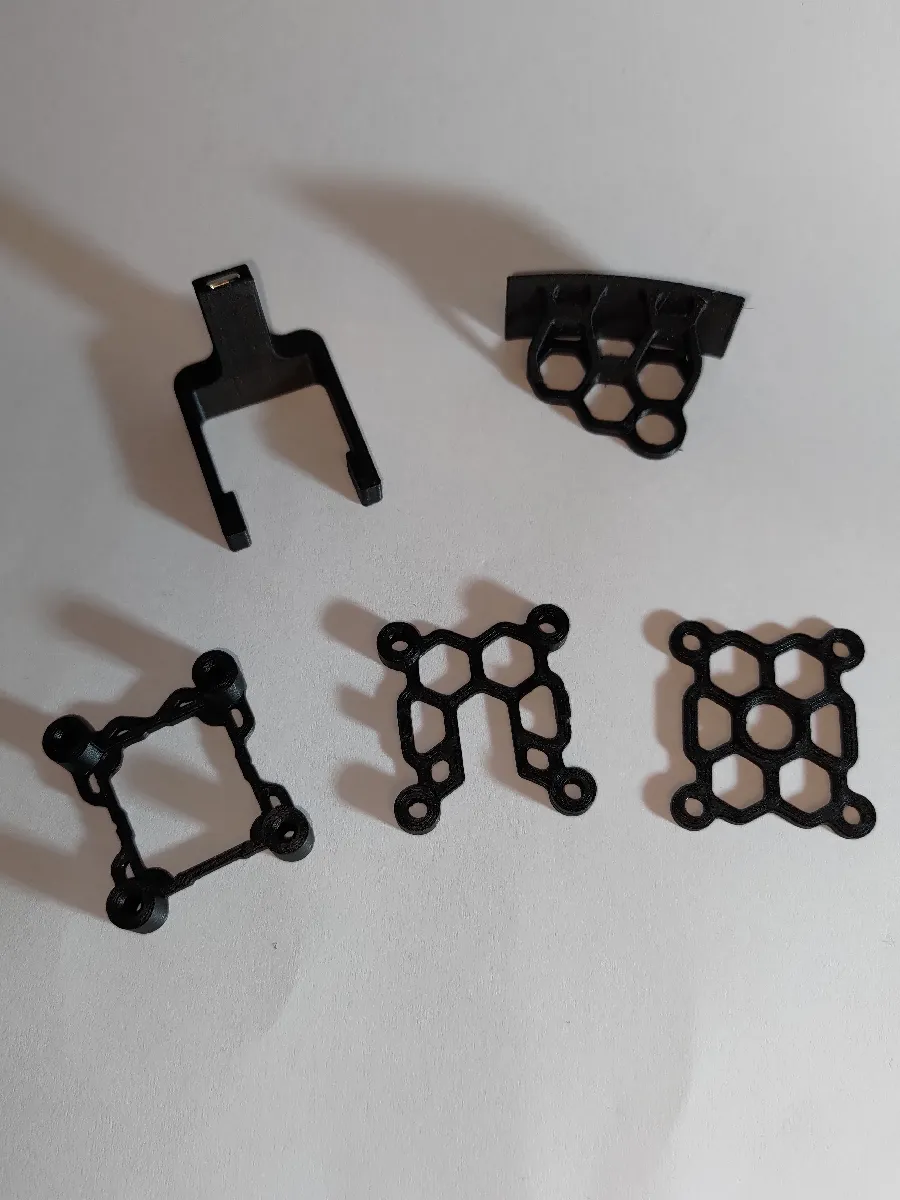

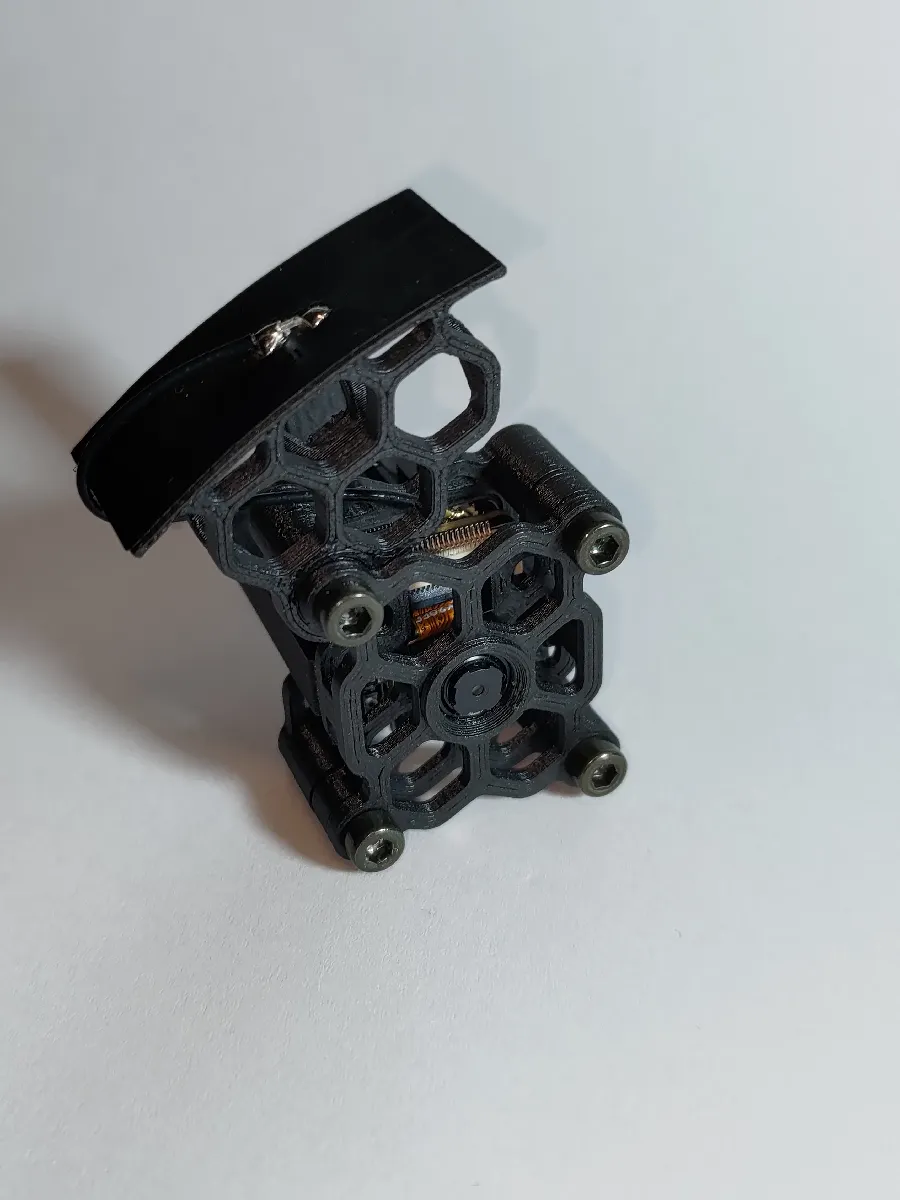

Camera Case Xiao ESP32S3 Sense by brunnair
Description & key features: case designed to maximize airflow with multiple mounting options (ball & socket, magnet-mount at 20°/40°), front/back variants and STEP files for further customization — ideal when you want to tweak the STL to fit specific hardware.
Material: PET
Download: Printables model – Camera Case Xiao ESP32S3 Sense
Best use case: custom builds where you want to modify cutouts, angles or add heat-sink space.
8. Best ESP32 Cam Case 3D Print STL
ESP32-CAM Case by bkgoodman
Description & key features: snap-together case with cutouts for LED, camera, USB/power, and onboard buttons; lightweight (low filament) and quick print time — widely used and highly reviewed by the community.
Material & print tips: PLA
Download: Printables model – ESP32-CAM Case
Best use case: quick prototypes, hobby builds where you want a reliable, community-tested STL.

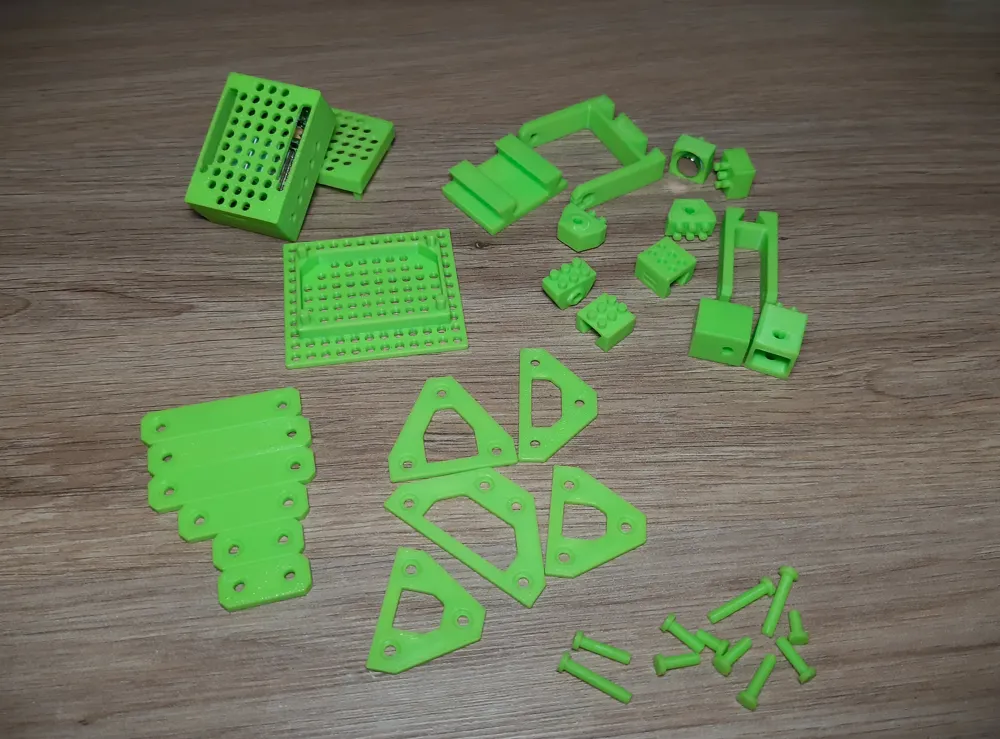

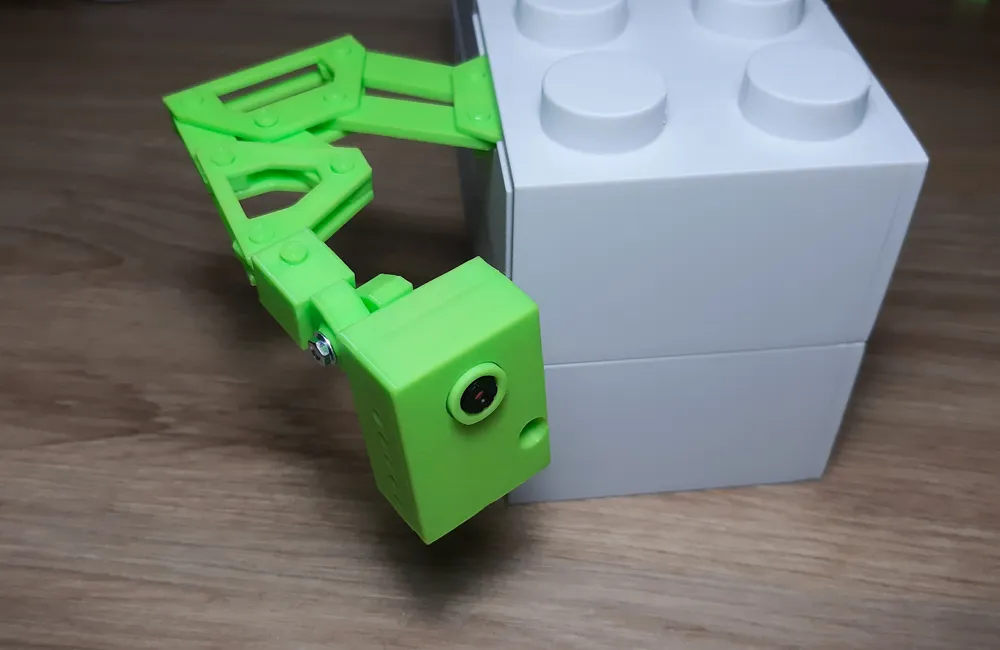

9. Best Modular ESP32 Cam Enclosure
Modular ESP32 CAM Case + Mount by GoMorko
Modular ESP32 CAM Case + Mount by GoMorko
Description & key features: modular blocks, arms, joints and rails to compose custom mounts without needing to redesign; prints include arms, foldable joints, and insertable blocks for flexible assembly — great for iterative mounting solutions.
Material: PLA
Download: MakerWorld model – Modular ESP32 CAM Case + Mount
Best use case: situations where mounting geometry changes often (printer cameras, grow-tent monitoring, multi-angle surveillance rigs).
10. Best Budget-Friendly ESP32 Cam Case 3D Model

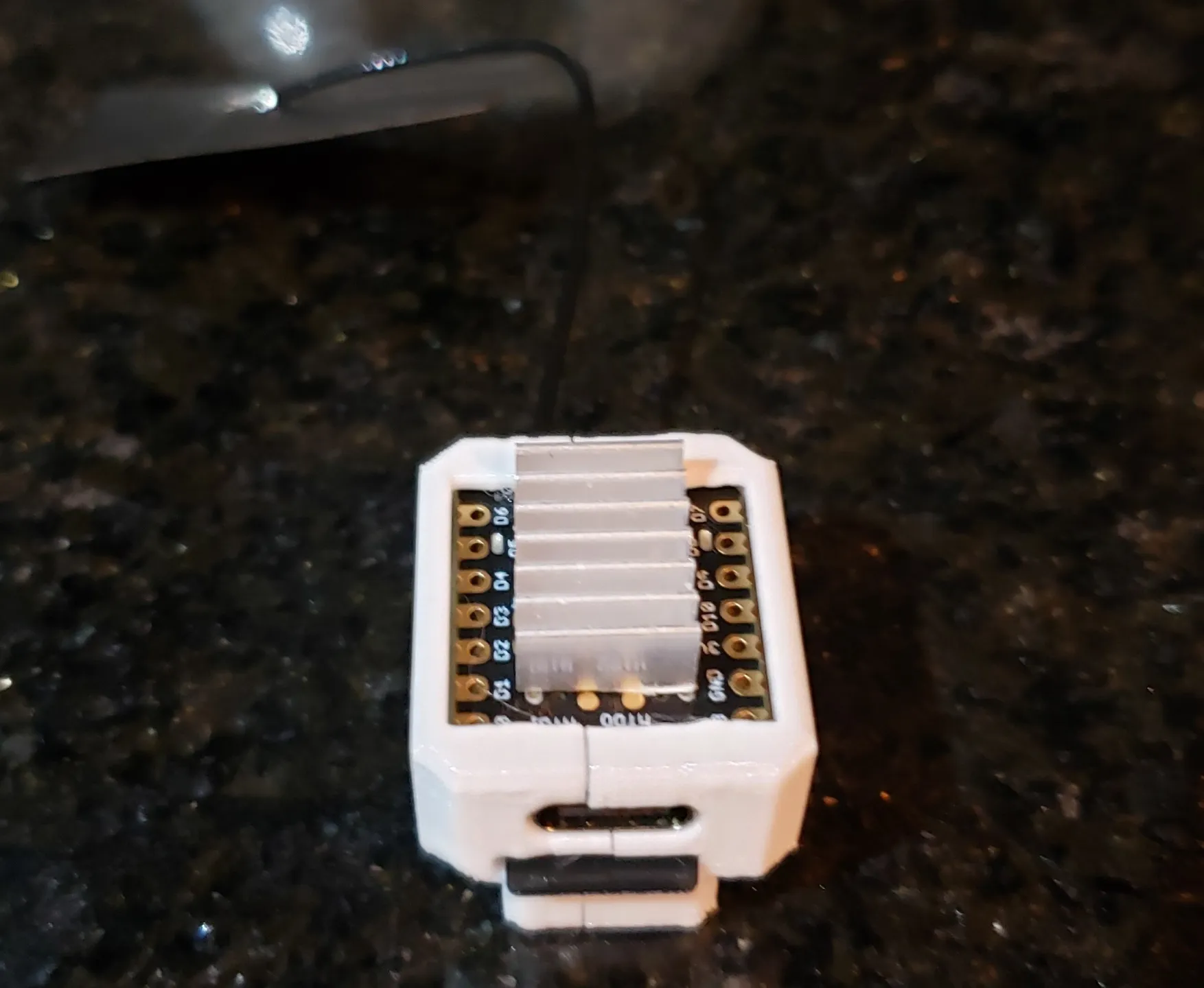

XIAO ESP32-S3 Sense Case by ScottyDoesKnow
Description & key features: It is a compact, budget‑friendly snap‑fit case for the Seeed Studio XIAO ESP32S3 Sense with camera, designed to be printed easily at home using low‑cost PETG filament. It offers multiple variations—heat sink support, open‑back access, and a peephole mount—while keeping material use minimal (just 4–6g per print), making it both affordable and practical for makers who want reliable protection without extra expense.
Material: PETG
Download: Printables model – XIAO Sense Case
Best use case: rapid prototyping, classroom/hobbyist kits, low-cost deployments.
Must-Have Features for Your ESP32 Cam Case Design
1. Material Selection
The durability and environment suitability of your esp32 cam case 3d print depend heavily on the material:
- PLA: Easy to print; ideal for indoor use.
- PETG: Better heat resistance and durability; recommended for outdoor or long-term installations.
- ABS: Impact-resistant and heat-tolerant but requires an enclosed printer.
2. Precise Camera Lens Cutouts
Ensure the lens opening is perfectly aligned to avoid vignetting or partial obstruction. Cases supporting multiple lens sizes—such as M12 lenses—offer more flexibility in advanced builds.
3. Antenna Performance & Placement
Maintaining RF performance is crucial:
- Keep at least 5 mm of plastic clearance above internal antennas.
- Avoid metal components near the antenna zone.
- Include external antenna openings or SMA mounts if your module supports them.
- Always test Wi-Fi signal strength after assembly.
4. Heat Ventilation & Thermal Design
Continuous streaming generates heat. Good enclosures include:
- Ventilation slots
- Side or rear airflow paths
- Space for small heat sinks if necessary
This prevents thermal throttling and ensures stable performance.
5. Cable Management Channels
A well-designed esp32 cam enclosure routes cables cleanly. Look for:
- Cutouts for USB/power cables
- Channels for servo wires or sensor add-ons
- Enough space for connectors without bending or stressing them
6. Mounting Options
Depending on your installation environment, choose cases that support:
- Wall mounting
- Tripod screw threads
- Magnetic bases
- Ball-joint or swivel mechanisms
These help position the camera at the perfect angle.
7. Assembly Type: Snap-Fit vs. Screws
- Snap-fit: Fast to assemble, no hardware required; ideal for indoor or lightweight applications.
- Screws: Far more secure for outdoor use, robotics, or vibration-prone environments.
8. Battery Compartment (If Needed)
For portable or outdoor projects, adding a battery compartment to your ESP32 cam enclosure can greatly improve mobility and reduce cable clutter. When designing or choosing an esp32 cam case with battery, consider the following essential points to ensure safety, usability, and long-term reliability.
A. Battery Size Compatibility
Your enclosure should provide proper space for the most common battery types:
- 18650 Li-ion cells for long runtime
- LiPo batteries (500–2000 mAh) for lightweight or compact builds
The interior must include secure holders or brackets to keep the battery firmly in place, along with enough clearance for JST connectors and internal wiring.
B. Ventilation & Thermal Management
Batteries and ESP32 modules can generate heat during continuous streaming. Good design includes:
- Ventilation slots around the battery bay
- Separation from heat-generating components like voltage regulators
- Airflow paths to prevent heat buildup.
C. Power Switch & Charging Port Accessibility
Practical usability depends on external access to controls and ports:
- Choose a side or rear location for a toggle or slider power switch
- Align charging ports (USB/LiPo charger) with cutouts so you don’t need to open the case
Optional rubber plugs can be added for semi-weatherproofing
Where to Find ESP32 Cam Case 3D Models
Thingiverse – One of the oldest model repositories—ideal for free, high-quality ESP32 cam case STL files. Search using keywords like “ESP32 cam enclosure” or “ESP32 cam case 3d print.”
Printables (Prusa) – A rapidly growing platform with excellent filtering, designer notes, and print settings. Many popular ESP32-CAM case projects originate here.
Maker World (Bambu Lab) – Optimized for Bambu 3D printers with direct print profiles. Perfect if you want “one-click” printing for ESP32 cam case 3d models.
Cults3D – Hosts premium and paid models—useful when you need professional-grade or niche enclosure designs.
GitHub – Great for open-source designs with STEP files, code, and modular case systems for custom builds.
MyMiniFactory – Curated designs with strict quality checks, ideal for consistent results.
Real-World Projects Using ESP32-CAM Cases
ESP32-CAM modules become far more practical and reliable when paired with a suitable 3D-printed enclosure. Makers use these cases to protect the camera, improve mounting stability, manage cables, and enhance the overall performance of ESP32-based monitoring systems. Below are several real-world applications where a well-designed ESP32 cam case plays a crucial role, along with project examples demonstrating how enclosures unlock creative possibilities.

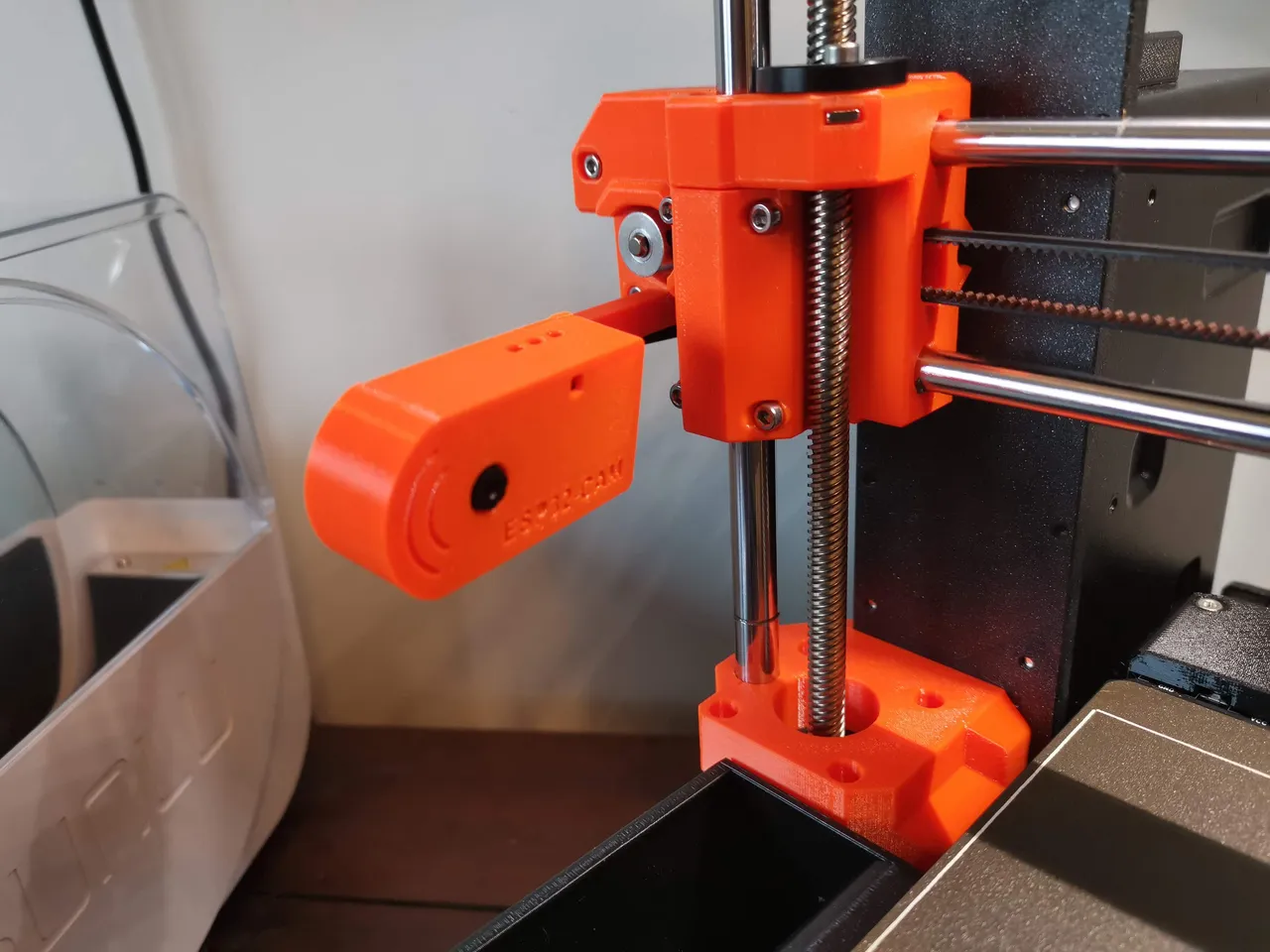

1. 3D Printing Monitoring
3D printers are one of the most popular platforms for ESP32-CAM monitoring, and a dedicated esp32 cam enclosure helps ensure consistent timelapse captures, stable mounting, and safe cable routing. A great example is the MK4 ESP32-CAM with Home Assistant Integration project.
2. Smart Home Security Camera Installations (Home Assistant)
ESP32-CAM modules are widely used in smart home setups due to their ultra-low cost and flexibility. Enclosures make them suitable for long-term indoor placement or discreet monitoring. A notable example is the YouTube project “Can a €5 ESP32-CAM camera read a water meter?”
3. Wildlife Monitoring
Wildlife and outdoor camera systems require sturdy ESP32 cam enclosures with good battery management and weather resistance. The Dual AI Camera for Hummingbird Monitoring is a prime example.
4. Time-Lapse Photography Setups
Time-lapse builds demand stability, consistent positioning, and often portable power—making an enclosure essential. A great example is the ESPCAM – XIAO Powered DIY Camera project.
5. Robotics Projects
Mobile robots often require rugged cases that protect the camera while maintaining a clear field of view. A powerful example is the 3D-Printed Screw-Propelled Robot with Video Feed on Instructables.
6. Smart Doorbell Applications

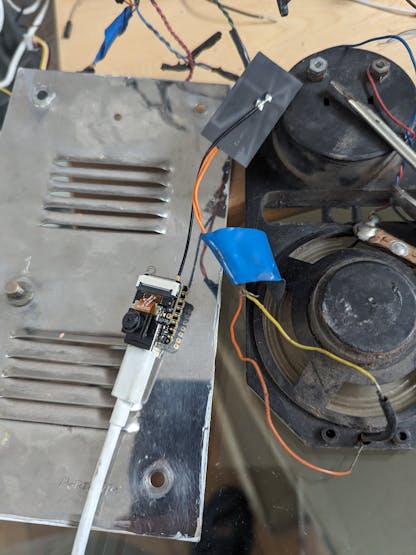

Smart doorbells benefit greatly from compact, durable cases that can withstand daily use. The Machine Learning Doorbell with XIAO ESP32S3 Sense demonstrates how enclosures elevate an ESP32-based doorbell system.
Conclusion
Whether you’re building a smart security system, monitoring your 3D printer, or setting up a wildlife camera, choosing the right ESP32 cam case can dramatically improve the durability and performance of your project. From compact enclosures to weather-resistant housings and modular designs, there’s an ESP32 cam case 3d model for every need and installation type. Many makers also benefit from portable builds using an ESP32 cam case with battery, especially for outdoor or mobile robotics applications.
Explore the recommended models above, download the ESP32 cam case STL files, or customize your own enclosure. If you need professional-grade fabrication, consider using Seeed Fusion to manufacture either your 3D enclosure design or your custom ESP32 camera PCBA boards. And if you’re ready to start building, check out Seeed Studio XIAO ESP32-S3 Sense—to power your next project.
