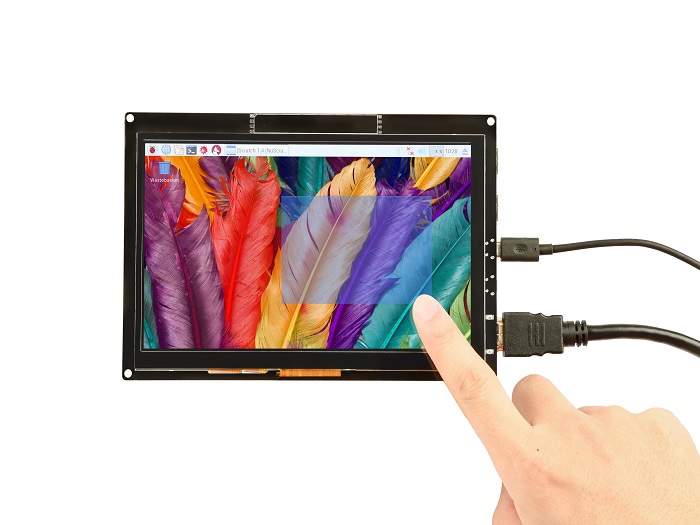

It is a fantastic 7 inch HDMI monitor with capacitive touch screen and driver free. It's been tested on Raspberry Pi, beagle bone black, windows 10 and Mac book pro. And it works well on those platform and it really plug and play, all you need to do is to adjust the resolution(on Raspberry Pi).
It supports 1024x600 resolution and you may find that the pictures are more bright when you are using this display. The capacitive touch function give the user full control over any device. It's driver free for your device due to built-in EDID device information, it is very easy to let the equipment correctly identified the touch screen. And the Capacitive USB touch screen can support functions of the right mouse button and drag and drop, and also support multipoint touch, maximum 10 points.(only test in windows 10)
For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 1024x600 in case it doesn't detect the resolution properly.
The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.
And most valuable things is it has been extended with two USB HOST ports. So that you can hookup more USB devices to your screen, for example, the USB dongle or the USB mouse or keyboard.
Raspberry Pi Configure
• How to setup resolution for the screen:
• You can modify /boot/config.txt file with vim.tiny or nano editor, and change the parameters as following chart:
hdmi_cvt 1024 600 60 3 0 0 0
Please reboot Raspberry Pi after modifying the /boot/config.txt
|Dimensions||210mm x150mm x50mm|
|Power||5V Power via USB Micro|
|Display Type||7 inch TFT LCD|
|Touch points||10 points maximum|
|Interface||HDMI & USB 2.0 Full Speed|
|Dimensions (without package)||177.06mm x 113.09mm x 15.2mm|
|7 inch 1024x600 Capacitive TouchScreen||1|
|30cm High Quality HDMI cable wire||1|
|MicroUSB Cable wire||1|
7-Inch-1024x600 Capacitive Touch Screen (Extend Two USB HOST Port) SKU: EP-0085
How to use it.
Does the touch driver work with Windows 10 IOT on RaspberryPi3 or Dragonboard 410c?Question by: Takahiro Hanada on 2019-03-25 07:50:08
Hi Takahiro, Unfortunately, the touch driver of this screen do not support WIN10 IOT on Raspberry Pi. However, it support display with Win10 IOT Raspberry. Thanks for your time and interest in Seeed.Answer by: admin on 2019-03-25 05:04:27
Question by: admin on 2018-12-18 02:23:35
Hi there, we do not have EOL plan yet. thanks.Answer by: admin on 2018-12-18 02:23:35
Can we get a total CAD drawing, along with the screen dimensions. We can only find the entire PCB dimensions.Question by: admin on 2018-12-18 02:21:04
Hi, we designed the 2D and 3D drawings, please refer to **https://github.com/SeeedDocument/forum_doc/tree/master/reg/LCD7_HDMI_CTP_V203** thanks.Answer by: admin on 2018-12-18 02:21:04
Question by: admin on 2018-12-18 02:20:56
Hi, we designed the 2D and 3D drawings, please refer to **https://github.com/SeeedDocument/forum_doc/tree/master/reg/LCD7_HDMI_CTP_V203** thanks.Answer by: admin on 2018-12-18 02:20:56
