AlphaBot2 robot building kit for Raspberry Pi Zero/Zero W (no Pi)

Robot,steam,STEM,education,toy,smart car, pi zero, pi 0 hat, pi hut, pi plates, raspberry pi zero hat, pi kit
$85.99
Out of stock
  • 10+: $81.69

PRODUCT DETAILS

Note: Raspberry Pi Zero/Zero W is NOT included.


This AlphaBot2 robot kit is designed to use with Raspberry Pi Zero/Zero W (not included). It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, Bluetooth/infrared/Wi-Fi remote control (Bluetooth and Wi-Fi are Zero W specific), video monitoring, etc.


Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembled, you're almost there, our open source demo codes will ready to help you get started fast.


AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.


AlphaBot2-Base, the lower base chassis:


• 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking

• Onboard modules like line tracking, obstacle avoiding, needs no messy wiring

• TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating

• N20 micro gear motor, with metal gears, low noise, high accuracy

• Onboard RGB LEDs, true color lighting, pretty cool


AlphaBot2-PiZero, the upper adapter board for controller:


• LM2596 voltage regulator, provides the Pi with stable 5V power

• TLC1543 AD acquisition chip, allows the Pi to use analog sensors

• PCA9685 servo controller, make it more smoothly to rotate the pan head

• CP2102 UART converter, easy for controlling the Pi via UART

• USB HUB chip, more USB ports for devices like NIC

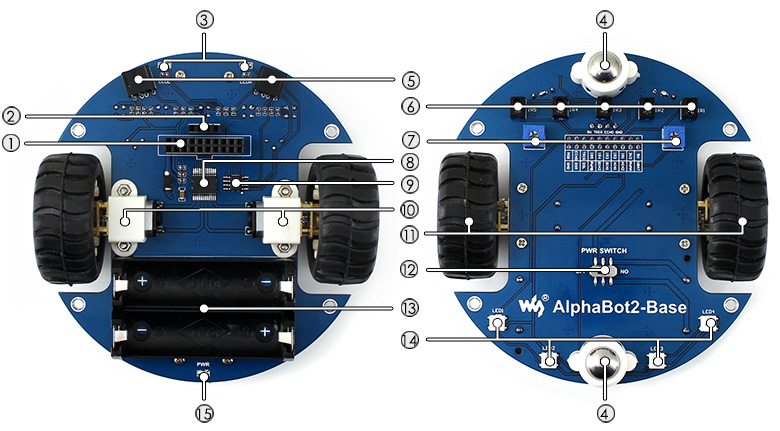

What's on the AlphaBot2-Base

1. AlphaBot2 control interface: for connecting sorts of controller adapter board

2. Ultrasonic module interface

3. Obstacle avoiding indicators

4. Omni-direction wheel

5. ST188: reflective infrared photoelectric sensor, for obstacle avoiding

6. ITR20001/T: reflective infrared photoelectric sensor, for line tracking

7. Potentiometer for adjusting obstacle avoiding range

8. TB6612FNG dual H-bridge motor driver

9. LM393 voltage comparator

10. N20 micro gear motor reduction rate 1:30, 6V/600RPM

11. Rubber wheels diameter 42mm, width 19mm

12. Power switch

13. Battery holder: supports 14500 batteries

14. WS2812B: true color RGB LEDs

15. Power indicator

What's on the AlphaBot2-PiZero

1. AlphaBot2 control interface: for connecting AlphaBot2-Base

2. LM2596: 5V voltage regulator

3. Raspberry Pi interface: for connecting Raspberry Pi Zero/Zero W

4. IR receiver

5. Buzzer

6. FE1.1S: USB HUB chip

7. 12M crystal

8. USB TO UART: easy for controlling the Pi via UART

9. USB HUB interface: extends the USB port of Raspberry Pi Zero/Zero W

10. CP2102: USB TO UART converter

11. PCA9685: servo controller, make it more smoothly to rotate the pan head

12. TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors

13. Servo interface

14. USB indicators

15. USB ports: more USB capability


Examples



Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the package list.


Technical details

Dimensions 220mm x165mm x70mm
Weight G.W 399g
Battery Exclude

Part List

AlphaBot2-PiZero (adapter board) 1
AlphaBot2-Base (base chassis) 1
RPi Camera (B) 1
Ultrasonic sensor 1
Micro SD Card 16GB 1
Power adapter US standard 5V/2.5A USB output 1
SG90 servo 2
2 DOF pan and tilt kit 1
IR remote controller 1
FC-20P cable 8cm 1
Micro USB connector 1
RPi Zero V1.3 Camera Cable 30cm 1
USB type A plug to micro B plug cable 1
AlphaBot2-PiZero screws 1
Screwdriver 1
Micro SD Card Reader 1
