      Energy Shield

      Energy Shield

      SKU 106030000
      $29.90
      6 Available
      $29.90/1pcs+
      $26.91/10pcs+
      $25.41/20pcs+
      $23.92/50pcs+
      ADD TO CART

      Description

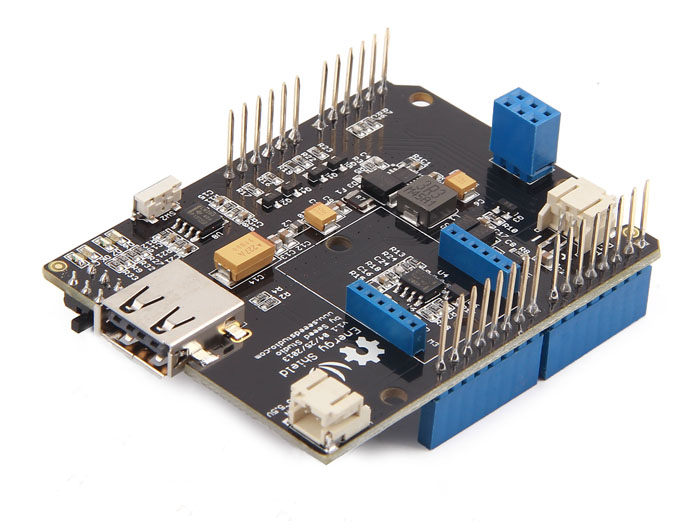

      Energy Shield is a LiPo battery based power shield that keeps your project alive. It keeps its battery charged whenever an available power source exists. It accepts a wide range of power sources, from common solar cells via JST connector and USB via USB port on microcontroller, to 9V and 12V DC adapters via DC Jack on your Arduino. Meanwhile it can not only provide power for your Arduino project, with a standard USB port populated on the shield, it’s also capable of rescuing your mobile electric devices from dying batteries, such as mobile phone, mp3 and tablet.

      Features
      • Accept wide range of power inputs

      • Overvoltage protection

      • 85%+ high power conversion efficiency

      • Comprehensive LEDs indicators for charging and working status



      Documents
      Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to ourforum.

      Technical Details

      Dimensions95mm x 65mm x 25mm
      WeightG.W 40g
      BatteryExclude

      Part List

      Energy Shield1

      Reviews

      Questions and Answers

      SUBMIT
      0

      you can read the manual at http://www.ns-electric.com/dow...

      on Oct 19,2016
      Replyupvote ()
      0

      I was hoping that this shield would be compatible with Arduino Yun.

      on Oct 19,2016
      Replyupvote ()
      <p>Sadly, it is not. Physically. The ethernet port of Arduino Yun is blocking the connection. Or the JST-connector on the shield. Maybe one can raise the headers about 5mm more. Then it should fit.</p>
      on Oct 20,2016 10:47 AM
      Replyupvote ()
      Reply
      0

      You said in a previous questions that A0 Pin is used to detect the voltage of the battery connected to the Energy Shield.
      I tried to read the battery voltaje such as a simple analogRead(), but i obtain about 1V.... What could not be correct at all.<

      on Oct 19,2016
      Replyupvote ()
      <p>Thanks, but could you, please, post a code to obtain accurate measurements of the battery... Because what you say is not real.. i obtained 1.07V, but the battery is full, so it could not be 2V such as you say...<br>I think this is an important issue in
      on Oct 20,2016 10:47 AM
      Replyupvote ()
      Reply
      0

      I would like to know if, when the shield is mounte on an arduino board is it possible to measure the voltaje of the battery and the solar panel voltaje connected to it. If yes, how? Thanks.

      on Oct 19,2016
      Replyupvote ()
      <p>No, i din?t know that! Your wiki say that this board only use Vin and 5V pins... Nothing anywhere about it use the A0 to read the battery level. This is great, and i think you should say that in the wiki too.</p><p>Okay, about the solar panel, it means
      on Oct 20,2016 10:47 AM
      Replyupvote ()
      Reply
      0

      Previously you said any 3.7V Li-po battery yous sold would be ok... but is there enough space between the two rows of blue pins to hold old type of li-po batteries? I have on mind the 6A battery to sold, but for the size (height and width) i think it c

      on Oct 19,2016
      Replyupvote ()
      <p>Okay, may be it could be useful for others: the 3.7V 6000 mAh lipo battery from SeedStudy does not match. I mean, it have about the same size than the shield, so, it is not possible to have the battery ON the shield, between the blue pins to allow to a
      on Oct 20,2016 10:47 AM
      Replyupvote ()
      Reply
      0

      Which battery should I use with this shield?
      Thanks in advance :)

      on Oct 19,2016
      Replyupvote ()
      <p>any 3.7V lithium battery would be OK, such as the <a href="http://www.seeedstudio.com/depot/lithium-ion-polymer-battery-1a-p-593.html?cPath=1_3" rel="nofollow">http://www.seeedstudio.com/dep...</a></p>
      on Oct 20,2016 10:46 AM
      Replyupvote ()
      Reply

        View History

        Energy Shield

        SKU 106030000
        $29.90
        6 Available
        ADD TO CART
        $29.90/1pcs+
        $26.91/10pcs+
        $25.41/20pcs+
        $23.92/50pcs+
