What is GrovePi+ Start kit for Raspberry Pi?

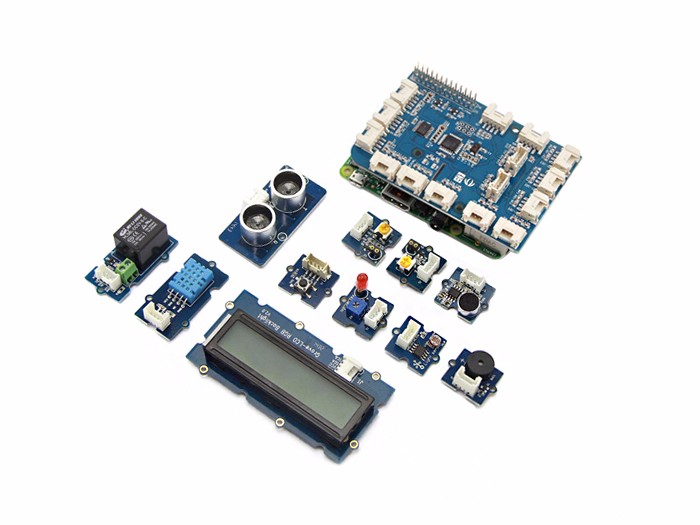

Carrying a GrovePi+ board together with 12 carefully selective Grove sensors with 10 pieces cables , this starter kit gets you up and running with the Raspberry Pi quickly. Just slip the GrovePi+ board over your Raspberry Pi and connect sensors to the board, you're ready to start hardware playing and prototyping with the powerful platform.
About The GrovePi+, It is stacked on top of the Raspberry Pi without the need for any other connections. Communication between the two occurs over the I2C interface. All Grove modules connect to the universal Grove connectors on the GrovePi+ shield via the universal 4 pin connector cable.
About Grove modules, which work on analog and digital signals, connect directly to the ATMEGA328 microcontroller on the Grove Pi+. The microcontroller acts as an interpreter between the Raspberry Pi and the Grove sensors. It sends, receives, and executes commands sent by the RaspberryPi.
The GrovePi+ is compatible with Raspberry Pi A+,B,B+/2,3.
Note: The Raspberry Pi board is not included.
The new GrovePi+ is CE certified and compatible with Linux and Win 10 IoT.
In this project we use the GrovePi with the Grove LED, DHT, light and sound sensor and tweet the value live to the internet. You can use this example to make a live Sensor Twitter Feed powered by the Raspberry Pi and the GrovePi.
In this project, we use a Grove DHT (Digital Humidity and Temperature) sensor as a Raspberry Pi temperature sensor. This project uses a Grove RGB LCD display, connected to the Raspberry Pi, to show the temperature and humidity. You can use this project

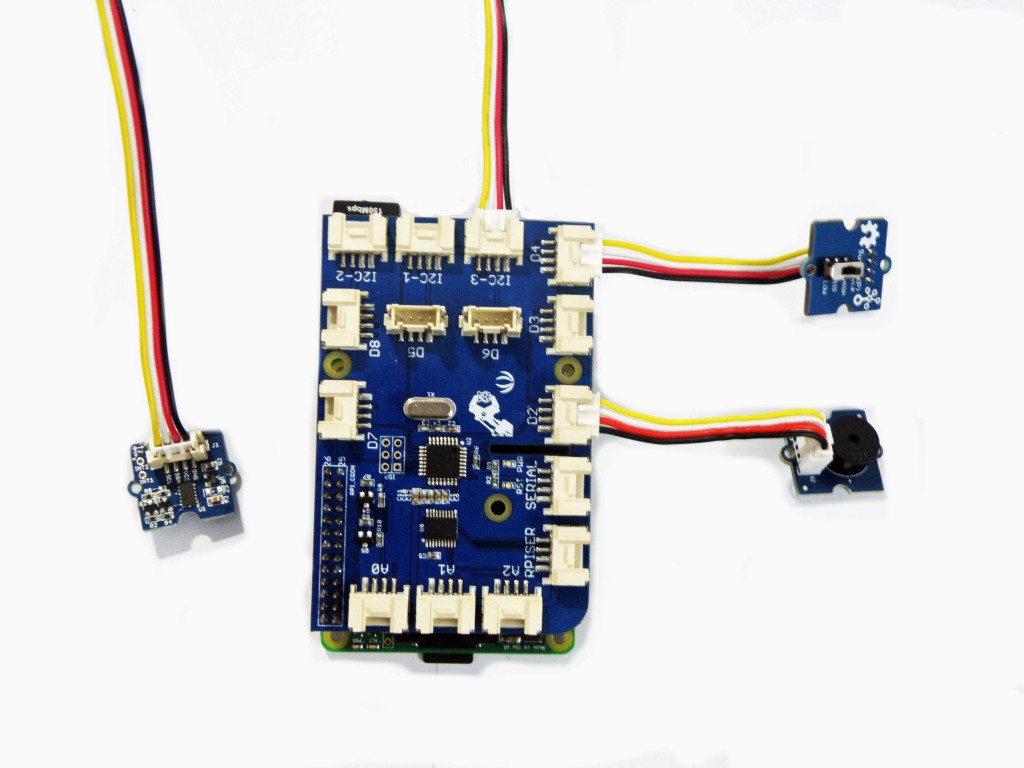

In this project, we connect a Grove Accelerometer and a Buzzer to the Raspberry Pi to determine if the Accelerometer is tilted or not. You might use this project to detect and record motion, or to control a robot. We use a Grove switch to turn the entire

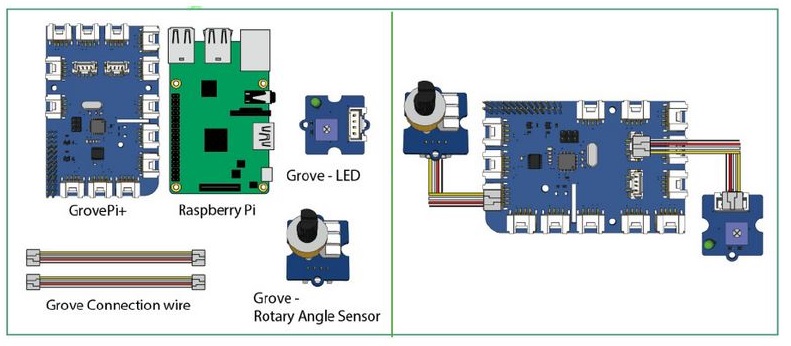

This project shows how to fade a LED with the raspberry pi. We cover the hardware and software setup in which we connect the Grove Pi to a rotary angle sensor (a fancy name for a potentiometer). The Raspberry Pi reads the analog value and dims or fades

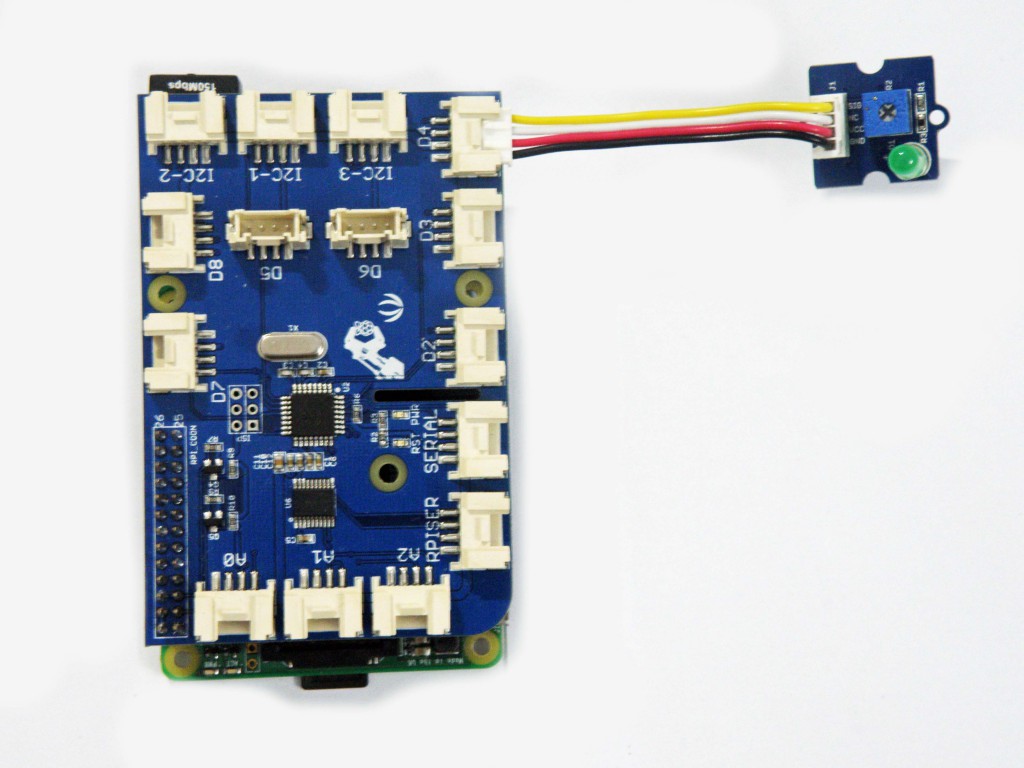

This tutorial shows the simplest thing that you can do with the GrovePi: Blink a LED. This is a great first project to learn how to connect hardware to the Raspberry Pi. The blinking LED is the hardware version of the software world’s “Hello World” pro

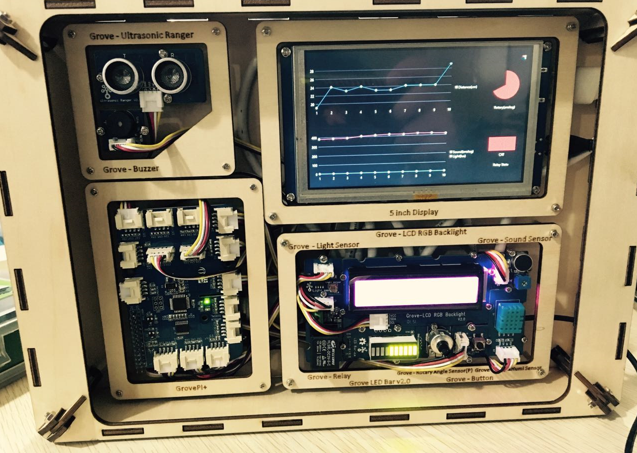

DIY a smart monitoring device based on Win10 IoT
GrovePi+ is a new version of GrovePi.
It adds support for the newly RaspberryPi Model B+ and Model A+.
There are three mounting holes can perfect match all version of Raspberry Pi.
