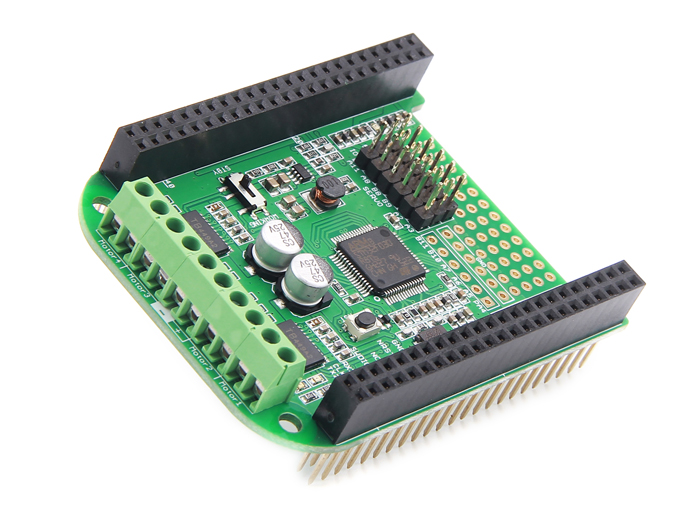

Motor Bridge Cape

SKU 105030006
  • Can drive 4 DC Motors or 2 Stepper Motors
  • Can drive 6 Servos
  • Mbed Platform
  • STM32F0 coprocessor
    $19.00
    5 Available
    Qty:
    This field is required
    ADD TO CART
    $19.00/1pcs+
    $17.10/10pcs+
    $16.15/20pcs+
    $15.20/50pcs+
    Description

    The Motor Bridge Cape features bi-directional motor control using two TB6612FNG integrated dual H-bridge, so it can control two stepper motors or four brushed DC motors with 6~15V DC power and about 1A current draw per motor. The cape provides 5V regulated power to SeeedStudio BeagleBone Green or BeagleBone Black with a max input voltage of 15V. It also has six servo control interface and six expand IO. All the features are provided by the on board STM32F0 coprocessor. The coprocessor can communicate with BeagleBone by I2C or UART interface.


    Features

    • Can drive 4 DC Motors or 2 Stepper Motors

    • Can drive 6 Servos

    • Mbed Platform

    • STM32F0 coprocessor

    • Two TB6612FNG

    • Ÿ6 expand IOs

    • Communicate with BBG by I2C or UART interface


    Specification

    • ŸBattery Input Voltage: 6~15V

    • ŸH-bridge Working Voltage: 6~15V

    • DC/DC 5V output current: 2A max

    • 3V3 output current: 350mA max

    • 4 H-bridge driver,each rated current:1.2A, peak current:3.2A

    • 6 Servo driver, working voltage: 5V, total current is not more than 1.5A

    • Input reverse connect protection

    • ŸOver current protection: 3A one-off quick fuse


    Basic Demo

    Basic Demo

    It is a demo which we connect Motor Bridge Cape with SeeedStudio BeagleBone Green to drive 1 Stepper Motor, 2 DC Motors and 6 Servos at the same time.


    Documents

    Please visit our Wiki page for more information about this product. It will be much appreciated if you can help improve the documents, add more demo codes or tutorials. For technical support, please post your questions to our Forum.

    See More
    $50 Featured List
    $100 Featured List
    $200 Featured List
    Don’t miss out!
    Questions and Answers
    SUBMIT
    0
    will the cape power my beaglebone ?? or do i have to supply 5v seperately to my beaglebone ??
    on Feb 16,2017
    Replyupvote ()

    Hello...the MBC, Motor Bridge Cape, must be powered separately from the BBB/BBG.


    Seth


    P.S. If you want to supply voltage to your BBG/BBB, add a small power pack and use a 12v for the MBC.

    on Feb 17,2017 10:36 AM
    Replyupvote ()
    You are right.
    on Feb 17,2017 10:55 AM
    Replyupvote ()

    Hi Thanks for your inputs. Is this cape compatible with the new beaglebone balck wireless ?? please find the lind attached.

    https://beagleboard.org/black-wireless

    Thanks

    on Feb 17,2017 18:07 PM
    Replyupvote ()

    Hello Mr. Ashwin,


    Seth here. The BBBW is just like the rest. You can program it and it needs power. I do not have the BBBW. I have the BBGW, though and it works fine on it.


    Enjoy,


    Seth


    P.S. Look here: http://wiki.seeed.cc/Motor_Bridge_Cape_v1.0/. Oh and see this info. on BBGW (similar to the BBBW): http://wiki.seeed.cc/BeagleBone_Green_Wireless/.

    on Feb 18,2017 06:54 AM
    Replyupvote ()
    Reply
    0
    Hello. I'm a beginner in the BB world. I would like to stack the Grove Base cape over Motor Bridge cape in a BBGW. Please let me know what I have to do and what I do not have to do in order to have both working and avoid burning the components. Thanks in advance.
    on May 11,2017
    Replyupvote ()

    Hello, please refer to wiki of the board for the guide: http://wiki.seeed.cc/Motor_Bridge_Cape_v1.0/

    Thanks.

    on May 12,2017 10:17 AM
    Replyupvote ()
    Hello...Some pins on the BBB/BBG would be dedicated to specific pins on your Grove Base Cape and the Motor Bridge Cape. You would have to read up on what pins are available and what pins are used. Once you have an idea on what pins are being used for those Capes, this is if those Capes can be stacked without interference of pin usage, you can then deploy software to suit your needs.
    on Jun 02,2017 08:28 AM
    Replyupvote ()
    Reply
