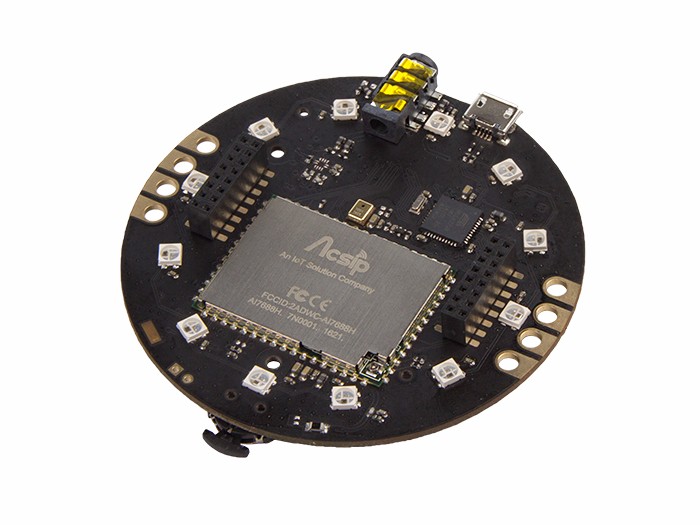

      ReSpeaker Core - Based On MT7688 and OpenWRT
      ReSpeaker Core - Based On MT7688 and OpenWRT
      ReSpeaker Core - Based On MT7688 and OpenWRT
      ReSpeaker Core - Based On MT7688 and OpenWRT
      ReSpeaker Core - Based On MT7688 and OpenWRT
      ReSpeaker Core - Based On MT7688 and OpenWRT
      ReSpeaker Core - Based On MT7688 and OpenWRT

      ReSpeaker Core - Based On MT7688 and OpenWRT

      SKU 102010088
      $69.00
      21 Available
      $62.10/10pcs+
      $58.65/20pcs+
      $55.20/50pcs+
      ADD TO CART

      Description



      ReSpeaker is an open modular voice interface to hack things around you. Let you interact with your home appliances, your plant, your office, your internet-equipped devices or any other things in your daily life, all by your voice.




      It’s a voice-enabled extension for your surroundings

      ReSpeaker supports both online cognitive services and offline lightweight speech recognition engine. You can add ReSpeaker to things around you to make them smart(smarter).



      It’s a device for music streaming

      Voice interface has never been apart from music entertainment, so does ReSpeaker. ReSpeaker supports Airplay/DLNA for wireless music streaming. Just connect ReSpeaker to any ordinary speaker with an AUX cable, then you can start enjoying the music you love without pressing a single button.



      It’s a learning tool for kids

      Rather than the on board MT7688 Wi-Fi module which runs the Linux based OpenWrt, ReSpeaker is also powered by the ATmega32u4 chip and absolutely Arduino compatible, which means, we can use ReSpeaker as a powerful Arduino board and do many ‘Arduino’ things. It’s for learning, it’s for practicing, and it’s for fun.



      Installation-free APP For Everyone

      The exposed PCB design does not mean ReSpeaker is just for people who knows a lot about hardware or software.

      ReSpeaker uses a user-friendly Web-based App that can be set up by anyone in just minutes. In the App you can access a range of rich featured applications that ReSpeaker has provided, includes music streaming, file manager, plug-in, customized settings and more. Click the image below to visit the web app or directly go to: respeaker.io



      Always-growing Features

      The plug-in system is specially designed for the users to share and download their voice interactive projects as a simple plug-in to the ReSpeaker module. It has significantly simplified the use of ReSpeaker as anyone who has a ReSpeaker can install the plug-ins they want with a single click, and after that they can run voice interaction just like any others.



      Developer-friendly

      Developers can of course achieve more with the SDK we provide to develop their own voice interaction projects.




      Modular Design and Extendable Add-ons

      The far-field MIC Array allows your ReSpeaker to be able to recognize your location and hear you from across the room even while the music is playing.

      And the Grove extension board brings even more possibilities as you can connect various Grove sensors and actuators to extend its capabilities. The two onboard expansion headers also offer I2S, I2C, AUX, USB 2.0, GPIOs and many other interfaces that you can use for more applications.







      We make ReSpeaker compatible with the Wio famil for you to add voice interaction with any of your IoT devices that is built on Wio. Simply pair your ReSpeaker to your Wio product using our Web App, then you can voice control your Pet Feeder built to dispense treats, or ask your Smart Plant if she need some water.



      We have demos with step-by-step tutorials to help you getting started with your first project using ReSpeaker.


      Voice Interaction Between You And...








      • AI7688 Wi-Fi Module

        • Operation system: GNU/Linux based OpenWrt

        • Wi-Fi Network: Support Legacy 802.11b/g and HT 802.11n modes

        • Expansion: Two expansion headers for I2C, GPIO and USB 2.0 host

        • Interfaces: Built-in 3.5mm AUX port, Micro USB and SD card slot

      • ATMega32U4 Coprocessor

        • USB CDC virtual serial port for linux console

        • 12 programmable RGB LED indicators

        • 8 on board touch sensors

      • Codec WM8960

        • DAC SNR 98dB (‘A’ weighted), THD -84dB at 48kHz, 3.3V

        • ADC SNR 94dB (‘A’ weighted), THD -82dB at 48kHz, 3.3V

        • Stereo Class D Speaker Driver with 87% efficiency (1W output)

        • On-chip Headphone Driver

        • 40mW output power into 16Ω at 3.3V

        • THD -75dB at 20mW, SNR 90dB with 16Ω load

        • On-chip PLL provides flexible clocking scheme

        • Sample rates: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz

      • Power Supply: 5V DC

      • Dimensions: 70mm diameter

      • Weight: 17g


      Technical Details

      Dimensions148mm x 100mm x 32mm
      WeightG.W 17g
      BatteryExclude

      Part List

      ReSpeaker Core1
      8G Class 10 Micro SD Card1
      200mm micro usb cable1

      Reviews

      Questions and Answers

      SUBMIT
      2
      Where can I get the Meow King Drive Unit, does anybody know that?
      on Nov 16,2016
      Replyupvote ()
      To answer my own question, just found this on the kickstarter page:"1.The Meow King will not be available after the campaign, because it is compatible with ReSpeaker core and mic array. But you can add $60 for the Meow King during the campaign. "Very unfortunate.
      on Nov 16,2016 05:26 AM
      Replyupvote ()
      Hi,Thanks for your interest in ReSpeaker.The Meow King will be available at the end of this month, you can pre-order it at the moment.
      on Nov 17,2016 17:26 PM
      Replyupvote ()
      Thanks, can you point me to the pre order page? I wasn't able to find it. Thanks
      on Nov 29,2016 03:08 AM
      Replyupvote ()
      @jerryyip I also cannot find the pre order page.
      on Dec 27,2016 22:27 PM
      Replyupvote ()
      Does the Meow King available now?
      on Jan 19,2017 13:20 PM
      Replyupvote ()
      Reply
      0
      Where can I get the Meow King Drive Unit, does anybody know that?
      on Jun 06,2017
      Replyupvote ()
