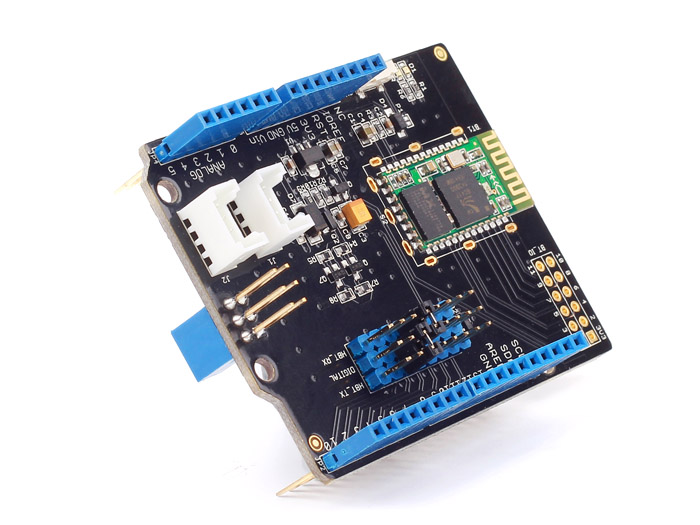

      Bluetooth Shield V2

      Bluetooth Shield V2

      SKU 113030019
      $22.90
      5 Available
      $22.90/1pcs+
      $20.61/10pcs+
      $19.46/20pcs+
      $18.32/50pcs+

        I accept the restriction

      This development board can be only used for prototyping, it cannot be built into a product for commercial distribution. It cannot be re-sold or used as part of a production environment.

      Maximum Qty: 5

      Description

      The Bluetooth Shield integrates a Serial Bluetooth module. It can be easily used with Arduino/Seeedstudio for transparent wireless serial communication.



      Features

      • Seeeduino/Arduino compatible

      • Up to10m communication distance in house without obstacle

      • UART interface (TTL) with programmable baud rate

      • A full set of configuration commands

      • On board PCB Antenna

      • Based on HM-01 Bluetooth module



      Technical Details

      Dimensions100mm x 65mm x 30mm
      WeightG.W 40g
      BatteryExclude
      Power supply Voltage3.3V
      Baudrate9600, 19200, 38400, 57600, 115200, 230400, 460800
      Default Baud rate9600, Data bits: 8, Stop bit: 1, Parity: No parity
      Default PINCODE”1234”
      Bluetooth versionv2.1+EDR

      Part List

      Bluetooth Shield V21

      Reviews

      Questions and Answers

      SUBMIT
      0
      What is the Frequency, Protocol, Tx Power, and Data Rate
      on Feb 16,2018
      Replyupvote ()
      Hi there~ Please refer to the datasheet here ### http://wiki.seeedstudio.com/images/a/ac/Bluetooth_en.pdf ### Regards
      on Feb 19,2018 11:44 AM
      Replyupvote ()
