Grove - Line Finder v1.1

SKU
101020172
Rating:
100% of 100
Rating:
100% of 100
$3.90
In stock
130+ Available
-
+
Qty Discount available
  • $3.60 /10pcs+
  • $3.30 /20pcs+
  • $3.00 /50pcs+

Most of automated robotic projects start from a line-following robot, Grove - Line finder v1.1 is designed to achieve this task easily and quickly. Those eye-like sensors on the board are actually IR emitting LED and sensitive phototransistor. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.


Features

  • Easy to use

  • Integrated indicator LED

  • Digital output

  • Adjustable detecting range.


Specifications

  • Power supply: 5V DC

  • Digital output mode: TTL (High when black is detected, Low when white is detected)

  • Connector: 4 pin Buckled Grove interface

  • Dimension: 20mm*20mm

  • Comparator: LMV358

  • Photo reflective diode: RS-06WD




Technical details

Dimensions 24.2mm x20mm x10.8mm
Weight G.W 8g
Battery Exclude
Power supply 5V DC
Digital output mode TTL (High when black is detected, Low when white is detected)
Connector 4 pin Buckled Grove interface
Comparator MV358
Photo reflective diode RS-06WD

Part List

Grove - Line Finder v1.1 1

ECCN/HTS

ECCN EAR99
HSCODE 9031900090
USHSCODE 9027106000
UPC 841454118855

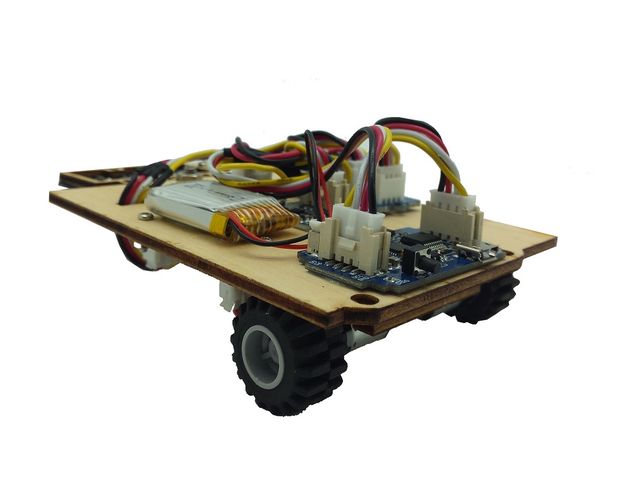

Make a Mini Toy Car With Arduino

A tutorial to teach you making Toy car with Arduino.

Grove - Line Finder

Grove-Line finder is designed for line-following robot. It has an IR emitting LED and an IR sensitive phototransistor. It can output digital signal to a microcontroller so that the robot can reliably follow a black line on white background, or vice versa.
