      Grove - Multichannel Gas Sensor

      Grove - Multichannel Gas Sensor

      SKU 101020088
      $39.90
      36 Available
      $39.90/1pcs+
      $35.91/10pcs+
      $33.91/20pcs+
      $31.92/50pcs+

        I accept the restriction

      This development board can be only used for prototyping, it cannot be built into a product for commercial distribution. It cannot be re-sold or used as part of a production environment.

      Maximum Qty: 5

      Description

      How to choose a gas sensor ?

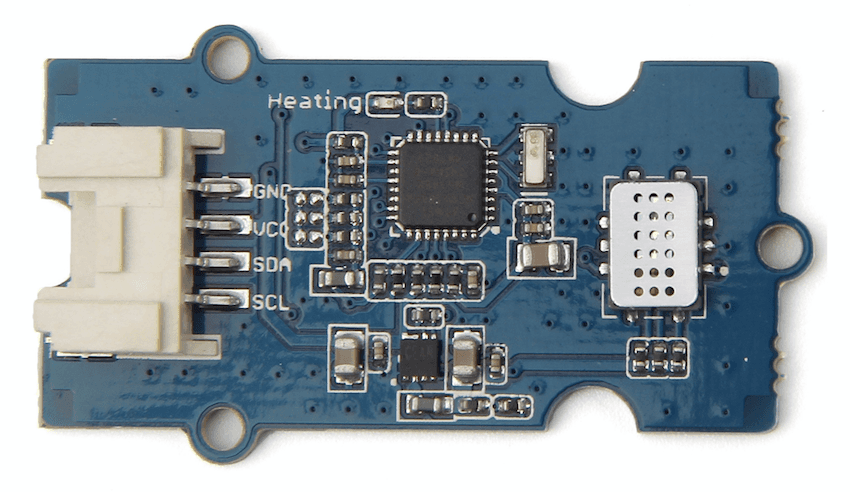

      Grove – Multichannel Gas sensor is a environment detecting sensor with a built in MiCS-6814 which can detect many unhealthful gases, and three gases can be measured simultaneously due to its three channels, so it can help you to monitor the concentration which more than one gas.

      This sensor is belong to Grove system, and you can plug it onto the Base shield and work with Arduino directly without any jumper wires. The interface of it is I2C, so plug it onto the I2C port of Base shield, then you can start to work it.


      Features

      • Three fully independent sensing elements on one package

      • Built with ATmega168PA

      • I2C interface with programmable address

      • Heating power can be shut down for low power

      • Detectable gases:Carbon monoxide (CO) , Nitrogen dioxide (NO2) , Hydrogen (H2) , Ammonia (NH3) , Methane (CH4) , etc.



      Technical Details

      Dimensions89mm x 140mm x 6.8mm
      WeightG.W 7g
      BatteryExclude
      Voltage3.1~ 5.25V
      Ripple(@Max Power)80~100mV
      Max Heating Power88mW
      Max Power150mW
      ADC Precision10Bits
      I2C Rate100kHz
      VIL(@I2C)-0.5~0.99V
      VIH(@I2C)2.31~5.2V

      Part List

      Grove – Multichannel Gas Sensor1
      26AWG Grove Cable1

      Reviews

      Questions and Answers

      SUBMIT
      0
      Hello dear friend!Is it the effective sensor for measure outdoor air quality? Especially have interest in NO2 and CO measuring in public project.Thank you.
      on Apr 30,2018
      Replyupvote ()
      Hi there~ This sensor can meet your needs, you can refer to our wiki and eagle file. Regards.========================================================https://raw.githubusercontent.com/SeeedDocument/Grove-Multichannel_Gas_Sensor/master/res/Grove-Multichannel_Gas_Sensor_v1.0_sch.pdf
      on May 02,2018 16:12 PM
      Replyupvote ()
      Why increase the concentration of CO, C3H8, C4H10, H2 but not only CH4, NH3 or C2H5OH?Without NH4OH or C2H5OH (indoor air)The concentration of NH3 is 0.42 ppmThe concentration of CO is 2.40 ppmThe concentration of NO2 is 0.35 ppmThe concentration of C3H8 is 274.31 ppmThe concentration of C4H10 is 213.89 ppmThe concentration of CH4 is 67.34 ppmThe concentration of H2 is 0.29 ppmThe concentration of C2H5OH is 0.73 ppm///////////////////////////////////////////////With NH4OHThe concentration of NH3 is 2.21 ppmThe concentration of CO is 74.23 ppmThe concentration of NO2 is 0.16 ppmThe concentration of C3H8 is 3380.55 ppmThe concentration of C4H10 is 1804.40 ppmThe concentration of CH4 is 22208746.00 ppmThe concentration of H2 is 54.83 ppmThe concentration of C2H5OH is 67.19 ppm/////////////////////////////////////////////With C2H5OHThe concentration of NH3 is 2.04 ppmThe concentration of CO is 1604.44 ppmThe concentration of NO2 is 0.16 ppmThe concentration of C3H8 is 2986.00 ppmThe concentration of C4H10 is 1623.94 ppmThe concentration of CH4 is ovf ppmThe concentration of H2 is 5981.92 ppmThe concentration of C2H5OH is 3840.37 ppm
      on May 22,2018 21:25 PM
      Replyupvote ()
      Reply
      0
      I see from the wiki page that the Raspberry Pi is not supported, but the sensor has an I2C interface. Whatdoes it mean? It's just a software problem, that someone can solve writing the code?What happen if I attach it to the Raspberry Pi I2C interface?
      on Nov 12,2016
      Replyupvote ()
      Hi,friend! We only provide software library or code examples for Arduino platform in most cases. Hence,if you want to attach it to the Raspberry,you have to write your own software library.
      on Jun 12,2018 16:35 PM
      Replyupvote ()
      Reply
      0
      I used the grove and found that the data was exceeded for example with CH4 measurements up to 2 million ppm but in fact only 800ppm. how to solve this problem.
      on Jun 12,2018
      Replyupvote ()
      Hi,there. In our example test, the returned value is right, so please check the code you have wirte,
      on Jun 12,2018 16:53 PM
      Replyupvote ()
      Reply
      0
      I used the grove and found that the data was exceeded for example with CH4 measurements up to 2 million ppm but in fact only 800ppm. how to solve this problem.thank you
      on Jun 12,2018
      Replyupvote ()
      Hi,there. In our example test, the returned value is right, so please check the code you have wirte, Regards!
      on Jun 12,2018 16:57 PM
      Replyupvote ()
      Reply
      0
      Hello, I am working a project for school and I am using an LCPExpresso board with I2C. Will this work with that? Do I have to have the base shield?
      on Dec 05,2017
      Replyupvote ()
      Hi Nick~Theoretically you can use it with LCPExpresso.However we only privode library for Arduino.I am not sure the Arduino Library is compatible with LPCXpresso IDE.If not you need to write the library yourself.I recommend you use Seeeduino V4.2 with this sensor.It will be simple and easy.Regards
      on Dec 05,2017 10:29 AM
      Replyupvote ()
      Reply
      0
      Is there a way to issue a reset command over I2C? After so many transactions, the onboard micro gets stuck and responds to all requests with the same data. The only ways I've found to restore function is to power cycle or ground the NRST pin on the debug/flash header
      on Aug 08,2017
      Replyupvote ()
      Hi,there. you can use function gas.powerOff() and gas.powerOn() to reset this sensor.Regards!
      on Jun 12,2018 17:26 PM
      Replyupvote ()
      Reply
