      ReSpeaker 2-Mics Pi HAT

      ReSpeaker 2-Mics Pi HAT

      SKU 107100001
      $9.90
      50+ Available
      Ships on
      $9.00/10pcs+
      $8.50/20pcs+
      $8.00/50pcs+
      BACKORDER

      Description

      ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

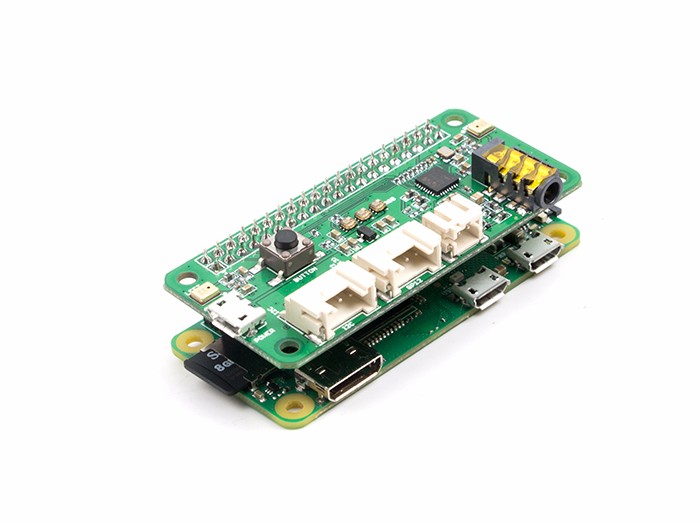

      The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and it also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What is more, 3.5mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.

      Note: This product does not include the Pi Zero board


      Features

      • Raspberry Pi compatible(Support Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2 B and Raspberry Pi 3 B)

      • Dual-Microphones

      • 2 Grove Interfaces: support GPIO and I2C

      • Programmable Button and LED: one button and three LEDs

      • Audio codec onboard

      • Two types audio output socket : 3.5mm Audio Jack, JST2.0 Speaker Out

      • Far field support (up to 3 meters)


      Usage

      1.Get started with Google Assistant

      2.How to use button to trigger Google Assistant



      Documentation

      Please visit our wiki page for more info about this product.It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

      Technical Details

      Dimensions65mm x 30mm x 15mm
      WeightG.W 34g    N.W 12g
      BatteryExclude

      Part List

      ReSpeaker 2-Mics Pi HAT1

      Reviews

      Questions and Answers

      SUBMIT
      1
      It appears this board does not contain the serial EEPROM required for the Raspberry Pi HAT specification. Can you confirm?
      on Jun 09,2017
      Replyupvote ()
      Hi Rich,this board doesn't contain the EEPROM, sorry for confuse of the name with "HAT". We just wanna to show this is the extension board of Raspberry Pi.Enjoy hacking.
      on Jun 09,2017 10:23 AM
      Replyupvote ()
      It seems that many HATs does not have EEPROM. If I'm not mistaken it's optional, and even if it's there it's usually useless.
      on Jun 09,2017 14:31 PM
      Replyupvote ()
      It's not OPTIONAL of HAT's specification,but just useless right now :(
      on Jun 12,2017 09:26 AM
      Replyupvote ()
      SAVE YOUR MONEY! ZERO SUPPORT FROM SEEED.
      on Jul 30,2017 00:56 AM
      Replyupvote ()
      Reply
      1
      release date?
      on Jun 07,2017
      Replyupvote ()
      End of June.
      on Jun 08,2017 10:31 AM
      Replyupvote ()
      The first batch of products has been delivered.
      on Jun 30,2017 15:34 PM
      Replyupvote ()
      Thats not true ... i was ordering one 6/6/217 and the status is still in "not in delivery" Is the new announced date 07/15/2017 for my order from June ? This is not the first time for me delivery at not announced date , this happens now 3 times. Best regards Joachim
      on Jul 03,2017 23:20 PM
      Replyupvote ()
      Reply
      1
      Hi, I use this board on top of the Raspberry PI Zero W, and it can not even run the google-assistant-demo, the error msg is "google.assistant.library.assistant.UnsupportedPlatformError: armv6l is not supported".
      on Aug 06,2017
      Replyupvote ()
      Don't hold your breath. I (and several others) have playback issues with the speed being too fast. ZERO response from Seed forum or Seed itself.
      on Aug 11,2017 09:55 AM
      Replyupvote ()
      The button triggered demo worked for me. I believe there is a limitation of the google-assistant-sdk for running hotwords on zero.My next attempt will be to use a hot word from https://snowboy.kitt.ai/
      on Aug 11,2017 17:37 PM
      Replyupvote ()
      Reply
      1
      Is it correct that using the JST connector for audio out I only get mono sound while using the 3.5mm audio jack I get stereo?
      on Jul 07,2017
      Replyupvote ()
      Both JST connecter and 3.5m audio jack can stream audio output, are support stereo.Did you try ALSA cmd to setting?
      on Jul 07,2017 10:35 AM
      Replyupvote ()
      Xiaobo - you are wrong. There are only two pins on the JST audio connector and stereo would require 4 pins. A quick check of the schematic link shows the JST connector is wired to the right channel; the left channel LP (low power) connections on the WM8960 IC are not connected to anything. Looks like Seeed rushed to get this design out without fully thinking the design through.
      on Jul 15,2017 08:19 AM
      Replyupvote ()
      Reply
      2
      Which pins are used by the HAT ? which are still free ?
      on Jul 13,2017
      Replyupvote ()
      I got the answer from the technical support :It communicates through I2S (Inter-IC Sound) and it uses the pins : GPIO18 (pin 12), GPIO20 (pin 38), GPIO21 (pin 40) and GPIO19 (pin35)
      on Aug 01,2017 15:14 PM
      Replyupvote ()
      Reply
      1
      Do I need to add an audio amplifier between the JST connector and the speaker ? and for the 3,5mm jack ? thanks
      on Jul 13,2017
      Replyupvote ()
      after test : no. It's really loud with a 8ohm 1W speaker
      on Aug 03,2017 23:13 PM
      Replyupvote ()
      Reply
      0
      How many ohm for the speaker's impedance ?
      on Jun 29,2017
      Replyupvote ()
      1W, 8Ohm.
      on Jun 30,2017 15:28 PM
      Replyupvote ()
      Reply
      0
      Do you have any distributors for this in UK? No one else has listed this.
      on Jun 28,2017
      Replyupvote ()
      Oh, you can buy it from Mosuer and Digikey later.
      on Jun 30,2017 15:31 PM
      Replyupvote ()
      Reply
      0
      Hi,Is it compatible with the Raspberry Pi Zero W ?Thank you
      on Jun 25,2017
      Replyupvote ()
      Yes, it does. It compatible with Raspberry Pi 2 or later.
      on Jun 30,2017 15:30 PM
      Replyupvote ()
      Reply
