Seeeduino Ethernet

SKU
102010000
Rating:
83% of 100
5  Reviews Add Your Review
Rating:
83% of 100
5  Reviews Add Your Review
$45.00
In stock
1 Available
-
+
Qty Discount available
  • $40.50 /10pcs+
  • $38.25 /20pcs+
  • $36.00 /50pcs+
GOT QUESTIONS? ASK US
Email

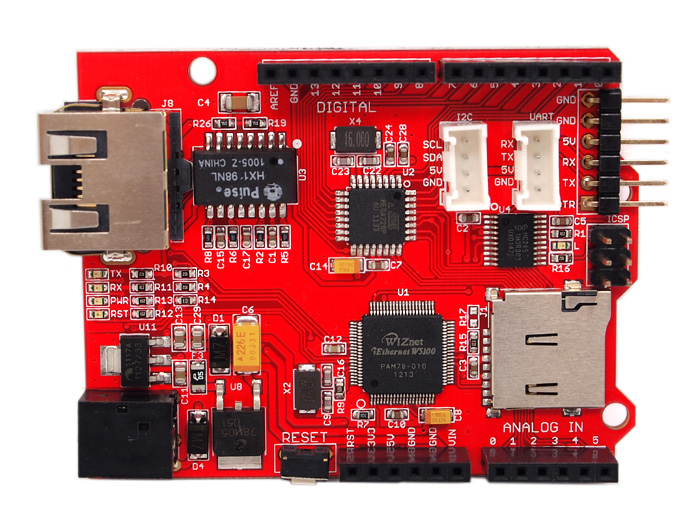

Seeeduino Ethernet is a compact and multifunctional development platform, which merges data logging and processing, device control and Ethernet communication together into one. It's armed with a MEGA328P chip and a Wiz5100: the former provides an Arduino controlling style and the latter provides TCP and UDP Ethernet communication ability. Plus integrated SD card module, it's convenient and neat for remote data logging, processing or transferring via network. It has minimal height RJ45 port and power jack to suit most of existing Arduino Shields. Two Grove ports are included to enable easy extensions of sensors and actuators.
Features

  • Integrating predominant features of Arduino,Ethernet Shield and SD Card Shield

  • Arduino controlling style

  • Standard RJ45 Ethernet jack

  • Indicator LEDs for internet connection

  • Easy to access reset button

  • Support up to 4 TCP/UDP network connections at the same time

  • Support Micro SD card

  • Operating voltage: 7 VDC - 13 VDC (9VDC Recommended)

Technical details

Dimensions 115mm x75mm x30mm
Weight G.W 49g
Battery Exclude

Part List

Seeediuno Ethernet 1

ECCN/HTS

ECCN EAR99
HSCODE 8543909000

Documents

Seeeduino Ethernet

Wiki of Seeeduino Ethernet

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Faqs

Sort by

  • Hi,

    Is possible add RTC shield?

    Thanks
    Question by: admin on 2018-12-18 02:35:07

    Yes,you can.I have done a test,it's ok.

    Answer by: admin on 2018-12-18 02:35:07

  • Hi, does this Ethernet Shield support SNMP? The EtherCard library seems to support SNMP:
    https://github.com/jcw/etherca...

    Question by: admin on 2018-12-18 02:35:07

    Yes , because the Wiz5100 can support SNMP .

    Answer by: admin on 2018-12-18 02:35:07

  • I did try to test Micro SD card with the wiki-example file and get the initialization failed (try with 1GB SD2 and 8GB SDHC). Also test with SdInfo 'SdFat version: 20120327' 1GB:card.init failed, errorCode: 0X1, errorData: 0X1F(0X0 for 8GB). But when I

    Question by: admin on 2018-12-18 02:35:07

    Try to reformat the SD card by the tool that it can be downloaded on : https://www.sdcard.org/downloa...

    Answer by: admin on 2018-12-18 02:35:07

  • Is there a dedicated case for such a board?
    Question by: admin on 2018-12-18 02:35:07

    No , we don't have at present.What case do you want ?

    Answer by: admin on 2018-12-18 02:35:07

  • Does this board or is there a version of this board that supports 802.3af power over ethernet?
    Question by: admin on 2018-12-18 02:35:07

    Hi Dmitriy,this board doesn't support 802.3af POE .It can use a PoE Cable to connect POE .
    http://www.seeedstudio.com/dep...

    Answer by: admin on 2018-12-18 02:35:07

  • I need 250 units. What is your price for this volume?
    Question by: admin on 2018-12-18 02:35:07

    hi Norman, if this quantity, you can contact our channel manager bell@seeedstudio.com .

    Answer by: admin on 2018-12-18 02:35:08

  • Hi, what kind of cable or USB2SERIAL is available for this product ?
    Question by: admin on 2018-12-18 02:35:06

    Hi,you can use UartSBee V4(http://www.seeedstudio.com/dep... with Seeedunio Ethernet.

    Answer by: admin on 2018-12-18 02:35:06

  • Are the input/output pins 5.0V or 3.3V?
    Question by: admin on 2018-12-18 02:35:06

    Hi Stuart Perry.The pins' voltage interface the Ethernet is 5v.

    Answer by: admin on 2018-12-18 02:35:06

  • Do we get special pricing if I need to purchase in bulk?

    Who do I contact?
    Question by: admin on 2018-12-18 02:35:06

    Hi,you can drop a line to order@seeedstudio.com.

    Answer by: admin on 2018-12-18 02:35:06

  • The "Internet of things" requires IPv6, and this board doesn't support it. You should also make an equivalent board with an enc28j60 chip that supports IPv6.
    Question by: admin on 2018-12-18 02:35:06

    Hello, thanks for you feedback, we will consider it in the next version revision of this product.

    Answer by: admin on 2018-12-18 02:35:06

  • Can your Dust sensor be plugged into the grove port on this board or does it need the base shield? Dust sensor says it can only use digital port D8.
    Question by: admin on 2018-12-18 02:35:06

    Hello Trevor Kramer, glad to know you are interested in out products. The Dust sensor can only use at digital port D8, hence, if you want to use it with Seeeduino Ethernet, you have to a get a base shield.

    Answer by: admin on 2018-12-18 02:35:06

  • My question is easy.

    I want to know if i can use this board with GPRS Shield v2.0

    I want to use Ethernet, SD Card and GPRS Shield, and 433 MHz RF Emitter/Receiver all in this board. Can I do this?

    There is a pin conflict? Thank you. S

    Question by: admin on 2018-12-18 02:35:05

    Yes, you can have a try. And you can refer to the wiki of all products , and then you can get a more clearly conclusion. Thanks for your attention.

    Answer by: admin on 2018-12-18 02:35:05

  • Hello,

    I am trying to get my Seeduino Ethernet v0.9b to work with an Arduino USB2Serial in Win8.1. I downloaded this http://arduino.cc/en/Main/USBS... Drivers, Installe

    Question by: admin on 2018-12-18 02:35:05

    Hi, the board of Seeeduino Ethernet is Arduino Duemilanove w/ATmega328 ,and more information you can refer to this wiki : http://www.seeedstudio.com/wik... . Good luck.

    Answer by: admin on 2018-12-18 02:35:05

  • Hi,

    Can I use a FTDI cable (or breakout) to program the board? Thanks!
    Question by: admin on 2018-12-18 02:35:05

    The Seeeduino Ethernet does not have FTDI chip within the board, so need use a AVR programmer or UartSBee to upload program to it.

    Answer by: admin on 2018-12-18 02:35:05

  • Hi, I really love this board! I have encountered two problems:
    - DHCP does not work for me - Ethernet.begin(mac) always fails; fixed IP works OK.
    Do you have any idea how to fix or debug this?
    - My sketch does not start up when I use an exter

    Question by: admin on 2018-12-18 02:35:05

    edit: I accidentally discovered in another network that for DHCP to work, the mac address has to be
    "dead beef feed", or byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
    If I change the mac address, some code works, some dows not.

    Is th

    Answer by: admin on 2018-12-18 02:35:05

  • Hi, I can't find MAC Address of my Seeeduino Ethernet v0.9b, I ordered from Seeeduino . How can I found it ? Thx
    Question by: admin on 2018-12-18 02:35:05

    Hi,the MAC address of seeeduino Ethernet is steady:0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED.

    Answer by: admin on 2018-12-18 02:35:05

  • Because I can't find relative jumper to connect "Seeeduino Ethernet" and "UartSBee V4",
    could I just use "USB 2 Serial COnverter" to upload code from PC to the Arduino board?
    Question by: admin on 2018-12-18 02:35:04

    Maybe you can tell us what other converters you have, so maybe we can have a try if we have it too.

    Answer by: admin on 2018-12-18 02:35:05
  • Hi, I tried to program a Seeeduino Ethernet with a Sparkfun FTDI programmer but I still have an error. I try the same on an Arduino Ethernet and it's ok. Why I can't upload sketch on Seeeduino Ethernet? The configuration is different?
    Question by: admin on 2018-12-18 02:29:45

    Hello, I managed to program this board using the "Seeeduino V3.0" entry from the Seeedstudio arduino board pack. Install this pack using this link as guideline. http://wiki.seeedstudio.com/Seeed_Arduino_Boards/ Found some info in this wiki : http://wiki.seeedstudio.com/Seeeduino_Ethernet/ Hope this helps.

    Answer by: admin on 2018-12-18 02:29:45
