Seeeduino Lotus - ATMega328 Board with Grove Interface

87% of 100
Arduino UNO Compatible On-board Grove connector Micro USB programming port
Out of stock
  • 10+: $15.75
  • 20+: $14.88
  • More
  • 50+: $14.00
  • Less


This version will EOL soon, please click here for the latest version Seeeduino Lotus V1.1, which has updated the USB converter chip so as to be compatible with Mac OS and also more cost effective.

Seeeduino Lotus is an ATmega328 Microcontroller development board. It is a combination of Seeeduino and Base Shield. It uses Atmel ATMEGA328P-MU and CH340. ATMEGA328P-MU is a high performance, low power 8-Bit AVR Microcontroller. CH340 is an USB bus converter chip that can realize an USB to serial interface. Seeeduino Lotus has 14 digital input/output (6 of which can output PWM) and 7 analog input/output, a micro USB connection, an ICSP header, 12 Grove connections, a reset button.


  • Microcontroller: ATmega328P-MU

  • Operating Voltage: 5V

  • Digital I/O Pins: 14

  • PWM Channels: 6

  • Analog Input Channels: 7

  • DC Current per I/O Pin: 40 mA

  • Flash Memory: 32 KB (ATmega328P-MU)

  • RAM: 2 KB (ATmega328P-MU)

  • EEPROM: 1 KB (ATmega328P-MU)

  • Clock Speed: 16 MHz

Technical details

Dimensions 115mm x75mm x25mm
Weight G.W 42g
Battery Exclude

Part List

Seeeduino Lotus 1



I made the simplest automatic non-contact switch on Arduino in order to avoid bacterial and virus transmission when using public dispenser.
Is there an instant in which you want time to go backwards? Look closely at the water droplet. Is it dripping down or going up?
When you knock on the door or close to the door, the door will open automatically.
welcome to the second recipe on how to use arduino starter kit with LabVIEW and create a GUI based applications. This video explains on how to control an Ac appliance from a LabVIEW window by creating an virtual switch which allow the user to turn on a

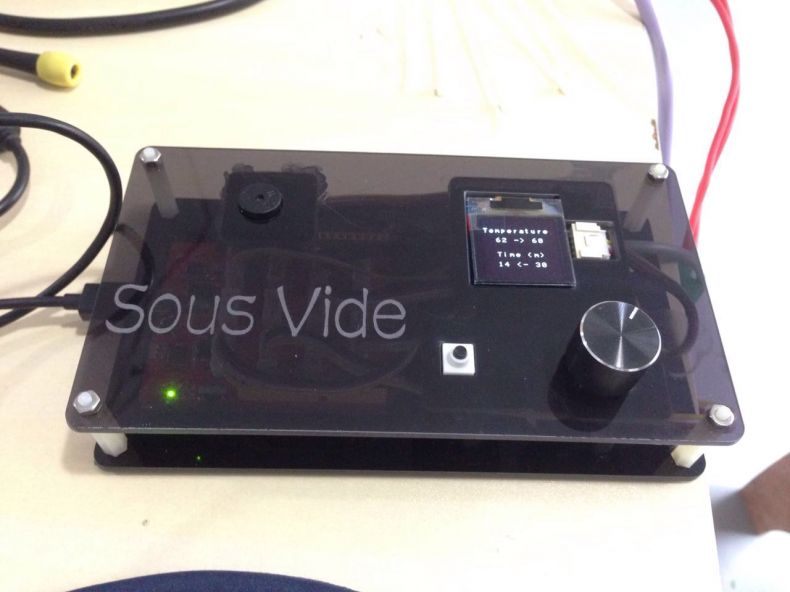

As a foodie, I have always longed for some sous vide dishes. However I haven’t got a chance to try it yet. [Sous vide (/suːˈviːd/) comes from French, means "under vacuum", a method of cooking in which food is sealed in airtight then placed in a

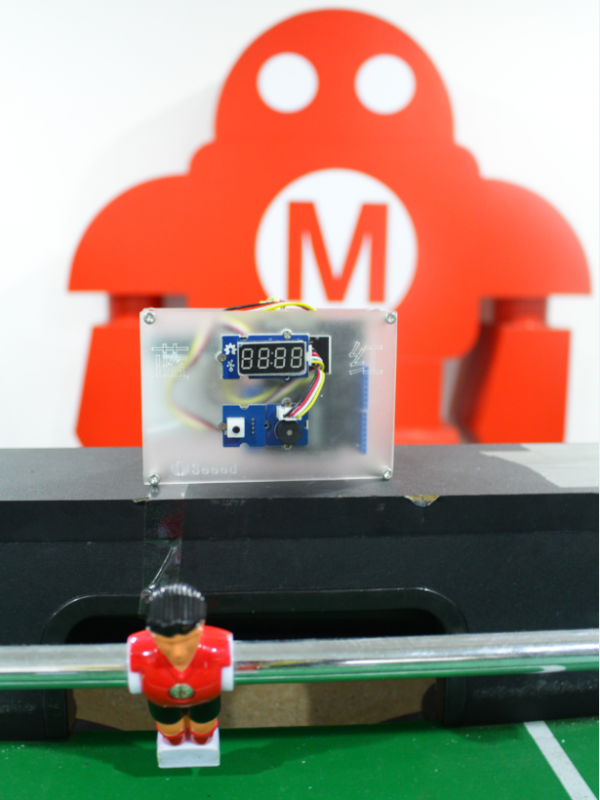

This is an very intersting DIY project if you want to make an indicator for score counting of any game.
I'm a starter of Raspberry Pi and I found that Raspberry Pi doesn’t have the usb port that could directly connect to the pc, so that I pick a Seeeduino as an Uart to Usb converter to putty up my Pi. :p

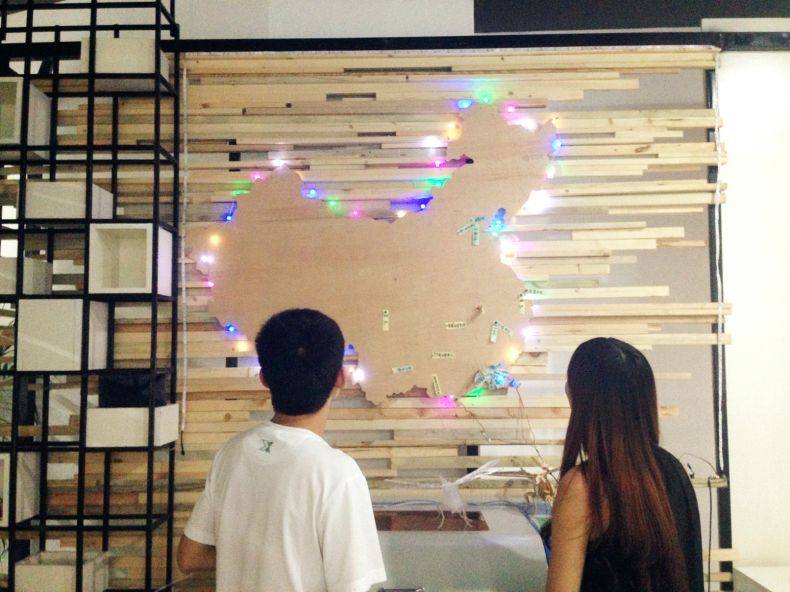

In Seeed's display corner, we have made a charming map of China, telling about the maker spaces in different provinces. This LED light will turn on when people come in front, and automatically turn off after people leave. A small interaction project with
